ASUS 90-QB601AN1N0N1MA0-R GX-D1051 5-Port Gigabit Switch - Certified Refurbished
Description
ASUS 90-QB601AN1N0N1MA0-R GX-D1051 5-Port Gigabit Switch with VIP Port - Certified Refurbished
Description

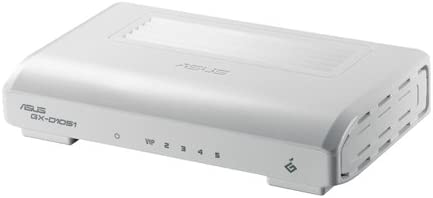

Asus GX-D1051 is a full-featured 5-port Gigabit Ethernet Switch that provides Ethernet direct connection to local area network or individual PC with built-in 5-port switch. Advanced single-chip solution with complete set of industry standard features for high-speed Internet access. GX-D1051 offers easy installation and cost-effective connection for corporate, SOHO and residential users.
Features
- Green Network Technology: Link Down Mode, Cable Length Detection,
- 5 x RJ-45 10/100/1000 Mbps Ethernet ports
- Complies with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T) standards
- Supports IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
- IEEE 802.1p QoS Prioritization
- Supports automatic address learning and address aging
Specifications
| NETWORKING | |
| MAC Address Table Size | 8K entries |
| Subcategory | network hubs and switches |
| Subtype | Gigabit Ethernet |
| Form Factor | desktop |
| Type | Switch |
| Features | 1000KB packet buffer, Energy Efficient Ethernet, VIP ports, flow control, store and forward |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Jumbo Frame Support | 9.2KB |
| Ports Qty | 5 |
| Manageable | No |
| GENERAL | |
| Ports | 5 x 10/100/1000 |
| Performance | Forwarding performance: 1488000 pps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9.2KB |
| Manufacturer | Asus |
| MISCELLANEOUS | |
| Compliant Standards | C-Tick, FCC, IC, TUV |
| ENVIRONMENTAL PARAMETERS | |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| HEADER | |
| Brand | ASUS |
| Product Line | ASUS |
| Model | GX-D1051 V2 |
| Packaged Quantity | 1 |
| Compatibility | PC |
| INTERFACE PROVIDED | |
| Qty | 5 |
| POWER DEVICE | |
| Type | external power adapter |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 50 - 60 Hz |
| PORTS | |
| Type | 10/100/1000 |
| Qty | 5 |
| PERFORMANCE | |
| Type | forwarding performance |
| Value | 1488000 pps |
| DIMENSIONS & WEIGHT | |
| Width | 3.8 in |
| Depth | 6.2 in |
| Height | 1.2 in |
| Weight | 6.38 oz |
