ASUS 90-QB604AN1N0N1MA0-R GX-D1051/V3 Desktop Switch - Certified Refurbished
Description
ASUS 90-QB604AN1N0N1MA0-R GX-D1051/V3 5-Port 10/100/1000Mbps Desktop Switch with Green Network - Certified Refurbished
Description
The 5-Port Desktop Switch with Green Network (Version 3) from Asus is a networking tool for your home or small office network. This switch features five Gigabit Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. Of these ports, one, the "VIP" port, allows you to prioritize more important or latency-sensitive traffic for applications like VoIP or gaming. The switch also features a Green network power-saving feature whereby a specific port will go into standby mode if a computer connected to that port is turned off, reducing energy consumption by up to 60%. The switch is also fan less so it operates quietly in the background.
Features
- 3az Energy Efficient Ethernet
- Total of 5 Gigabit Ethernet Ports
- Designated VIP Port for Priority Traffic
- Supports Full & Half Duplex Modes

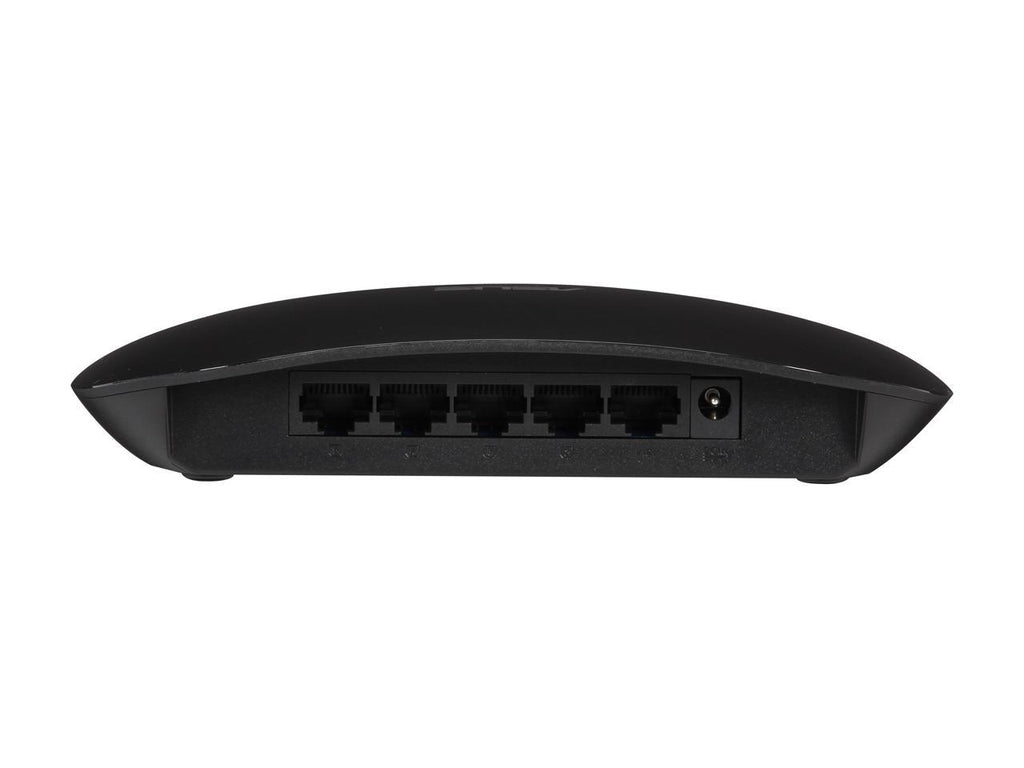

- This switch features five speedy Gigabit Ethernet ports for connecting your computer or other devices within your LAN
- Once you connect a device up to the "VIP" port, that port will prioritize more important or latency-sensitive traffic for applications like VoIP or gaming
- Designed to save power, this green network switch will automatically put specific ports in standby mode if a computer connected to that port is turned off. It will also reduce the amount of power transmitted when smaller cables are connected, providing only the necessary amount
- The switch utilizes IEEE 802.3x flow control when needed in Full Duplex mode
- The switch supports back pressure in Half Duplex mode so as to prevent overflows of traffic
- The switch supports Full and Half Duplex modes when transmitting data at 10Mb/s, or 100Mb/s speeds
- The switch supports Full Duplex mode when transmitting data at 2000Mb/s speed
- The switch supports full wire speed reception and transmission
- The switch supports store-and-forward operation
- The switch supports 2K MAC Address Table
- The switch supports 2048K bits of packet buffer memory
- The switch supports up to 9KB Jumbo Frames
- Supports auto-detection for MDI/MD-X
Specifications
| Performance | |
| Ports | 5x RJ-45 for 10/100/1000 Mbps Ethernet ports |
| LAN1 default VIP, Top Priority Port | |
| Data Transfer | Speeds: 10Mbps, 100Mbps, and 1000Mbps |
| Protocol | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3az Energy Efficient Ethernet | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1p Priority Queuing | |
| Maximum Forwarding Rate | 10Mbps: 14,880pps/14,880pps |
| 100Mbps: 148,800pps/148,800pps | |
| 1000Mbps: 1,488,000pps/1,488,000pps | |
| Performance | |
| Forward Rate: (10 Mb/s port): 14,800 packets/s | |
| (100 Mb/s port): 148,800 packets/s | |
| (1000 Mb/s port): 1,488,000 packets/s | |
| Switch fabric: 10 Gb/s | |
| Buffer Memory: 2048 Kbits | |
| Jumbo Frame: up to 9 KB | |
| MAC Address Table Size | UP to 2K |
| Switch Fabric | 10 Gb/s |
| Buffer | 2048 Kbits |
| Transmission | Transmission Method: Store-and-Forward |
| Data Rate | Ethernet: 10Mbps (half-duplex) |
| Ethernet: 20 Mb/s (full-duplex) | |
| Fast Ethernet: 100 Mb/s (half-duplex) | |
| Fast Ethernet: 200 Mb/s (full-duplex) | |
| Gigabit Ethernet: 2000 Mb/s (full-duplex) | |
| General | |
| System Requirements | Not specified by the manufacturer |
| Regulations (EMC) | FCC |
| CE | |
| BSMI | |
| Safety | CE-LVD |
| BSMI | |
| Environmental Requirements | Operating Temperature: 32 to 104°F / 0 to 40°C |
| Storage Temperature: -4 to 158°F / -20 to 70°C | |
| Operating Humidity: 10 to 90% (non-condensing) | |
| Storage Humidity: 5 to 90% (non-condensing) | |
| Power Requirements | DC 5 V/1 A switching adapter |
| Power Consumption | 3.28 W max |
| Dimensions (LxWxH) | 6.50 x 4.06 x 1.34" / 16.5 x 10.3 x 3.40 cm |
| Weight | 0.40 lb (0.18 kg) |
| Packaging Info | |
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 9 x 5.9 x 3.9" |
