ASUS 90-QB613AN1N0N1MA0-R GX-D1081/V2 Gigabit Green Switch Certified Refurbished
Description

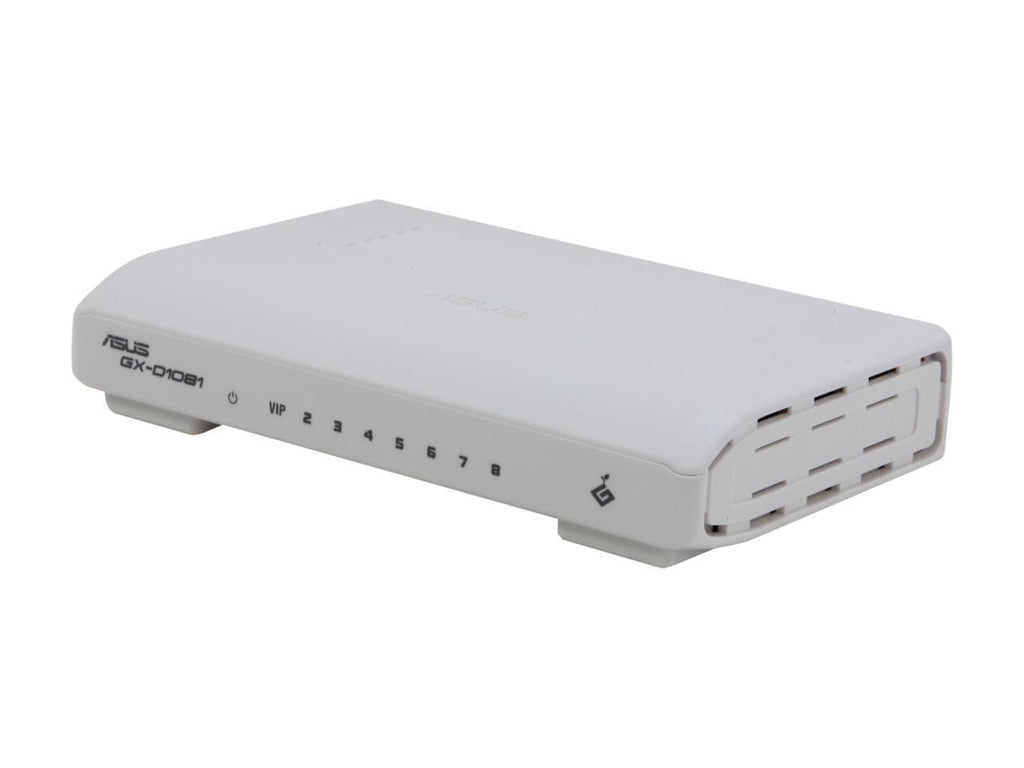

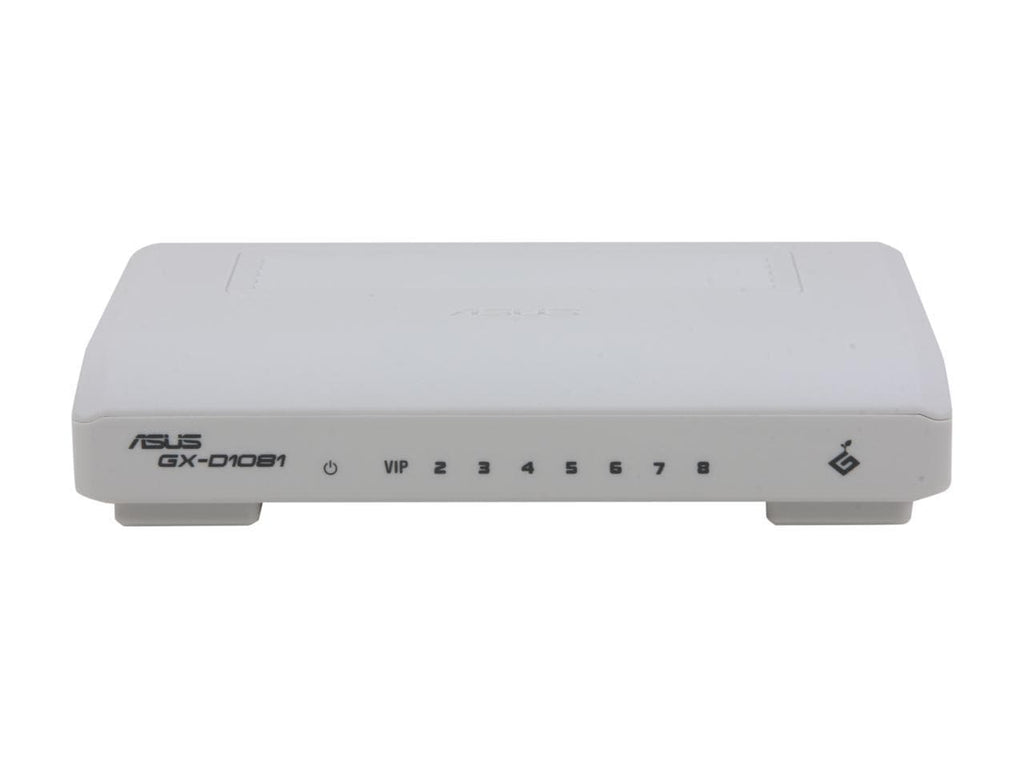

ASUS 90-QB613AN1N0N1MA0-R GX-D1081/V2 8-Port Gigabit Green Switch and VIP Port - Certified Refurbished
Description
The 8-Port Power-Saving Gigabit Ethernet Switch from Asus is a networking tool that's an affordable and efficient solution for your home or small office network. This switch features eight speedy Gigabit Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. Of these ports, one, the "VIP" port, allows you to prioritize more important or latency-sensitive traffic for applications like VoIP or gaming. The switch also features a power-saving feature whereby a specific port will go into standby mode if a computer connected to that port is turned off. Because the switch is also fanless, it operates quietly in the background. If you need a Gigabit switch at a bargain of a price for your home or especially your small office network, check out this one from Asus.
Features
- Total of 8 Speedy Gigabit Ethernet Ports
- Designated Port for Important Traffic
- Supports Full & Half Duplex Modes
- Built-in Power-Saving
- This switch features eight speedy Gigabit Ethernet ports for connecting your computer or other devices within your LAN
- Once you connect a device up to the "VIP" port, that port will prioritize more important or latency-sensitive traffic for applications like VoIP or gaming. The port ensures that 80% data is transferred to this port first
- Designed to save power, this green network switch will automatically put specific ports in standby mode if a computer connected to that port is turned off. It will also reduce the amount of power transmitted when smaller cables are connected, providing only the necessary amount
- The switch utilizes IEEE 802.3x flow control when needed in Full Duplex mode
- The switch supports back pressure in Half Duplex mode so as to prevent overflows of traffic
- The switch supports Full and Half Duplex modes when transmitting data at 10Mbps or 100Mbps speeds
- The switch also supports Full Duplex mode when transmitting data at 1000Mbps speed
- The switch supports full wire speed reception and transmission
- The switch supports store-and-forward operation
- The switch supports 4K MAC Address Table
- The switch supports 104KB bits of packet buffer memory
- The switch supports up to 16KB Jumbo Frames
- Supports auto-detection for MDI/MD-X
Specifications
Performance | |

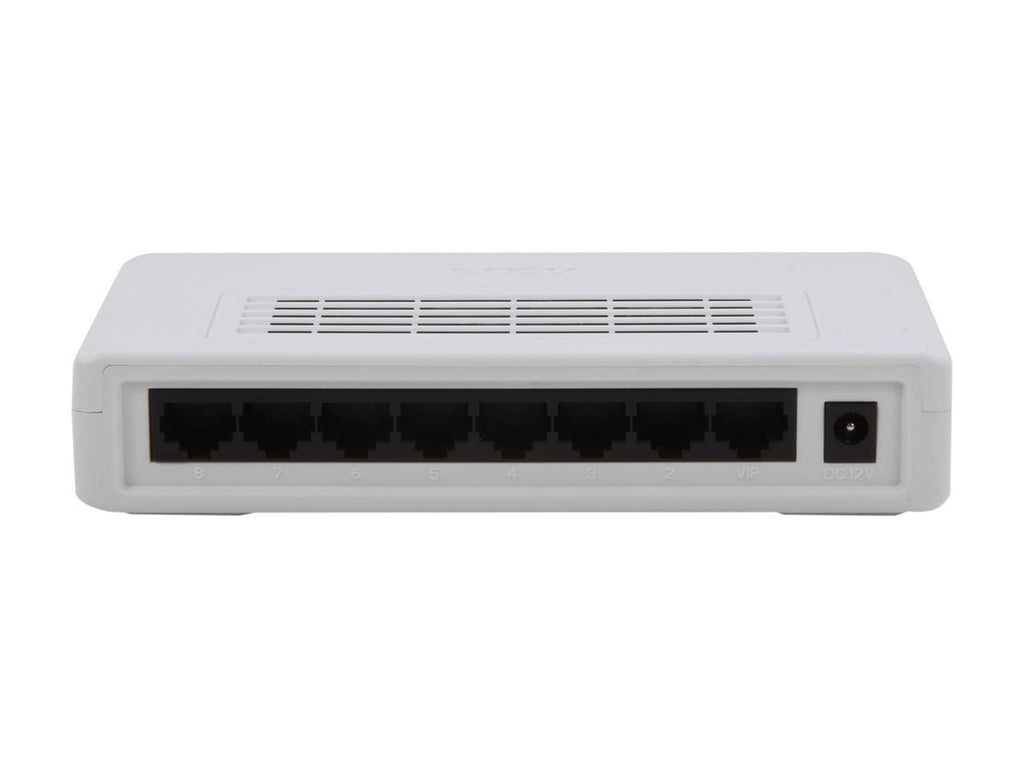

Ports | 8x RJ-45 for 10/100/1000Mbps Ethernet ports |
Data Transfer | Speeds: 10Mbps, 100Mbps, and 1000Mbps |
Protocol | IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX | |
IEEE 802.3ab 1000Base-T | |
IEEE 802.3x Flow Control | |
Maximum Forwarding Rate | 10Mbps: 14,880pps/14,880pps |
100Mbps: 148,800pps/148,800pps | |
1000Mbps: 1,488,000pps/1,488,000pps | |
Performance | 1K MAC address table with automatic learning and aging |
Switch Fabric Capacity: 1.0 Gbps | |
Buffer Memory: 348bits | |
MAC Address Table Size | 4K |
Switch Fabric | 16Gbps (2Gbps per port in full duplex mode) |
Buffer | 1M bits |
Transmission | Transmission Method: Store-and-Forward |
Cable | RJ-45(10Base-T): UTP Category 3, 4, 5 |
RJ-45(100Base-TX): UTP Category 5 | |
RJ-45(1000Base-T): UTP Category 5, 6 | |
General | |
System Requirements | Not specified by the manufacturer |
Regulations (EMC) | FCC Part 15 Class B |
CE Mark | |
C-Tick | |
PCT | |
Environmental Requirements | Operating Temperature: 32° to 104°F / 0° to 40°C |
Storage Temperature: 32° to 158°F / 0° to 70°C | |
Operating Humidity: 10% - 90% (non-condensing) | |
Power Consumption | 7.5W (with Adapter) |
Power Requirements | DC 12V/1A switching adapter |
Dimensions (LxWxH) | 6.22 x 3.85 x 1.18" / 15.8 x 9.8 x 3 cm |
Weight | 9.17 oz / 260 g |
Packaging Info | |
Box Dimensions (LxWxH) | 8.6 x 5.8 x 4.1" |
