ASUS 90-QB614AN1N0N1MA0-R GX-D1081/V3 Ethernet Switch - Certified Refurbished
Description
ASUS 90-QB614AN1N0N1MA0-R GX-D1081/V3 8-Port Energy Efficient Ethernet Switch - Certified Refurbished
Description

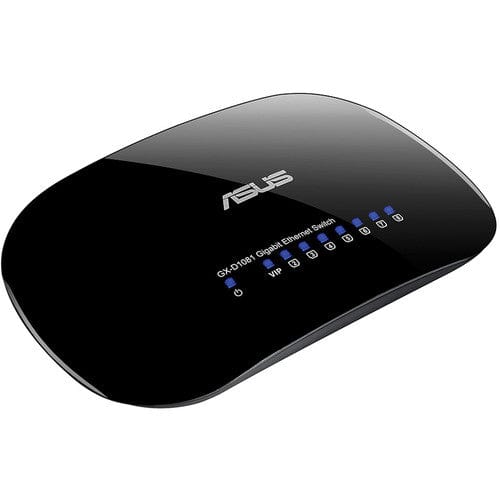

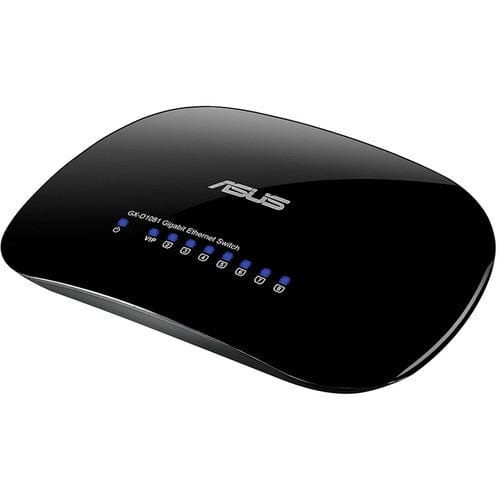

The GX-D1081 V3 8-Port Gigabit Ethernet Desktop Switch with Green Network Support from ASUS has embedded 802.3az energy-efficient Ethernet that allows the user to conserve energy and still enjoy a lag free network. It also has a top priority VIP port that contains the highest priority queue occupancy, ensuring 70% data is transferred there first. This Gigabit switch provides a seamless solution for high-speed, and power-reduction, thereby benefiting Home/SOHO networking.
Features
- Easy Setup: No software needed
- Top Priority VIP port: Built-in VIP Ports prioritizing voice data traffic
- Green Network (802.3az EEE): Energy conservation through link down standby mode
Easy Setup
No software needed for configuration-which makes installations easy and fast
Top Priority VIP Port
Built-in VIP port facilitate lag-free VoIP transmissions by prioritizing voice data traffic
Green Network (802.3az EEE)
If the PC that connects to the ASUS GX-D1081 V3's LAN port is turned off, the switch will automatically put the specific port into standby mode, thus, achieving power savings up to 70%
VIP Port, High Priority Outgoing Packets are Sent Without Delay
When an insufficient bandwidth causes a queue for outgoing traffic, the ASUS GX-D1081 V3's built-in VIP LAN port ensures that high priority packets, such as a VoIP's RTP and Gaming stream, are sent without delay
Unmanaged Switch Home/SOHO Solution
This is an unmanaged switch for Home/SOHO solution
Specifications
| Basic Specifications | |

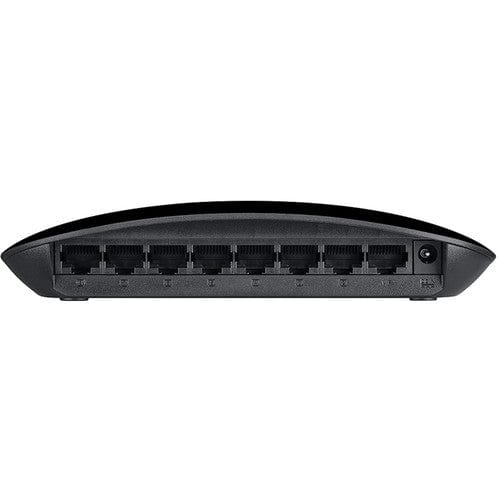

| Port | Port Attributes: RJ-45 for 8 x 10/100/1000 Mb/s Ethernet ports |
| LAN1 default VIP, top priority port | |
| Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3az Energy Efficient Ethernet | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1p Priority Queuing | |
| Performance | |
| MAC | MAC Address: Up to 9 K |
| Forwarding/Filtering Rate | 10 Mb/s Port: 14,800 packets/sec |
| 100 Mb/s Port: 148,800 packets/sec | |
| 1000 Mb/s Port: 1,488,000 packets/sec | |
| Switch Fabric | 16 Gb/s |
| Buffer Memory | 128 KB |
| Jumbo Frames | Up to 9 KB |
| LED Indicator | Power LED and link / activity indicators for per port |
| Data Rate | Ethernet: 10 Mb/s (half-duplex) |
| Ethernet: 20 Mb/s (full-duplex) | |
| Fast Ethernet: 100 Mb/s (half-duplex) | |
| Fast Ethernet: 200 Mb/s (full-duplex) | |
| Gigabit Ethernet: 2000 Mb/s (full-duplex) | |
| Transmission Method | Store-and-forward |
| Power Supply | External Adapter: 5 VDC / 1 A switching adaptor |
| Power Consumption: 5.07 W maximum | |
| Environmental | |
| Temperature | Operating Temperature: 0 to 40°C (32 to 104ºF) |
| Storage Temperature: -20 to 70°C (-4 to 158°F) | |
| Humidity | Operating Humidity: 10 to 90% (non-condensing) |
| Storage Humidity: 5 to 90% (non-condensing) | |
| Safety | CE-LVD / BSMI |
| EMC Certification | FCC / CE / C-Tick / BSMI |
| Dimensions (W x D x H) | 6.50 x 4.05 x 1.33" / 15.5 x 10.3 x 3.4 cm |
| Weight | 0.48 lb (0.22 kg) |
| Packaging Info | |
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 8.7 x 5.9 x 4" |
