CyberPower CP600LCD-R 600VA/340W Intelligent LCD UPS System - New Battery Certified Refurbished
Description
CyberPower CP600LCD-R 600VA/340W Intelligent LCD UPS System - Certified Refurbished
Description
The CP600LCD Intelligent LCD Uninterruptible Power Supply from CyberPower comes equipped with a capacity of 600VA / 340W that delivers power for up to eight electronic devices and helps to safeguard mid- to high-end computer systems against surges/spikes and offers battery backup in the event of brownouts or blackouts. Furthermore, it has integrated EMI/RFI filters. The intelligent multifunction LCD panel also displays real-time UPS vitals for ease of control.
This compact desktop power supply offers eight NEMA 5-15R outlets that are capable of absorbing up to 1,030 Joules for keeping your devices safe against surges and spikes. To keep your devices powered during power outages, four of the outlets deliver power via a 12V / 7Ah lead-acid sealed battery for critical loads. In addition to the power outlets, other connections offered are USB type B, cable/coax (RG6), RJ-11, and RJ-45.
This power supply is ENERGY STAR qualified and operates for up to two minutes with a full load and up to 13 minutes with a half load. Included with the power supply is the PowerPanel Personal edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to help ensure it is working properly. When a power outage does occur, this software automatically closes computer files and shuts down your system. This UPS is also protected by a limited 3-year warranty and offers a $175,000 Connected Equipment Guarantee.
Features
- 600VA / 340W Simulated Sine Wave UPS
- 12V / 7Ah Battery
- Standby Topology
- 8 Outlets / USB Port

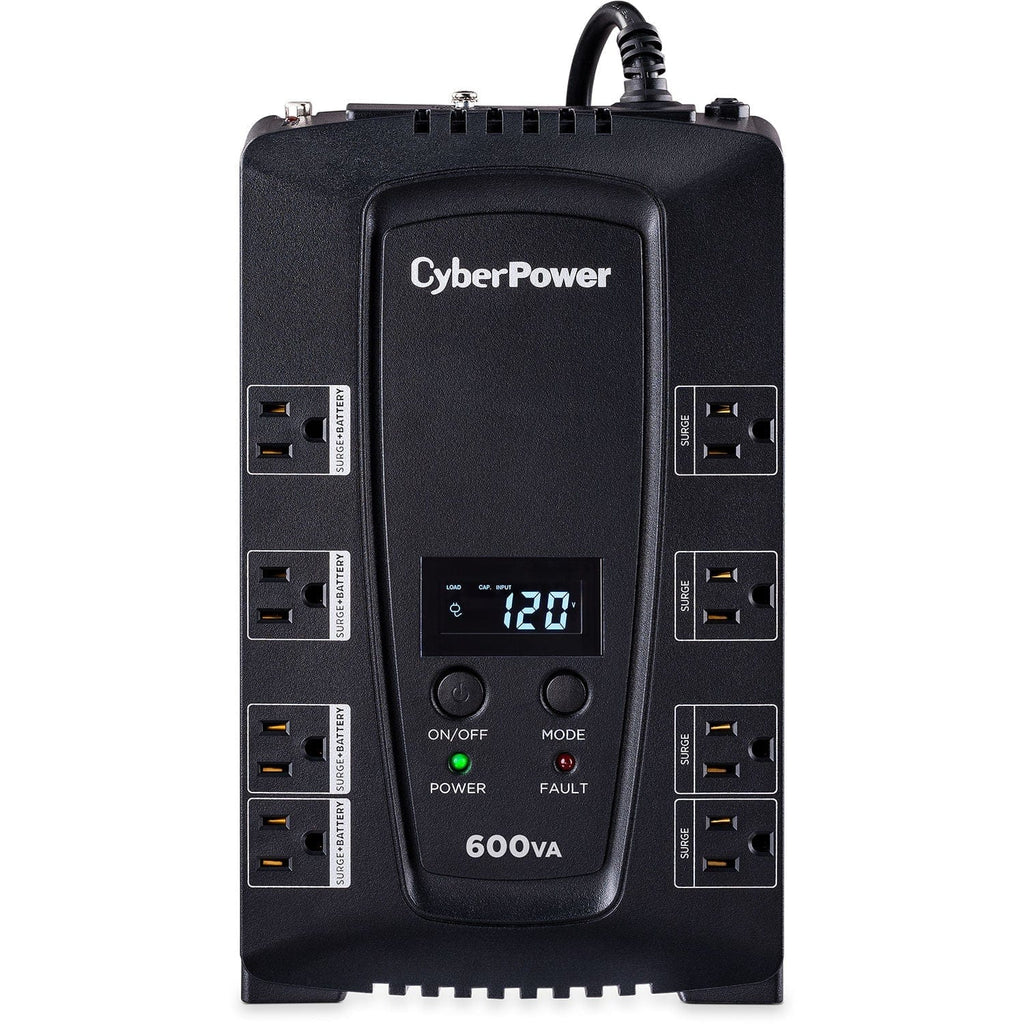

Intelligent Multifunction LCD Diagnostic Display
The front panel displays nine different UPS vitals: input voltage level, output voltage level, battery capacity, runtime estimate, load capacity, normal mode, battery mode, overload, and silent mode
EMI/RFI Filters
Shielding against electromagnetic interference and radio frequency signals helps prevent line noise ("humming") over telephone lines or audio systems
Transformer-Spaced Outlets
Widely-spaced outlets help accommodate large transformer-based plugs without compromising the utility of other outlets
USB Connectivity
HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS
Audible Alarms
Distinctive tones help identify when the unit is running on battery power, if it is overloaded, or when the battery is low
Resettable Circuit Breaker
The user may use this unit reset switch in case of an overload
PowerPanel Personal Edition
In event of a power outage, PowerPanel PE saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
Technical Support
CyberPower will assist users with any product, installation, or warranty concerns - free of charge
ISO & Safety Certifications
All CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the FCC, cUL, and UL
Windows Compatible
Our PowerPanel power management software has been fully tested and is compatible with 32 and 64-bit editions Windows 8, 7, Vista, and XP. It is also compatible with Windows 2003, 2000, Server 2012, Server 2008
Specifications
| General | |
| Total Outlets | 8 x NEMA 5-15R (4 Transformer-Sized) |
| Protected Outlets | 4 x NEMA 5-15R (Battery and Surge) |
| 4 x NEMA 5-15R (Surge Only) | |
| Plug Type | NEMA 5-15P Offset Right-Angle |
| Data Line Protection | RJ11 |
| Communications | USB via Type-B |
| Transfer Time | 4 ms |
| Power | |
| Surge Energy Rating | 1030 Joules |
| Maximum Wattage | 340 W |
| Input Voltage Adjustable Range | 100 to 140 VAC |
| Input Frequency | 60 Hz ± 3 Hz |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 60 Hz ± 1% |
| Load Capacity | 600 VA |
| Waveform | Simulated Sine Wave |
| Battery | |
| Cells | 1 |
| Battery Capacity | 84 VAh |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 2 Minutes |
| Half-Load Runtime | 13 Minutes |
| Charging Time | 8 Hours |
| User Replaceable | Yes |
| Replacement Battery | RB1270B |
| Environmental | |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | 0 to 95% |
| Certifications | RoHS, as per Manufacturer |
| Physical | |
| Cable Length | 6' / 1.8 m |
| Rackmount Size | None |
| Dimensions (W x H x D) | 11 x 6.5 x 3.5" / 279.4 x 165.1 x 88.9 mm |
| Weight | 14 lb / 6.4 kg |
| Packaging Info | |
| Package Weight | 11.665 lb |
| Box Dimensions (LxWxH) | 14.7 x 9.95 x 5.2" |
