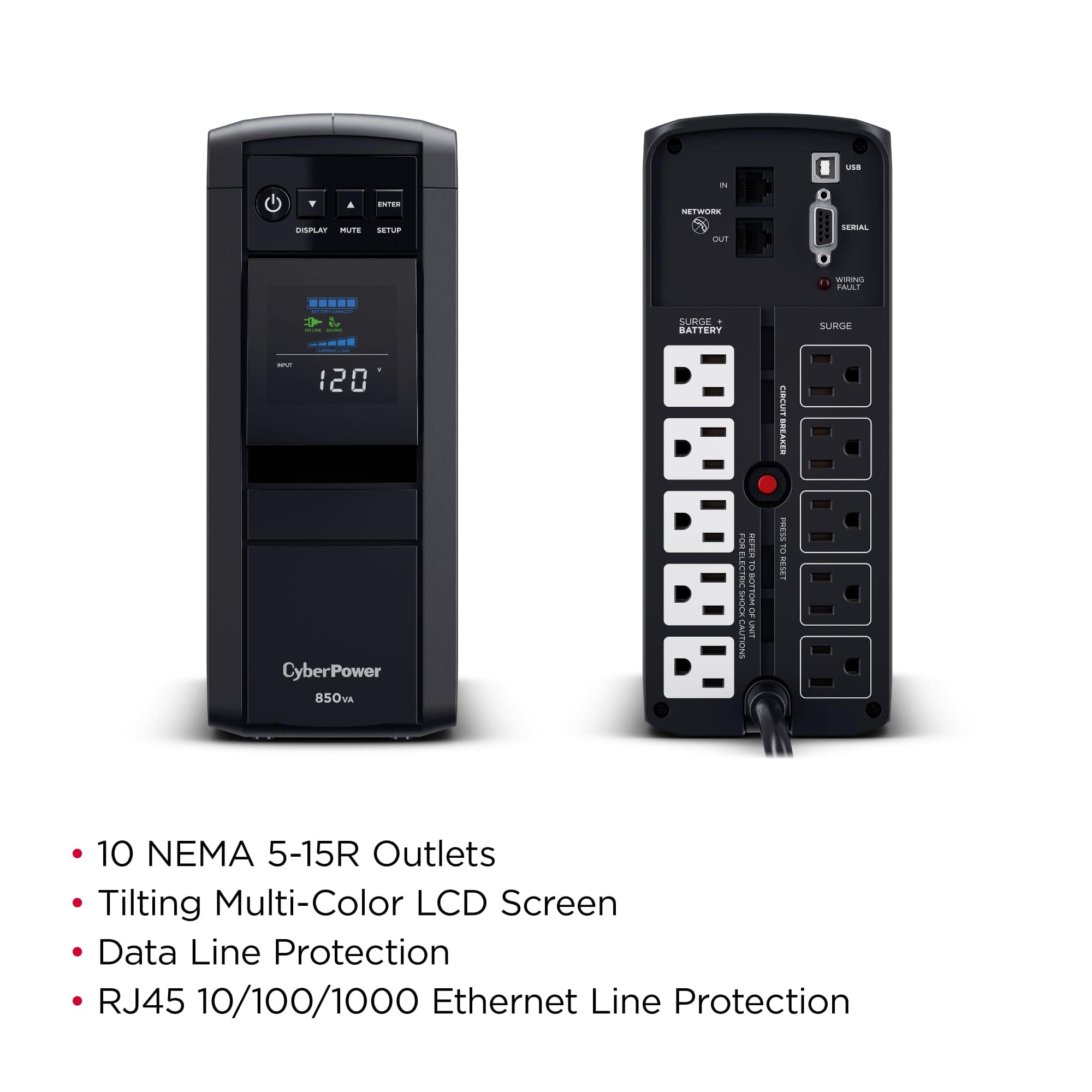

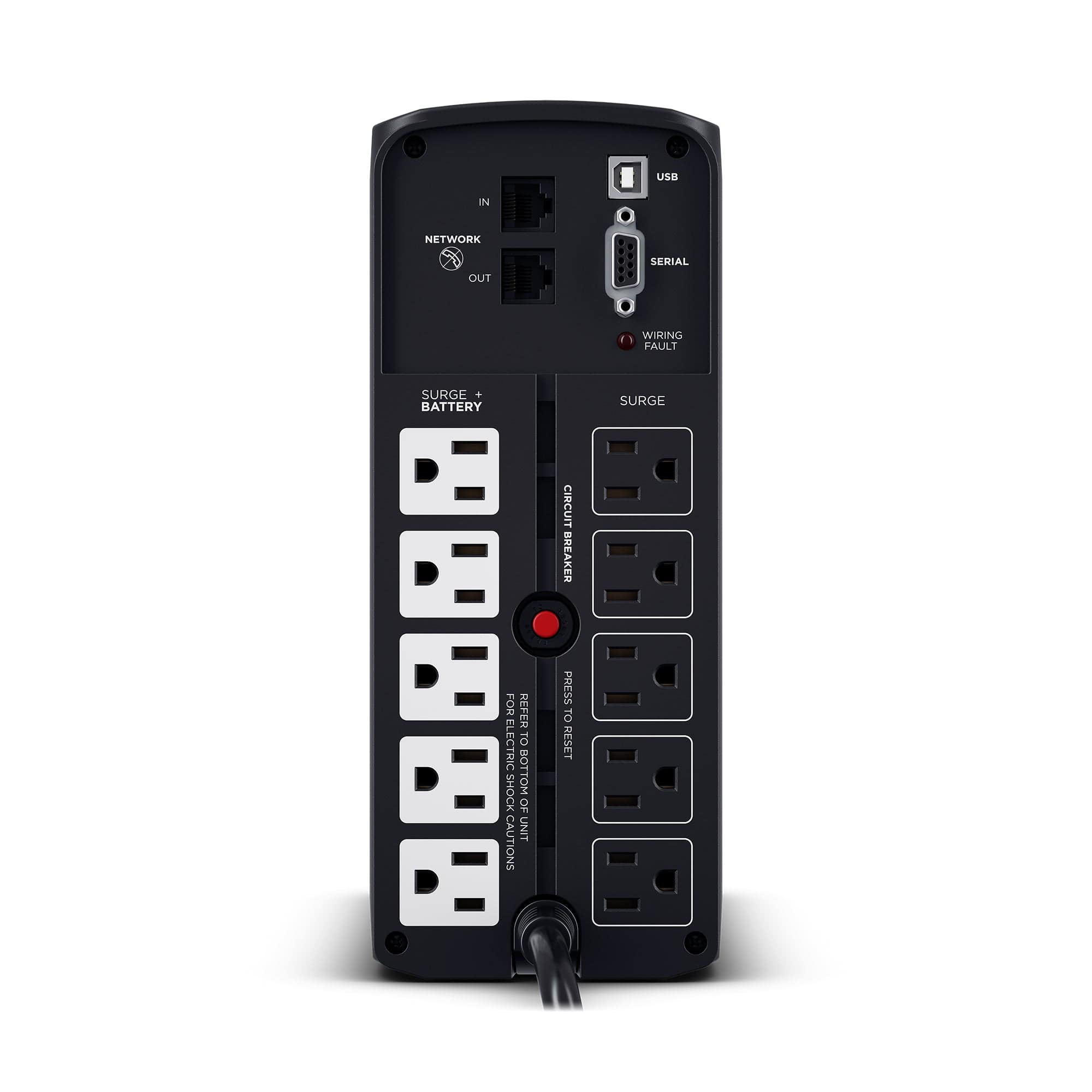

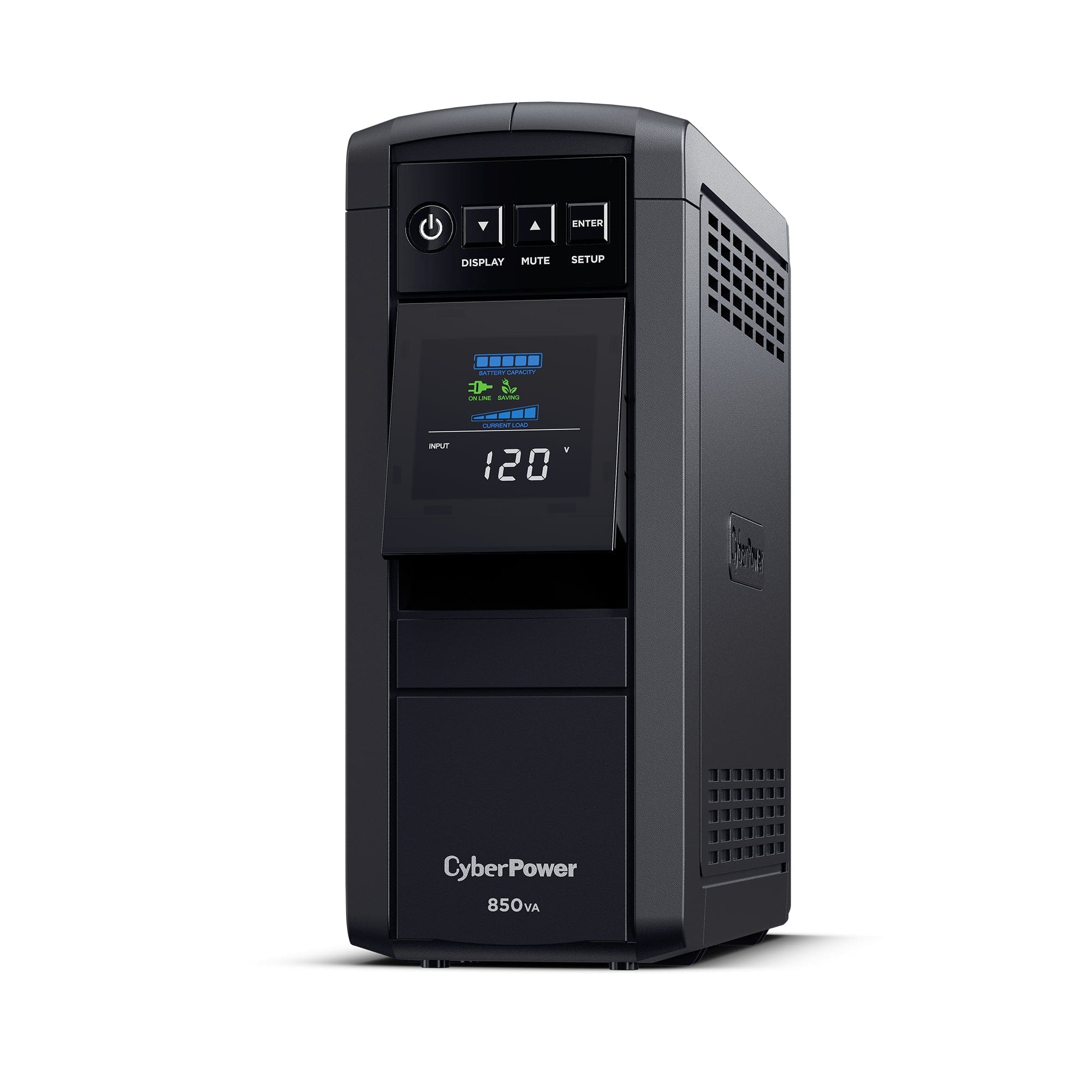

CyberPower CP850PFCLCD-R PFC Sinewave UPS System, 850VA/510W, 10 Outlets, AVR – Refurbished
Description
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup, power protection (using sine wave output), and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Features
- Capacity: 1500 VA / 900 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Plug type and cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 12 × NEMA 5-15R
- Communication: USB, Serial
- Data line protection: Telephone, Ethernet, Coaxial
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
UPS System, User Manual, Telephone Cable, PowerPanel Personal Edition Software CD, Coaxial Cable, USB A+B Type Cable, Warranty Registration Card, Function Setup Guide.
Specifications
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| ENERGY STAR® Qualified | Yes |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | 120 VAC |
| Adjustable Voltage Range | 78 – 142 VAC |
| Frequency Range | 57 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 5 ft |
| Output | |
| VA | 850 VA |
| Watts | 510 W |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| Automatic Voltage Regulation (line mode) | 12% |
| On Battery Waveform | Sine Wave |
| Outlets – Total | 10 |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 500% |
| USB Charge | No |
| Overload Protection | Internal Circuitry Limiting |
| Circuit Breaker | |
| Transfer Time | 4 ms |
| Battery | |
| Runtime at Half Load | 10 minutes |
| Runtime at Full Load | 2 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/8.5Ah |
| Battery Quantity | 24:00:00 |
| Hot-Swappable | No |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1280A |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| EMI/RFI Filteration | Yes |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| Multifunction LCD Panel | Toggle Status Display includes: |
| Current/Load Level | |
| Runtime | |
| Battery Level | |
| AVR In Use | |
| Battery In Use | |
| Input Voltage | |
| Output Voltage | |
| Output Frequency | |
| Overload | |
| Wiring Fault | |
| Silent Mode | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Emergency Power Off (EPO) Port | No |
| Management Cable | USB Cable |
| LED Indicators | Power On |
| Wiring Fault | |
| Audible Alarms | On Battery |
| Low Battery | |
| Overload | |
| Fault | |
| Software | PowerPanel® Personal |
| Physical | |
| Form Factor | Mini-Tower |
| Dimensions – W×H×D (in) | 3.9 × 9.1 × 10.4 inches |
| Weight (lbs) | 14.9 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Certifications | |
| Safety | UL1778 |
| cUL 107.3 | |
| FCC DOC Class B | |
| Environmental | RoHS Compliant |
