Klipsch K1061960 Professional KI-102-SMA-II 8" Trapezoidal Speaker - Refurbished
Description

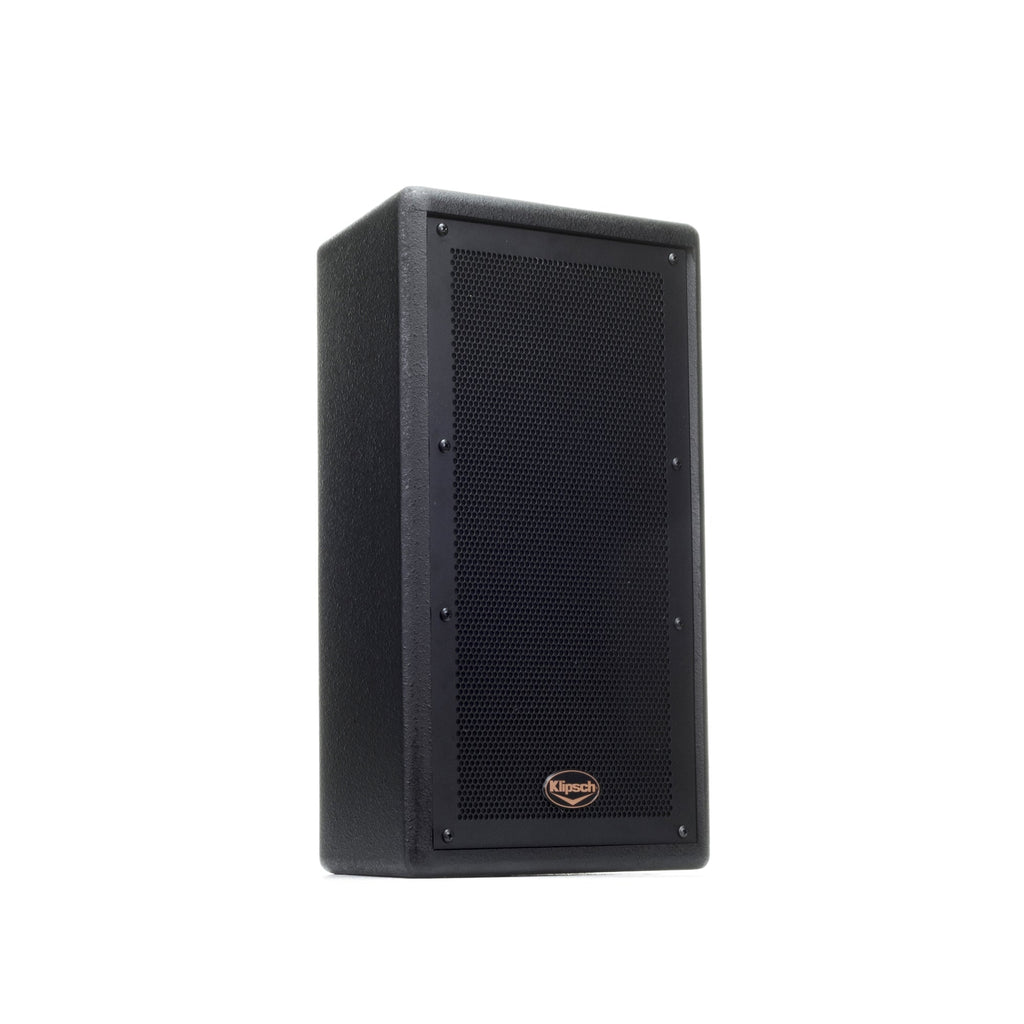

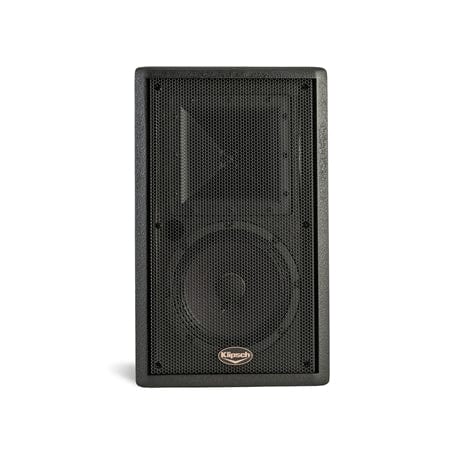

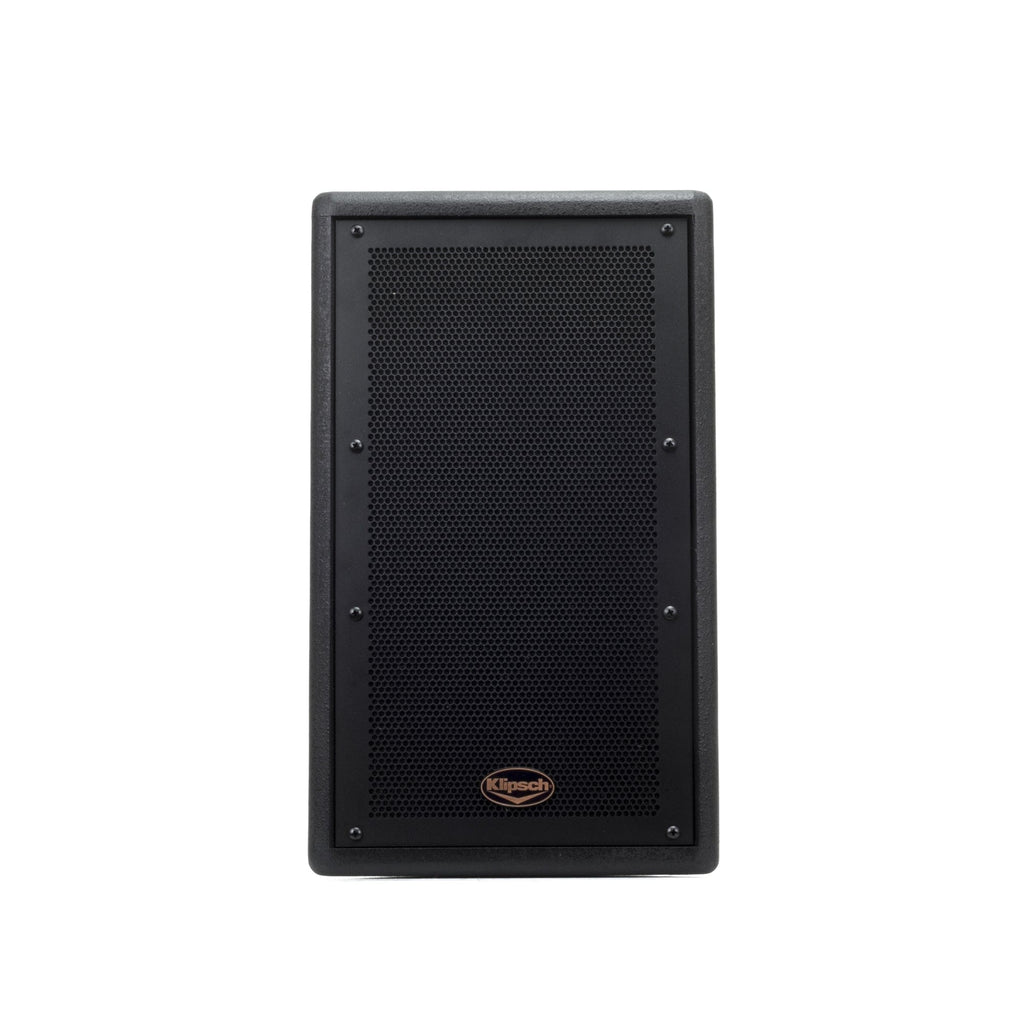

Klipsch K1061960 Professional Black KI-102-SMA-II 8" Trapezoidal Loudspeaker
Description
The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.
Features
The KI-102-SMA-II features a hybrid Tractrix "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.
CNC fabrication techniques dado lock-tab and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 U-shaped bracket
- Compact 22.5 symmetrical trapezoidal design
- 115dB maximum continuous output
- 8 (20.32cm) woofer and 1 (2.54cm) titanium diaphragm high-frequency compression driver
- 90 X 90 modified Tractrix Horn
- KLIP-circuit HF driver protection devices
- Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
Applications
- Restaurants
- Schools
- Houses of worship
- Health clubs
- AV production environments
- Auditoriums
Specifications
| Frequency Response (+/- 3 dB) | 88 Hz - 17 kHz (-10 dB @ 56 Hz) |
| Power Handling | 200 watts (31V); 800 watts peak |
| Maximum SPL | 115 dB Continuous; 121 dB Peak |
| Sensitivity | 95 dB |
| Coverage | Horizontal: 90 +/- 20 2.1 kHz - 19 kHz; Vertical: 90 +/- 30 2.5 kHz - 19 kHz |
| Directivity Index (DI) | 7 dB +/- 1 dB 1 kHz - 17 kHz |
| Directivity Factor (Q) | 5 |
| Nominal Impedance | 8 ohms, minimum 4.9 ohms @ 184 Hz |
| Overload Protection | KLIP Overload Protection Circuit-HF |
| Crossover Frequency | 2 kHz |

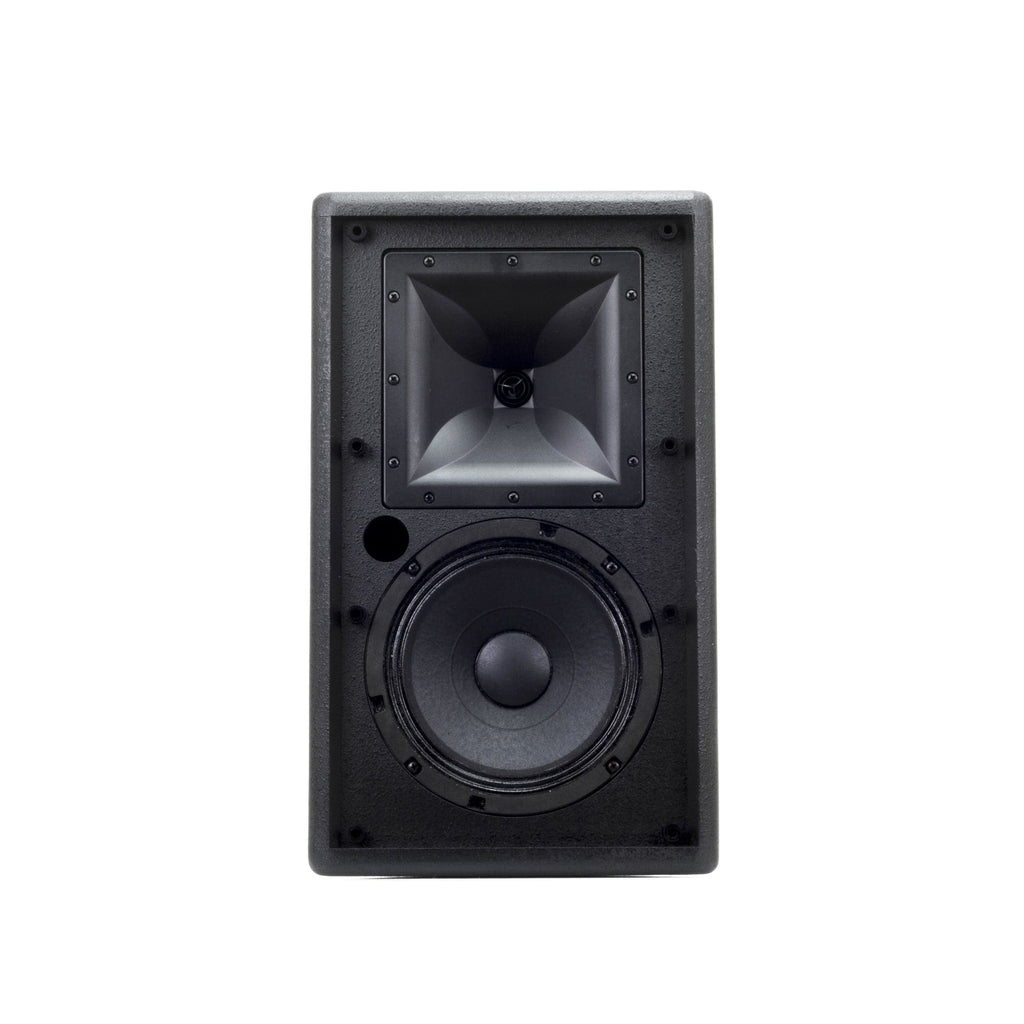

| Components | One K-81-ST 8" woofer; One K-103-TI-KP 1 titanium compression driver on a K-802-M horn |

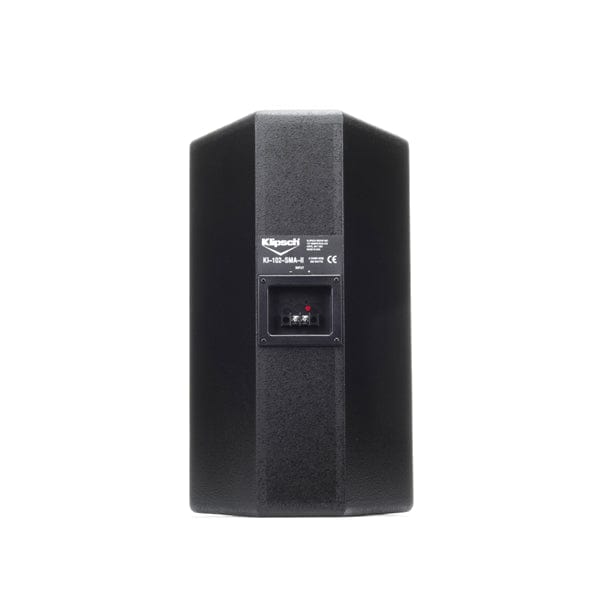

| Input Connection | Two point barrier strip |
| Mounting Options | 2 screw: 1/4 x 20; Machine screw for SB-102 Bracket |
| Enclosure Material | 3/4" MDF |
| Height | 18.9 (48.00cm) |
| Width | 11.6 (29.46cm) front; 4.2 (10.67cm) rear |
| Depth | 9.3 (23.77cm) |
| Weight | 24 lbs. (10.90kg) |
| Finishes | Black, White and Raw MDF |
| Accessories | SB-102 Mounting Bracket |
| Product Weight | 24 lb |
| Maximum Power Handling (Watts) | 800 |
| Tweeter Size | 1" |
| Depth (in.) | 9.3 |
| Height (in.) | 18.9 |
| Woofer Size | 8" |
