Samsung LH24QBRTBGCXZA-RB 24" Small Signage Touchscreen Display 1920 x 1080 60Hz - Certified Refurbished
Description
Samsung LH24QBRTBGCXZA-RB 24" Small Signage Touchscreen Display 1920 x 1080 60Hz - Certified Refurbished
Description
With a built-in media player, the Samsung QBR-T 24" Class Full HD Smart Digital Signage Touchscreen LED Display is designed to support a variety of content types to suit your needs. It an HDMI input to display your digital HD content, plus a USB port for local multimedia playback. The QBR-T also has a built-in 5W speaker and can be installed in portrait or landscape orientation. Its IP5X rating means the touchscreen display is safe for installation in dusty environments.
Features
- Full HD (1920 x 1080) Native Resolution
- Built-In Wi-Fi & Ethernet Connectivity
- IP5X Rating for Dust Protection
- Up to 10 Touchscreen Points
- Temperature sensor
- Clock battery (up to 168 hours of clock keeping)
- Auto Source Switching & Recovery
- LFD Home UI
- Button Lock
- Hot Key Option
- Plug & Play (initial setting)
Small Size with Full Functionality
Slim designs allow for efficient space utilization, even in compact locations. A sleek back design makes the displays optimal for both wall mounting or simply standing.
Crisp and Visible Content 16/7
1920 x 1080 Full HD resolution delivers crisp and easy-to-read content. The non-glare panel helps provide clear content in any ambient light. And reliable 16/7 operation makes them ideal for professional use.
Powerful, All-in-One Solution
The Samsung SMART Signage Platform (SSSP 6.0) is an all-in-one solution that simplifies installation and maintenance. The built-in media player allows you to create, edit, and schedule content, without needing a separate computer.
MagicINFO S6
Samsung's leading-edge digital signage platform makes content management easier, more flexible, and more robust. A separately sold subscription is required.
Built-In Wi-Fi
In addition to USB and HDMI connectivity with HDCP 2.2, the built-in Wi-Fi allows remote management for both content and display. With Wi-Fi control of content, you can eliminate LAN cables, simplifying installation.
IP5X for Lasting Durability
The IP5X rating ensures efficient and reliable performance, even in dusty environments and public spaces, which reduces overall cost of operation.
Embedded Touchscreen
The QBR-T provides a more user-friendly experience. Its 10-point multi-touch capability and fast response time powers an intuitive interface that creates new customer interactions and purchases.
Landscape or Portrait Pivot Design
The QBR-T display is versatile and can display your content in landscape or portrait mode.
Specifications
| Display | |
| Screen Size (Diagonal) | 23.8" |
| Resolution | 1920 x 1080 |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 20.75 x 11.67" / 527.04 x 296.46 mm |
| Aspect Ratio | 16:09 |
| Response Time | 14 ms (GtG) |
| Dot Pitch | 0.2745 x 0.2745 mm |

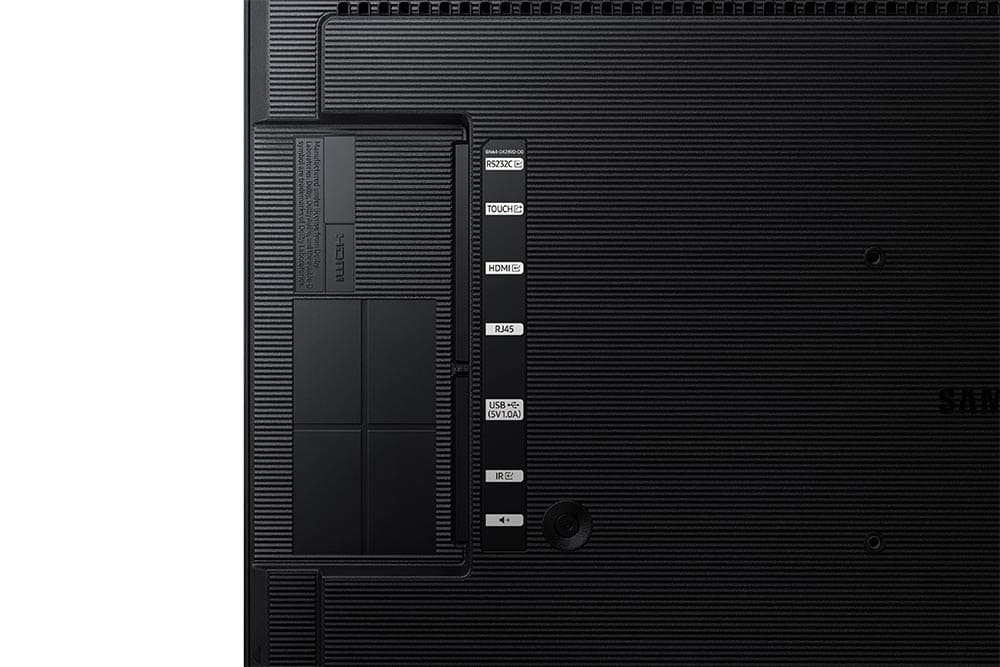

| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI 1.4 Audio, Video |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) Type-A - Touchscreen Control/Power |
| Ethernet Ports | 1 |
| Control | RS-232C via 1/8" / 3.5 mm Input |
| IR via 1/8" / 3.5 mm Input | |
| Wi-Fi | Built-in |
| General | |
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
| Surface | |
| Multi-Touch Points | 10 |
| Surface Treatment | Anti-Glare |
| Audio | |
| Built-In Speakers | Yes, 5 W |
| Hardware | |
| Operating System | Tizen 4.0 |
| Processor | 1.7 GHz ARM Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
| Convenience | |
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
| Electrical | |
| Power Consumption | Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Physical | |
| Wall Mounting | 100 x 100 mm |
| IP Rating | IP5X |
| Bezel Thickness | 17.9 mm (Bottom/Top) |
| 9.4 mm (Right/Left) | |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 21.6 x 13.2 x 1.4" / 547.9 x 334.4 x 34.6 mm |
| Weight | 8.8 lb / 4.0 kg |
