Samsung LH32PMFPBGA/GO-RB 32" Edge-Lit LED Display - Certified Refurbished
Description
Samsung LH32PMFPBGA/GO-RB 32" Edge-Lit LED Display - Certified Refurbished
Description
With a built-in TV tuner and media player, the Samsung PMF Series 32"-Class Full HD Commercial Smart LED TV is designed to support a variety of content types to suit your needs. In addition to accepting TV broadcast signals, this display features DVI-I, two DisplayPort, and two HDMI inputs. The PMF series also has two built-in 10W speakers and USB plug-and-play support, providing additional content options.
Features
- Slim, ADA-Compliant profile of just 1.1" chassis depth and 8.9mm bezel width
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined remote content management
- Built for 16/7 operation so you can connect with your customers during peak hours
- High picture quality and full connectivity options
Slim Design

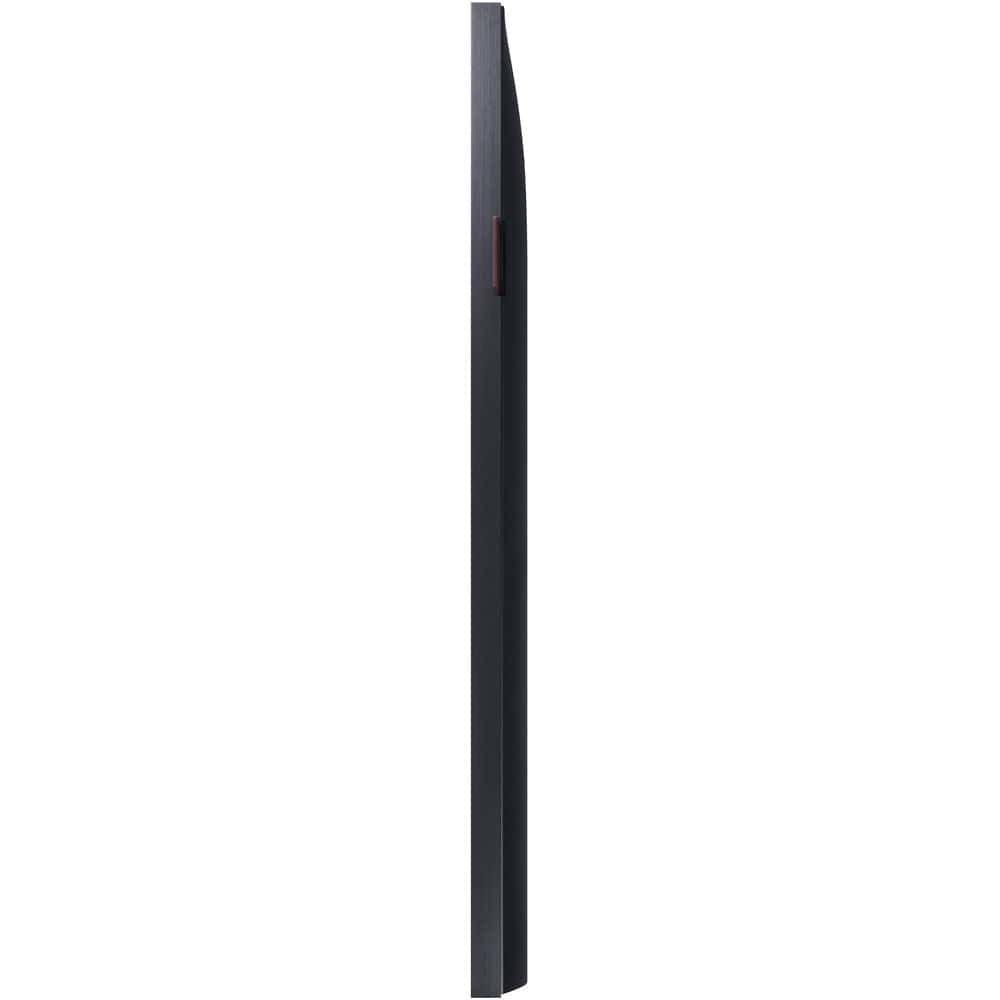

The PM-F series features an 8.9mm bezel and 1.2" chassis depth to help provide enhanced aesthetics.
System-on-Chip Platform for Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad-core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated media platform that provides a digital signage solution with software like MagicInfo T for computer-less content creation, scheduling, playback, and remote management.
Built for 16/7 Use with IP5X Certification for Dust Protection
The PM-F series is built for 16/7 use and features IP5X-certified dust protection for enhanced durability. This enables you to install it in dusty environments without an additional housing while meeting the operating requirements of most retail and public spaces.
Enhanced Connectivity

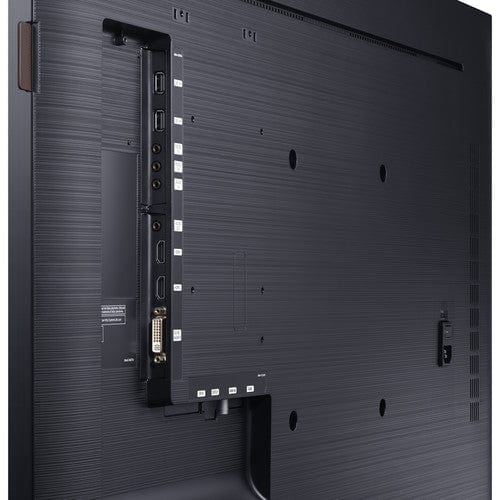

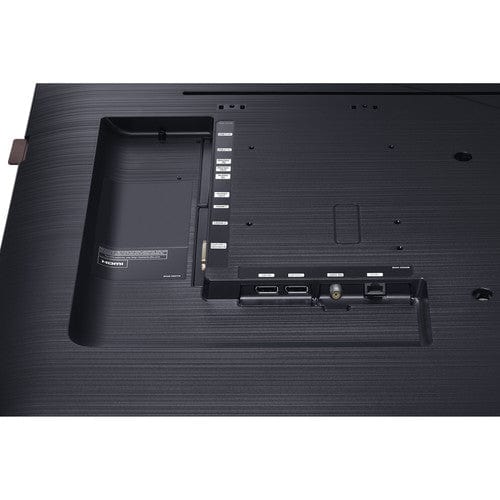

Connections include HDMI, DisplayPort, DVI-I, and USB, allowing you to connect a variety of source devices.
Integrated Wi-Fi
Onboard Wi-Fi enables you to connect your compatible mobile device for media sharing, screen control, and content mirroring.
Additional Features
- Integrated temperature sensor
- Video wall daisy-chaining (via DisplayPort, up to 16)
- Pivot display
- Clock battery supports up to 80 hours of clock keeping
- Magic Clone (to USB)
- Auto source switching & recovery
- RS232C/RJ45 MDC
- Plug-and-play
- PIP/PBP
- Image rotation
- Button lock
- Firmware updates via network
- Computer-less video wall
- Multichannel
- Backup player
- Supports OpenGL ES
Specifications
| Display | |
| Screen Size (Diagonal) | 32" |
| Resolution | 1920 x 1080 |
| Panel Type | Unspecified LCD |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Brightness | 400 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 27.50 x 15.47" / 698.4 x 392.85 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 30 to 81 kHz |
| Vertical Frequency | 48 to 75 Hz |
| Dot Pitch | 0.36 x 0.36 mm |
| Backlighting Technology | Edge LED |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI Audio, Video |
| 2 x DisplayPort 1.2 Audio, Video | |
| 1 x DVI-I Video | |
| 1 x RF Antenna Audio, Video | |
| 1 x 1/8" / 3.5 mm Audio | |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video |
| 1 x 1/8" / 3.5 mm – Audio | |
| USB Ports | 2 x USB 2.0 (Rear) |
| Ethernet Ports | 1 (Rear) |
| Wi-Fi | Built-in |
| General | |
| TV Tuner | Yes |
| Maximum Multiple Display Configuration | 15 x 15 |
| Surface | |
| Haze Level | 2% |
| Audio | |
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| Processing | DTS |
| Hardware | |
| Operating System | Tizen 2.4 |
| Processor | 1.3 GHz ARM Cortex-A12 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB DDR3 1866 MHz |
| Convenience | |
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
| Picture in Picture (PIP) | Yes |
| Electrical | |
| Power Consumption | Maximum: 88.0 W |
| Typical: 42.0 W | |
| Standby: < 0.5 W | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | FCC, as per Manufacturer |
| Physical | |
| Wall Mounting | 200 x 200mm |
| IP Rating | IP5X |
| Bezel Thickness | 8.9 mm (Bottom/Right/Top/Left) |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 28.4 x 16.4 x 1.2" / 721.2 x 415.6 x 29.9 mm |
| Weight | 12.5 lb / 5.67 kg |
| Packaging Info | |
| Package Weight | 16.1 lb |
| Box Dimensions (LxWxH) | 31.5 x 19.5 x 5" |
