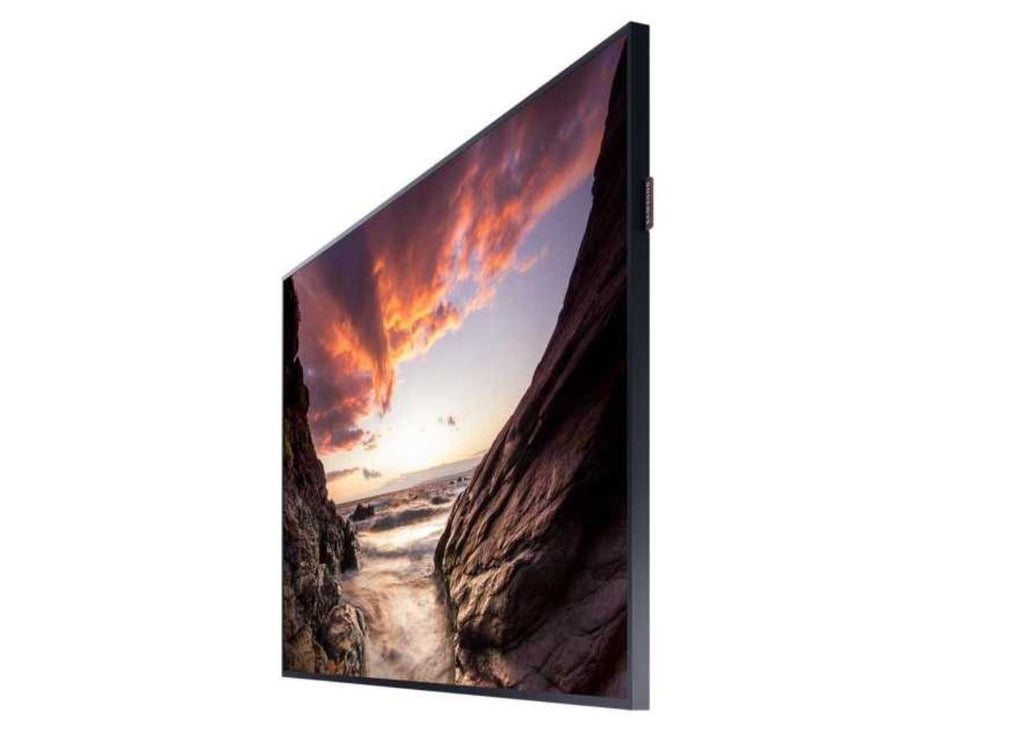

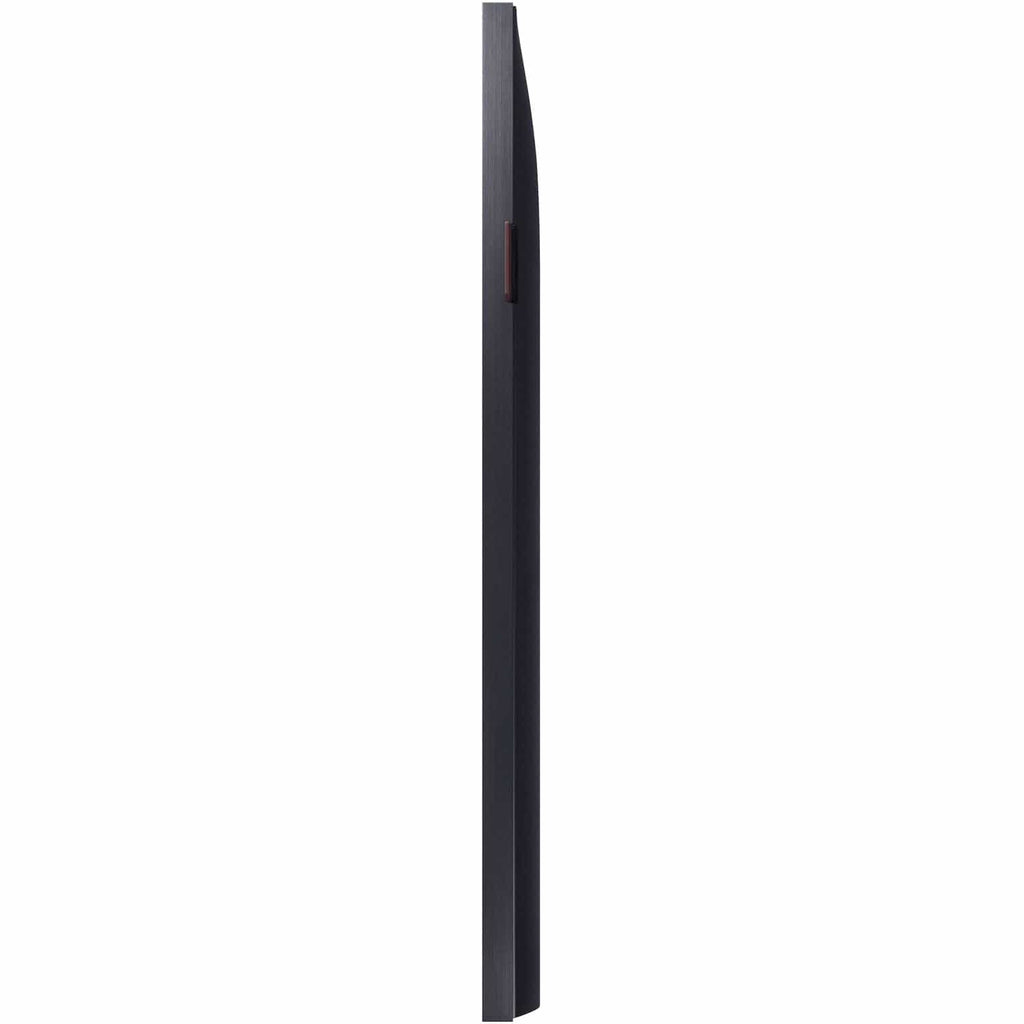

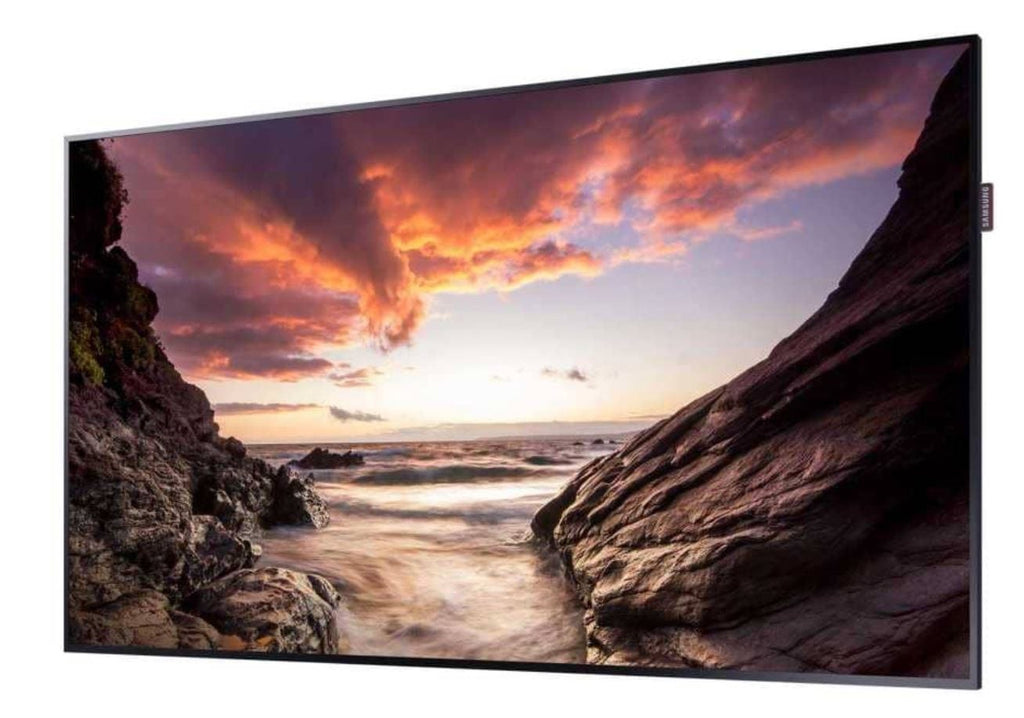

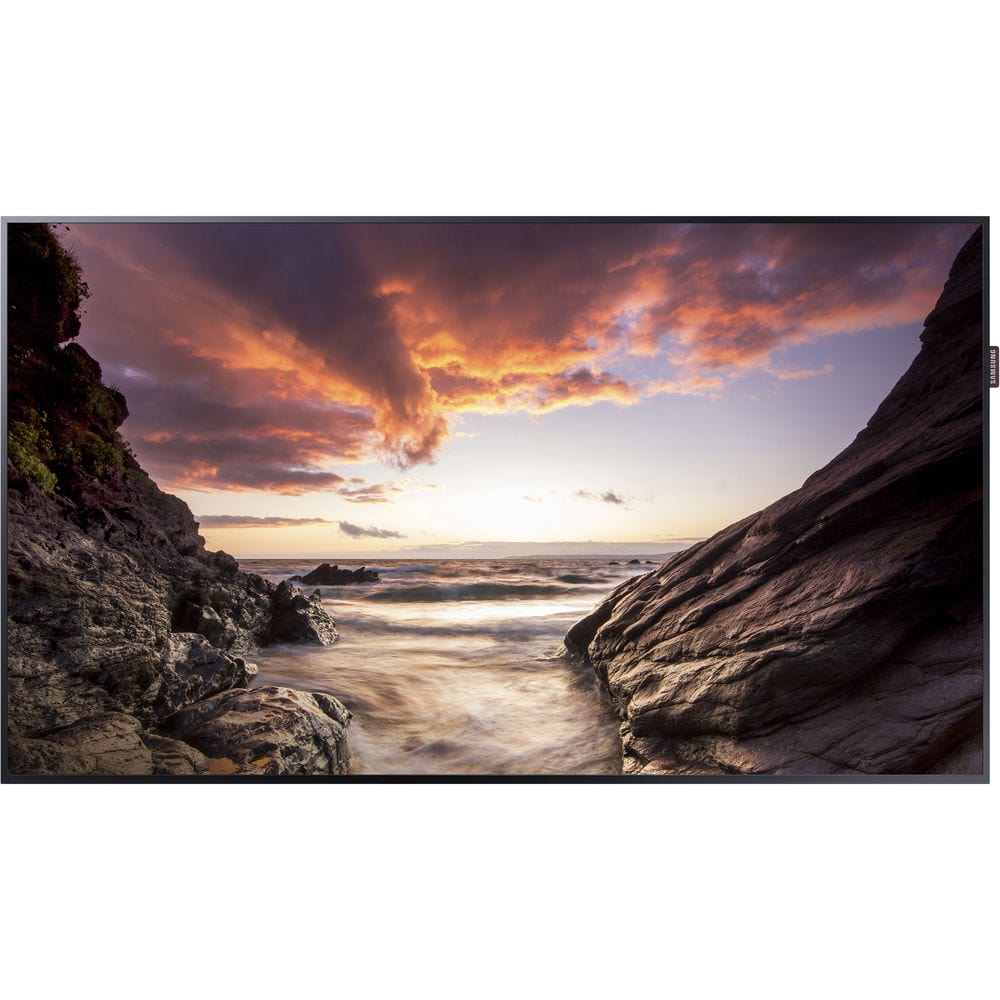

Samsung LH43PMFXTBC/ZA-RB 43" Multi-Point Capacitive Touch Display 1920 x 1080 60Hz - Certified Refurbished
Description
Samsung LH43PMFXTBC/ZA-RB 43" Multi-Point Capacitive Touch Display 1920 x 1080 60Hz - Certified Refurbished
Description
Samsung's PM43F-BC is an all-in-one signage solution including an integrated media player and content management tools, plus multi-point capacitive touch technology with up to 10 simultaneous touchpoints. It's built for 24/7 run-time, features IP5X certified dust protection and the bright, non-glare panel offers enhanced readability.
With a built-in media player and touchscreen capability, the Samsung PMF-BC Series 43"-Class Full HD Touchscreen Smart LED TV is designed to support a variety of content types to suit your needs. It features DVI-I, DisplayPort, and two HDMI inputs to display your digital HD content, plus two USB ports for multimedia playback. The PMF-BC series also has two built-in 10W speakers and supports computer-free video wall setups in configurations up to 15 x 15.
Features
- Full HD (1920 x 1080) Native Resolution
- 60 Hz Refresh Rate / 8 ms Response Time
- 300 cd/m² Brightness
- 5000:1 Contrast Ratio
- 72% color gamut
- 2% haze on the panel, 15% haze on the glass
- Mega Dynamic contrast ratio
- RS-232C via 1/8" jacks
- Slim & Light Signage with MagicInfo S4, SSSP 4.0, Cap-Touch
- Temperature sensor
- Video wall (up to 15 x 15 via the OSD)
- Video wall daisy chains up to 16 via DisplayPort
- Pivot display
- Clock battery (up to 168 hours clock keeping)
- Magic clone (to USB)
- Auto source switching and recovery
- Plug-and-play design
- PIP/PBP
- Image rotation
- Button lock
- Firmware update via network
- Multi-channel
- Mobile control
- Event scheduling
- Backup player
All-in-One Touchscreen Display Solution
The PMF-BC series combines the visual power of signage with the efficiency of touch-driven interactivity to allow customers to navigate a range of relevant content via the integrated Tizen operating system.
Designed for Convenient Management
This display condenses several signage components, including an operating system, embedded media player, and capacitive touch technology, into an all-in-one solution.
Multi-Point Capacitive Touch Communication
With capacitive touch technology and an interface designed to be user-friendly, the PMF-BC series helps provide an easy-to-navigate digital writing experience. The display supports up to 10 unique touch points engineered to provide the feel of analog board or pen-and-paper writing.
Reduced Glare Design
Featuring a 5000:1 contrast ratio and 300 cd/m² of brightness, the PMF-BC displays visible content in environments subject to variable lighting conditions. The non-glare glass front panel is designed to further reduce the impact of ambient light interference for enhanced readability, while the anti-haze coating helps provide smooth, uninterrupted on-screen navigation.
Engineered to Resist Dust for Continuous Content Delivery
Designed for 16/7 operation and dust resistance, the PMF-BC series display helps provide unwavering messaging without ongoing messaging.
Centralized IR Receiver
With the IR receiver located in the middle of the screen, the PMF-BC display can be controlled from various locations to provide quick, uninterrupted management.
Specifications
| Display | |
| Screen Size (Diagonal) | 43" |
| Resolution | 1920 x 1080 |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Brightness | 300 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 27.50 x 15.47" / 698.4 x 392.85 mm |
| Aspect Ratio | 16:09 |
| Contrast Ratio | 5000:01:00 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 30 to 81 kHz |
| Vertical Frequency | 48 to 75 Hz |
| Dot Pitch | 0.360 x 0.360 mm |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | 148.5 MHz |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video |
| 1 x DisplayPort 1.2 Audio, Video | |
| 1 x DVI-I Video | |
| 1 x 1/8" / 3.5 mm Audio | |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video |
| 1 x 1/8" / 3.5 mm – Audio | |
| USB Ports | 2 x USB 2.0 Type-A - Audio/Photo/Video |
| 2 x USB (Version Unspecified) Type-B - Control | |
| Ethernet Ports | 1 |
| Wi-Fi | Built-in |
| Digital Media Slot | None |
| General | |
| TV Tuner | Yes |
| HDCP Support | Yes, Version 2.2 |
| Maximum Multiple Display Configuration | 15 x 15 |
| Surface | |
| Touchscreen Technology | Capacitive |
| Multi-Touch Points | 10 |
| Surface Treatment | Anti-Glare |
| Haze Level | 15% |
| Audio | |
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| Processing | DTS |
| Hardware | |
| Operating System | Tizen 2.4 |
| Processor | 1.3 GHz ARM Cortex A12 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB DDR3 1866 MHz |
| Convenience | |
| Supported Video File Types | H.263, H.264/AVC, MPEG, MPEG2, MPEG4, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
| Electrical | |
| Power Consumption | Typical: 117.0 W |
| Standby: < 0.5 W | |
| Power Adapter Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 10 to 80% |
| Storage Humidity | 5 to 95% |
| Physical | |
| Wall Mounting | 200 x 200 mm |
| Material of Construction | 3.2T Glass |
| Bezel Thickness | 21.9 mm (Bottom/Right/Top/Left) |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 29.3 x 17.3 x 2.4" / 74.5 x 44.0 x 6.2 cm |
| Weight | 21.8 lb / 9.9 kg |
| Packaging Info | |
| Package Weight | 25.8 lb |
| Box Dimensions (LxWxH) | 33 x 20.65 x 5.5" |
