ViewSonic CDE4600-L-S 46" Commercial LED Display - Refurbished
Description
ViewSonic CDE4600-L-S 46" Commercial LED Display -Refurbished
Description
The ViewSonic CDE4600-L is a 46’’ (46’’ viewable) commercial LED display with a 19.5mm narrow-bezel design. Featuring Full HD 1080p resolution, 350-nit high brightness, 4000:1 high contrast ratio, Super Clear technology for wide viewing angles, and dual 7W stereo speakers, the CDE4600-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. Versatile connectivity options include HDMI, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Integrated RS232 input and output, with IR pass-through and a one-time setting function, make the CDE4600-L an easy to-manage solution for multiple display configurations. An integrated media player supports the scheduling and playback of photo, music, and video content directly from a USB drive. Content can also be loaded and distributed to multiple displays via LAN RJ45 connection, or wirelessly from mobile devices. ViewSonic’s CDE4600-L is the ideal digital signage solution for attracting customers in shopping malls, retail outlets, restaurants, and other indoor commercial areas.
Features
- 46” (46” viewable) display area; 19.5mm narrow-bezel design; Full HD 1920 x 1080 resolution
- 350-nit brightness, wide viewing angle, 4000:1 contrast ratio
- Media player with scheduling function; USB, wireless and LAN content loading
- HDMI, DVI, Composite, Component, VGA, RS232 and RJ45 connectivity
- RS232 in and out, IR pass-through
Sleek, Narrow Bezel Design
The ViewSonic CDE4600-L commercial display features a 0.75-inch (19.5mm) narrow bezel design. This sleek, narrow bezel maximizes is remarkable visual messaging for passersby, making the CDE4600-L the perfect choice for digital signage installations.
Energy-Saving LED Backlight with a Long Lifespan
The CDE4600-L utilizes an energy-saving LED backlight that consumes 35% less power than conventional CCFL backlight displays, and has an extended lifespan of up to 30,000 hours. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment.
Easy LAN and Wireless Content Uploading from PCs and Mobile Devices
The CDE4600-L features a RJ45 port to connect directly with PCs or notebooks via Intranet connection. This provides for the efficient loading of content onto multiple displays through a primary display. DLNA-compatible mobile devices can also utilize a wireless hub to push multimedia content directly to selected displays.
USB Multimedia Player for Scheduled Playback of Videos, Photos and Music
With the handy PC-less USB playback feature, photos, music and 1080p video can be immediately displayed on-screen from a USB drive. A user-friendly on-screen scheduling interface also lets you select time, date, repeat and shuffle settings, or choose specific content to play from the attached USB source.
Full HD 1080p for Superior Pixel Performance
The ViewSonic CDE4600-L display features Full HD 1920 x 1080 resolution to deliver superior pixel-by-pixel performance for a more realistic viewing experience. At this resolution you’ll experience greater image clarity and detail - qualities that will bring high-definition multimedia content to life.
SuperClear Technology Panel for Wide Viewing Angles
SuperClear image enhance technology panel delivers 178-degrees of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colors, and consistent brightness levels whether looking at the screen from above, below, the front, or the side - with no distortion or decay.
RS232 In/Out with IR Pass-Through for Easy Management
RS232 input and output connectivity, along with IR pass-through functionality, provides for the easy and efficient management of multiple-display configurations from a single notebook or PC. By using the RS232 output, daisy-chained configurations can be managed via a primary CDE4600-L display.
Versatile Inputs and One-time Configuration Settings
With a versatile selection of inputs, including HDMI, DVI, CVBS, YPbPr (YCbCr) and VGA, the CDE4600-L commercial display enables you to easily connect and use a variety of digital equipment. Best of all, the one-time display installation and setup feature means your preferred source settings are never lost.
Portrait or Landscape Mountable
The CDE4600-L can be VESA-mounted (400 x 400mm) in either portrait or landscape orientation for display flexibility in a variety of settings.
Dual Stereo Speakers for Crystal-Clear Sound
With a pair of integrated 7W speakers, the CDE4600-L combines eye-catching multimedia content with high-quality sound effects - creating a lasting audio-visual impression on your target audience or demographic.
Efficient, User-Friendly Content Scheduling and Settings
The ViewSonic CDE4600-L commercial display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Display setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs.
Applications
- Indoor commercial environments
- Retail digital signage – small to mid-size business
- Sports bar and restaurant entertainment displays
Specifications
| LCD | |
| Type : | TFT LED Module with LED Backlight |
| Contrast Ratio : | 4000:01:00 |
| Viewing Angles : | 178°horizontal, 178° vertical SuperClear® |
| Display Area : | 1018.08(H) x 572.67 (V) (46” diagonal) |
| Optimum Resolution : | 1920 x 1080 |
| Response Time : | 8ms |
| Display / Diagonal Size: | 46 in |
| Dimensions & Weight / Depth: | 3.88 cm |
| Dimensions & Weight / Height: | 62.25 cm |
| Dimensions & Weight / Width: | 106.8 cm |
| Header / Brand: | ViewSonic |
| Miscellaneous / Product Color: | Black |
| Service & Support / Type: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
| Television / Brightness: | 350 cd/m² |
| Television / Diagonal Size: | 46 in |
| Television / Diagonal Size (cm): | 117 cm |
| Television / Display Format: | 1080p (Full HD) |
| Television / Image Aspect Ratio: | 16:09 |
| Television / Image Contrast Ratio: | 167 |
| Television / PC Interface: | DVI |
| VGA (HD-15) | |
| Television / Resolution: | 1920 x 1080 |
| Television / Type: | LED-backlit LCD flat panel display |
| Television / Viewing Angle: | 178° |
| Dimensions & Weight / Weight: | 15.3 kg |
| General | |
| Product Type: | LED-backlit LCD flat panel display |
| Power Consumption Operational: | 104 Watt |
| Diagonal Class: | 46" |
| Commercial Use: | Yes - digital signage |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Video Interface: | Component, composite, HDMI |
| HDMI Ports Qty: | 1 ports |
| PC Interface: | DVI, VGA (HD-15) |
| HDCP Compatible: | Yes |
| Design: | Narrow Bezel Concept |
| Width: | 106.8 cm |
| Depth: | 3.88 cm |
| Height: | 62.25 cm |
| Weight: | 15.3 kg |
| Enclosure Color: | Black |
| Display | |
| Resolution: | 1920 x 1080 |
| Display Format: | 1080p (Full HD) |
| Image Aspect Ratio: | 16:09 |
| LCD Backlight Technology: | LED backlight |
| Coating: | 3H Hard, Super Clear |
| Image Contrast Ratio: | 4000:01:00 |
| Brightness: | 350 cd/m² |
| Viewing Angle: | 178° |
| Viewing Angle (Vertical): | 178° |
| Response Time: | 8 ms |
| Backlight Life: | 50,000 hour(s) |
| Stands & Mounts | |
| Stand: | Optional |
| Flat Panel Mount Interface: | 400 x 400 mm |
| Video Features | |
| Input Video Formats: | 480p, 720p, 1080i, 1080p, 480i |
| Media Player | |
| USB Port: | Yes |
| USB Ports Qty: | 1 |

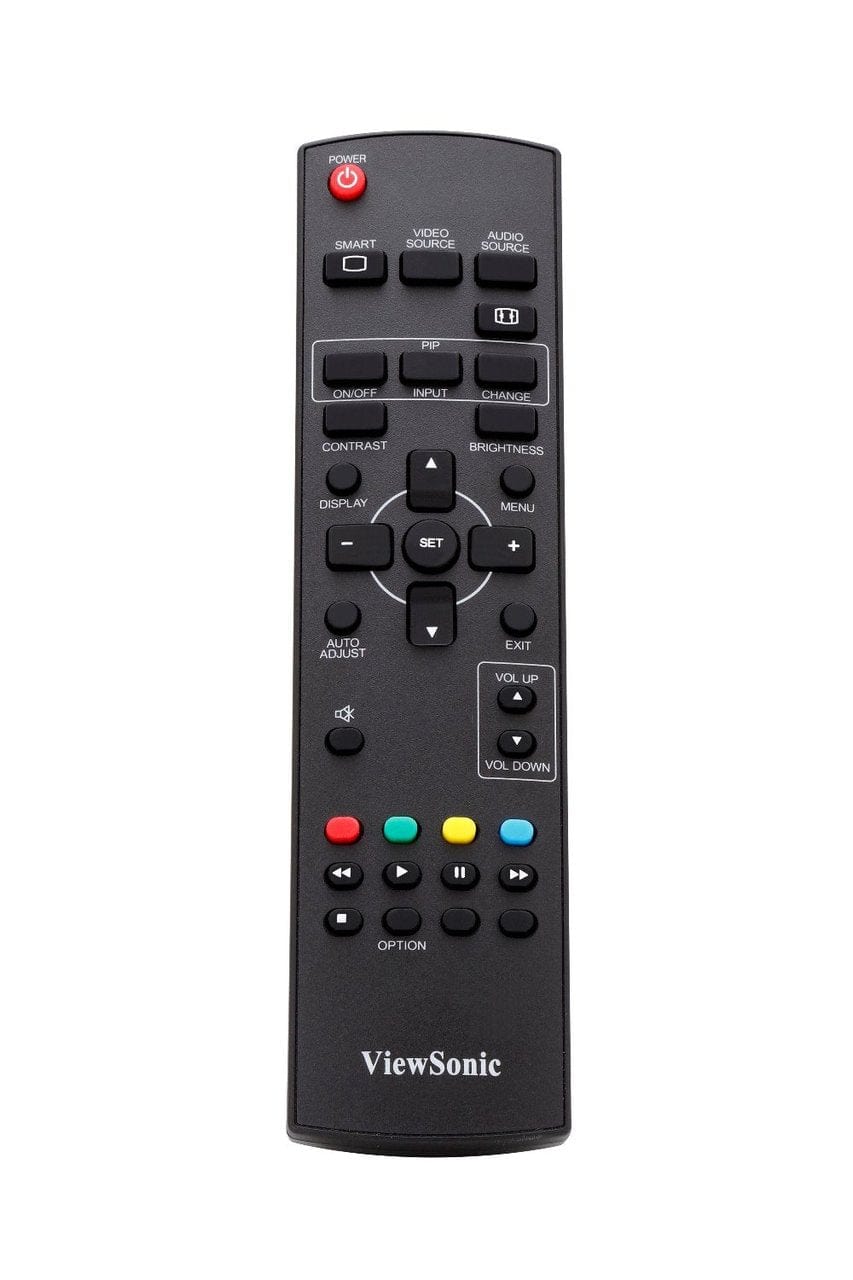

| Remote Control | 1 |
| Type: Standard remote | |
| Features: | Remote Control Pass Through |
| Audio System | |
| Speaker System: | 2 speakers |
| Output Power / Total: | 14 Watt |
| Speakers: | 2 x main channel speaker - built-in - 7 Watt |
| Network & Internet Multimedia | |
| Connectivity: | LAN |
| LAN Protocol: | Ethernet |
| DLNA: | Yes |

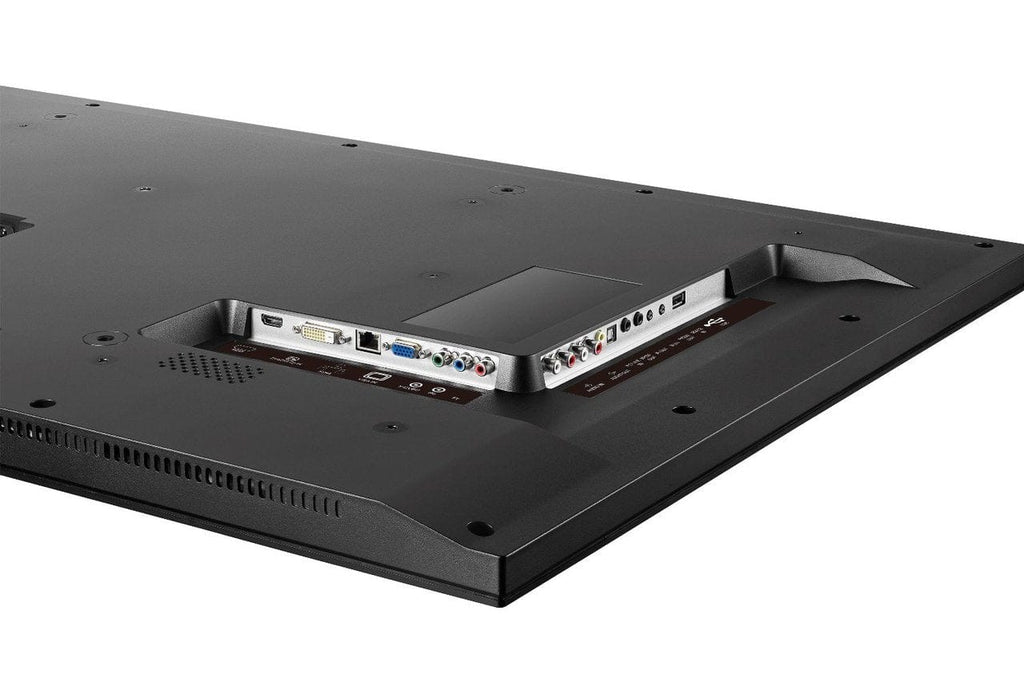

| Connections | |
| Connector Type: | Network |
| Serial input | |
| Serial output | |
| HDMI input | |
| USB | |
| DVI-D input | |
| Headphones | |
| Component video input | |
| Audio line-in | |
| Audio line-out | |
| SPDIF output | |
| IR Blaster | |
| Miscellaneous | |
| Cables Included: | VGA cable |
| Compliant Standards: | UL, C-Tick, cUL, ICES-003, CB, FCC, WEEE |
| Environmental Standards | |
| ENERGY STAR Certified: Y | es |
| Power | |
| Power Device: | Power supply |
| Nominal Voltage: | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight (Shipping) | |
| Width (Shipping): | 116.4 cm |
| Depth (Shipping): | 14.8 cm |
| Height (Shipping): | 76.8 cm |
| Weight (Shipping): | 17.2 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
