ViewSonic CDM5500T 55" HD 10-Point Interactive Display - Certified Refurbished
Description
ViewSonic CDM5500T 55" Full HD 10-Point Touch Interactive Flat-Panel Display - Certified Refurbished
Description
The CDM5500T 55" Full HD Display from ViewSonic features a 10-point touchscreen and internal media player. It is equipped with a high-performance processor and 16GB of storage (upgradeable to 32GB). The built-in media player ensures hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN / Wi-Fi for easy connection to the Internet for content delivery. Furthermore, commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.
Features
10-Point Multi-Touch
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses, their fingers, or both at the same time.
Built-In Quad-Core Media Player with 16GB Storage
A powerful quad-core media player enables photo and video playback, while 16GB of on-board memory provides ample storage for files and multimedia content.
Embedded LAN, Wi-Fi, and Browser
An integrated RJ45 connection, as well as Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated browser provides simple content delivery via connection to the web.
Internal Scheduler
An efficient, user-friendly scheduling interface is available via the OSD (On-Screen Display). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.
CMS (Content Management Software)
For all venues and scenarios, the bundled Signage Manager software lets users transfer multimedia content onto the display from PCs and laptops. This embedded content management tool also lets you format, schedule, and save playback settings.
Integrated USB Multimedia Player
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive - without the need for a PC.
Portrait or Landscape Mountable
This display is VESA-mountable in either portrait or landscape orientation for display flexibility in a variety of settings.
5 x 5 Tiling Support with DisplayPort or DVI
With integrated DisplayPort and DVI outputs, this display supports up to a 5 x 5 tiling setup for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
Specifications
| Display | |
| Screen Size (Diagonal) | 54.6" |
| Resolution | 1920 x 1080 |
| Brightness | 450 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time | 12 ms |
| Backlighting Technology | Direct LED |
| Connectivity | |

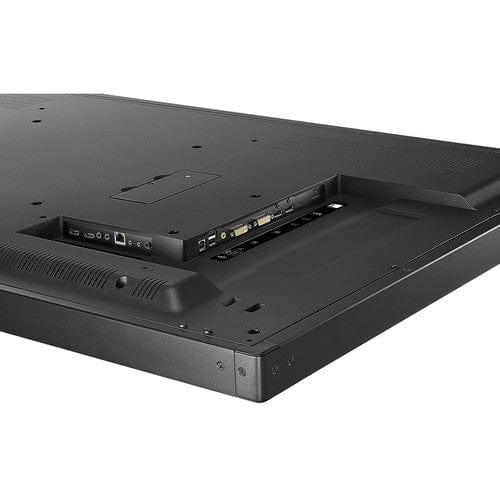

| Input Ports | 2 x HDMI 1.4 Audio, Video |
| 1 x DVI-I Video | |
| 1 x DisplayPort Audio, Video | |
| Output Ports | 1 x DVI-I – Audio, Video |
| 1 x DisplayPort – Audio, Video | |
| USB Ports | 2 x USB 2.0 |
| Ethernet Ports | 1 |
| General | |
| Lighting Lifespan | 50,000 Hours |
| Surface | |
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 10 |
| Hardness Rating | 3H |
| Audio | |
| Built-In Speakers | Yes, 2 x 10 W |
| Hardware | |
| Processor | ARM Cortex A9 Quad-Core |
| Electrical | |
| Power Consumption | Standby: 0.5 W |
| Maximum: 130.0 W | |
| Typical: 75.0 W | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental | |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 10 to 90% |
| Physical | |

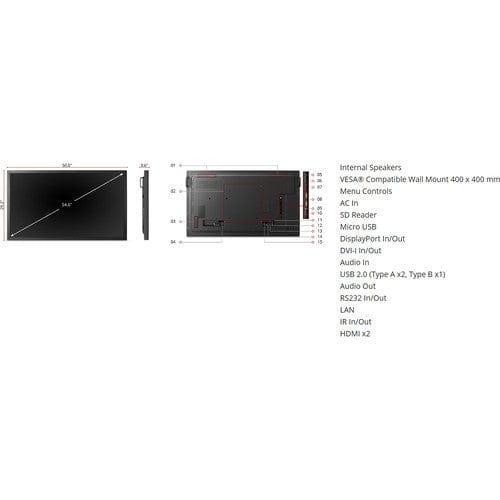

| Wall Mounting | 400 x 400mm |
| Dimensions | 50.0 x 29.2 x 3.6" / 127.0 x 74.1 x 9.1 cm |
| Weight | 68.3 lb / 30.9 kg |
| Packaging Info | |
| Package Weight | 95 lb |
| Box Dimensions (LxWxH) | 60 x 39 x 11" |
