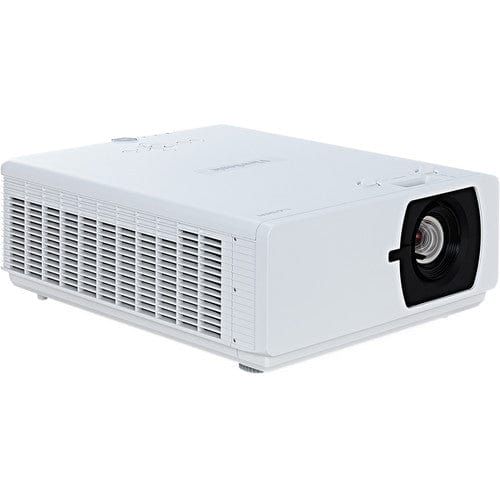

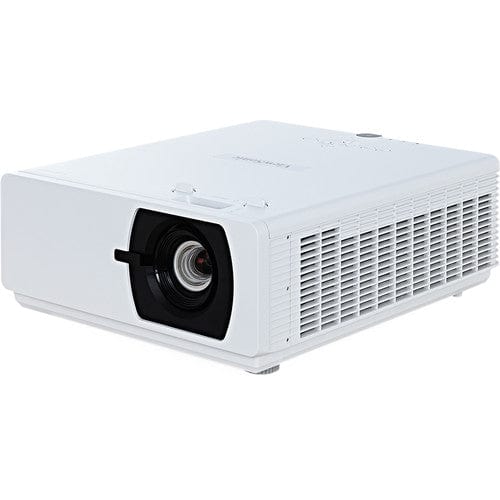

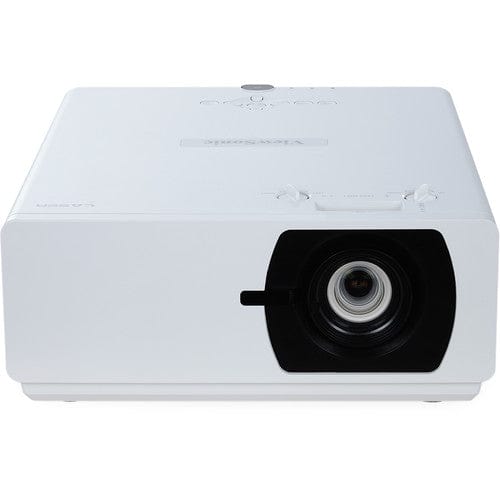

ViewSonic LS800WU-S 5500-Lumen WUXGA Laser DLP Projector - Certified Refurbished
Description
ViewSonic LS800WU-S 5500-Lumen WUXGA Laser DLP Projector - Certified Refurbished
Description
Make your content jump off the screen with the LS800WU Laser Projector from ViewSonic. Delivering 5500 lumens of brightness, a 100,000:1 contrast ratio, and up to 30,000 hours of life from its laser phosphor light source, this projector is well suited for use in auditoriums, lecture halls, large boardrooms, houses of worship, and other large venues. SuperColor technology brings graphics and video content to life while 1.65x optical zoom, vertical/horizontal keystone, four-corner adjustment, and vertical/horizontal lens shift facilitate deployment and management. The built-in HDBaseT receiver allows the projector to receive uncompressed HD video and audio from over 200' away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility.
Features
- 5500 Lumen Brightness
- 100,000:1 Ultra-High Contrast Ratio
- 1920 x 1200 Resolution
- 2 to 1.9 Throw Ratio
5500 Lumen Brightness
With 5500 lumen brightness and a high contrast ratio, this projector delivers bright images even in large spaces with high ambient light such as large boardrooms, conference halls, and auditoriums.
High Contrast Ratio
The high-contrast ratio of 100,000:1 enhances colors and shades, enabling clear, sharp images.
Long-Lasting Laser Phosphor Light Source
A sealed optical engine and laser phosphor light source that lasts up to 30,000 hours allow the projector to deliver long-term, low-maintenance usage for a lower overall total cost of ownership.
One-Wire HDBaseT Input
With an integrated HDBaseT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
360° Orientation
Its robust mechanical construction allows the projector to be installed in almost any angle. For example, you can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or upside-down at a 45° angle.
Portrait Mode Projection
This projector can be placed in a vertical position and project images in portrait orientation.
Mounting Flexibility
The 1.65x optical zoom provides mounting flexibility, allowing for easier installation of the projector.
Horizontal & Vertical Keystone Correction
Horizontal and vertical keystone correction and a corner adjustment feature help eliminate distortion to ensure evenly proportioned pictures.
Horizontal & Vertical Lens Shift
A horizontal/vertical lens shift feature offers up-and-down, as well as left-and-right, adjustments of the projection lens. This feature allows for flexible projector placement in challenging installations.
Network Monitoring & Control
An IT administrator can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, via the integrated Crestron e-Control system and RoomView Express management software. The LS800WU projector is Crestron and AMX certified.
Reduced Input Latency
With an input latency of 16 ms, this projector delivers smooth images with fast frame-by-frame action.
Continuous Operation
The LS800WU is designed to run 24/7.
Specifications
| Image Display | |
| Display System | 1-Chip DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Max Brightness | 5500 Lumens |
| Aspect Ratio | Native: 16:9 |
| Supported: 16:10 | |
| Supported: 2.35:1 | |
| Supported: 4:3 | |
| Dynamic Contrast Ratio | 100,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Sequential |
| Frame Packing (up to 1080p) | |
| Side by Side (up to 1080i) | |
| Top Bottom (up to 1080p) | |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz |
| Vertical: 23 to 120 kHz | |
| Lens | |
| Focus | Manual |
| Lens Shift | Horizontal: -2.5 + 2.5% |
| Vertical: -2.4 + 9.2% | |
| Optical Zoom | Manual: 1.65x |
| Throw Distance | 4.1 - 41' / 1.25 - 12.497 m |
| Throw Ratio | 1.2 to 1.9:1 |
| Projection Size | 30 - 300" / .76 - 7.62 m |
| Features | |
| Keystone Correction | Manual-Vertical: ± 25° |
| Manual-Horizontal: ± 30° | |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Stereo) |
| Speaker Power | 5W |
| Closed Captioning | Yes |

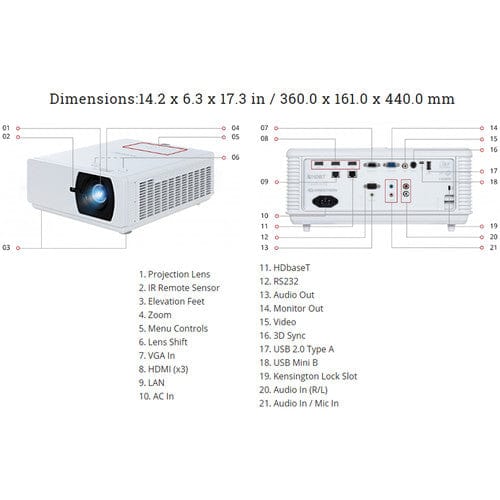

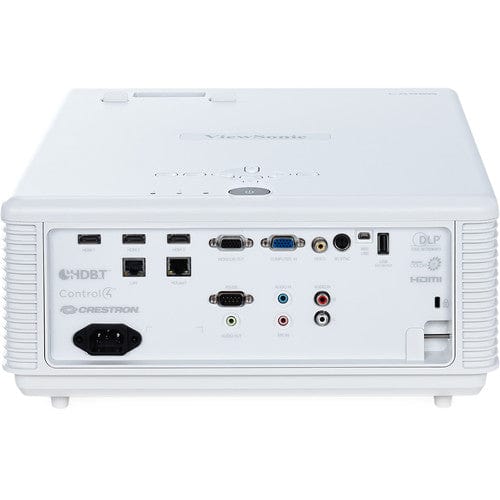

| Input/Output Connectors | |
| Inputs/Outputs | 3 x HDMI Type-A Audio, Video Input |
| 1 x VGA (DE-15/DB-15) Video Input | |
| 1 x VGA (DE-15/DB-15) Video Output | |
| 1 x Composite (RCA) Video Input | |
| 1 x Composite (2RCA) Audio Input | |
| 1 x S-Video (4-Pin DIN) Video Input | |
| 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Video Input | |
| 1 x Ethernet (RJ45) Control Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Output | |
| 1 x 1/8" / 3.5 mm Mini Microphone Input | |
| 1 x RS-232 (DE-15/DB-15) Control Input | |
| 1 x VESA 3D Sync (4-Pin DIN) Control Output | |
| 1 x USB Type-A Power Output | |
| 1 x Mini-USB Service Input | |
| Memory Card Slot | None |
| Hardware | |
| Wireless LAN / Wi-Fi | None |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| Low Brightness: 30,000 Hours | |
| Security | Cable Lock Slot |
| Password Protection | |
| Security Bar | |
| Supported Audio File Types | None |
| Supported Document File Types | None |
| Supported Photo File Types | None |
| Supported Video File Types | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 430 W |
| Standby Mode (Lamp Off): <0.5 W | |
| Max Operating Altitude | 9842' / 3000 m |
| Temperature | Operating |
| 32 to 104°F (0 to 40°C) | |
| Humidity: 0 - 90% | |
| Dimensions (W x H x D) | 14.2 x 6.3 x 17.3" / 36.1 x 16.0 x 43.9 cm |
| Weight | 24.3 lb / 11.0 kg |
| Packaging Info | |
| Package Weight | 30.6 lb |
| Box Dimensions (LxWxH) | 22 x 18.6 x 11.8" |
