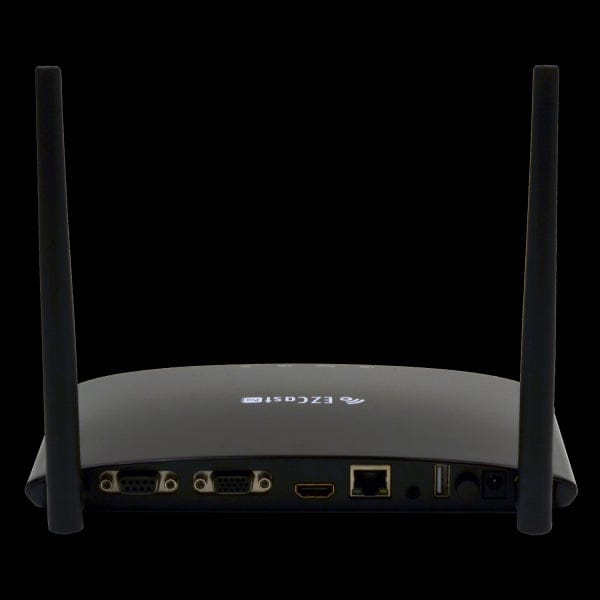

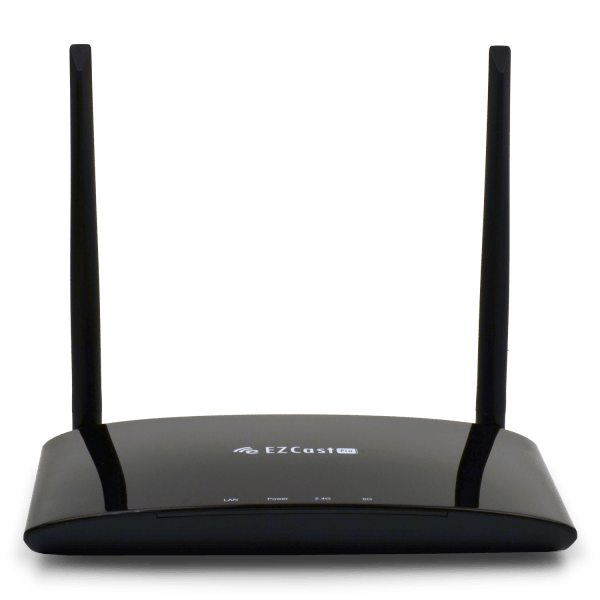

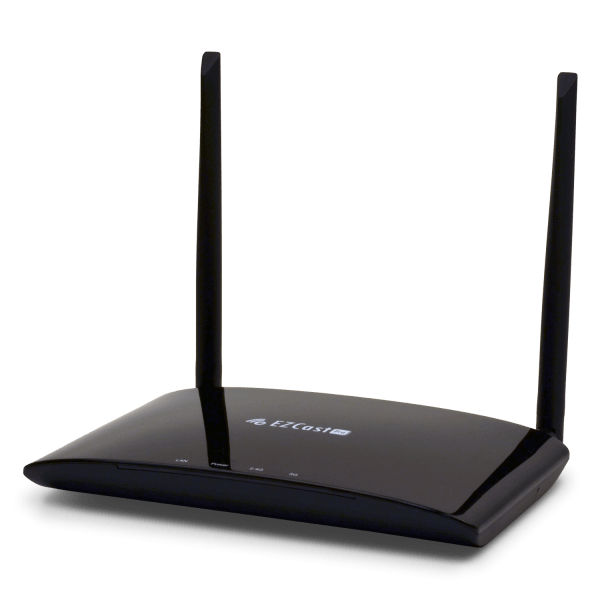

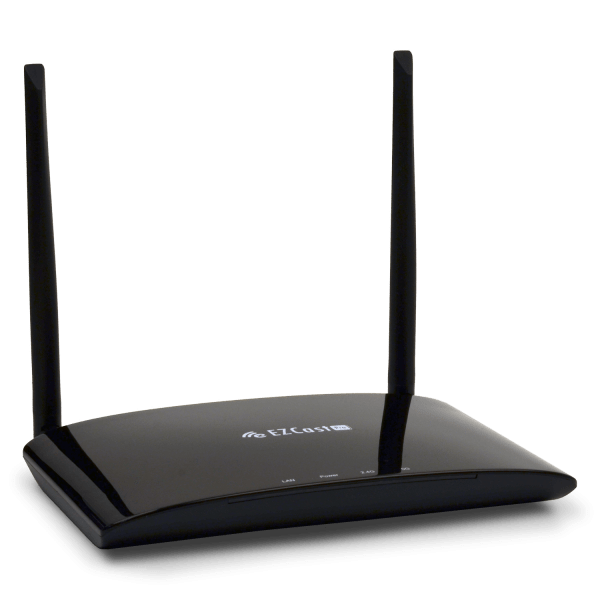

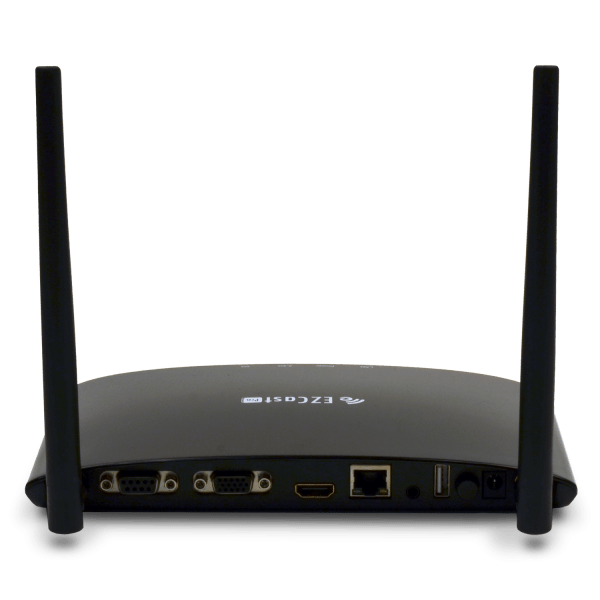

ViewSonic ViewConnect VCB10-R Wireless Presentation Gateway - C Grade Refurbished

ViewSonic ViewConnect VCB10-R Wireless Presentation Gateway - C Grade Refurbished

*Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes.



Description

The ViewSonic® ViewConnect VCB10 is an advanced wireless presentation and collaboration device with integrated Ethernet LAN port and the latest 802.11n + 802.11ac dual Wi-Fi network interfaces. It provides dual WiFi for 2.4GHz and 5GHz to give you the most robust and reliable wireless presentation experience. Flexible connectivity options include HDMI output, VGA output, RS-232C, Audio Out, and a USB port with thumb drive, mouse, and touch panel support.

Features

• Dual Band Wireless Support
• 4-in-1 Split Screen
• Apple® AirPlay® Support
• Concurrent Support for WiFi, Miracast, and DLNA
• Moderator Mode

Dual Band Wireless Support

This device offers a 2.4GHz and 5GHz dual band wireless transmission that smoothly streams multimedia content such as videos and images, without any delays. The 2.4GHz frequency is perfect for web browsing and presentations, while the wider bandwidth of 5GHz is perfect for streaming high-quality videos and games.

4-In-1 Split Screen

A 4-in-1 split screen function transforms any large format display or projection screen into an interactive meeting room terminal – allowing up to 4 presenters to securely display media from any range of devices such as tablets, laptops, and mobile phones.

Compatible With Apple ® Airplay

Stream audio and video from Apple devices to any display connected to the adapter.

CONCURRENT SUPPORT FOR WIFI, MIRACAST, AND DLNA

With support for 2.4GHz / 5GHz WiFi, Miracast screen mirroring, and DLNA media streaming, this wireless presentation gateway allows users to seamlessly connect and share data no matter their device.

Moderator Mode

A Moderator Mode enables a designated user to preview, control, and moderate content being shared from connected devices, and choose the information that is shared on the projector or display.

Extended Screen Functionality

An extended screen function gives presenters the ability to edit content on their laptop, while showing a different screen on the projector or display.

Multi-Os Support

MAC, Windows, and Android are all supported by this adapter

Ota Firmware Updates

Convenient, over-the-air updating of firmware is available.

Specifications

CPU Processor Type:	RISC CPU based on MIPS 24K
Wireless Connectivity:	Dual Antenna (>5dbm)
Frequency Band:	2.4GHz 802.11n / 5GHz 802.11ac 2T2R
Resolution:	1080P, 720P, 480P
Power:	5V DC, 1.5A
Storage Capacity:	256MB
Flash Memory:	6144:00:00
SECURITY:	WPA2, WPA2-PSK

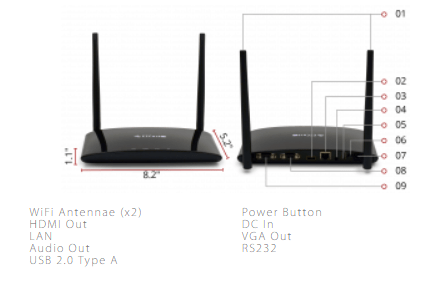

Connectors:	HDMI 1.3 Output, VGA Output, Audio Jack (3.5mm), Ethernet LAN, RS232 (DB9)
Supported OS:	N/A
General:
Regulations:	FCC-B, CE, ErP, RoHS
Recycle/Disposal:	Please dispose of in accordance with local, state or federal laws.
UPC:	766907952414
Dimensions (imperial) (WxHxD):
Physical (in.):	8.2 x 1.1 x 5.2
Dimensions (metric) (WxHxD):
Physical (mm):	208.3 x 27.9 x 149.9
Weight (metric):
Net (kg):	0.3
Gross (kg):	0.9
Weight (imperial):
Net (lbs):	0.6
Gross (lbs):	2.00
Operating Conditions:
Temperature:	23-113°F (-5-45º C)
Humidity (non-condensing):	0-95%
Controls:
On Screen Display:	Setting, Resolution, Password, Internet, Language, Default Mode, Upgrade
Accessories:	CDE3204, CDE4302, CDE4803-H, CDE5010, CDE5502, CDE5510, CDE6510, CDE6510-S, CDE7500, CDM4300R, CDM4300T, CDM4900R, CDM5500R, CDM5500T, CDX4952, CDX5552, CDX5562, EP4320, EP5520, EP5520T, IFP5550, IFP6550, IFP7550, IFP8650, LS625W, LS700-4K, LS700HD, LS800HD, LS800HD-S, LS800WU, LS800WU-S, PA505W, PA505W-S, PG700WU, PG800HD, PS501W, PS501W-S, PS501X, PS501X-S, PS600W, PS600X, PS700W, PS700X, PS750HD, PX700HD, PX700HD-S, PX706HD, PX706HD-S, PX725HD, PX727-4K, PX727-4K-S, PX747-4K, PX747-4K-S, PX800HD, X10-4K, X1000-4K, cde4803, cde6502, cdp9800
