CyberPower CP1000PFCLCD-R PFC 1000VA / 600W Pure Sine Wave UPS System - New Battery Certified Refurbished
Description
The CyberPower CP1000PFCLCD PFC Sinewave UPS System with sine wave output and multifunction LCD safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildupFeatures
- 1000VA / 600W Pure Sine Wave UPS
- 10 Outlets with USB and Serial Ports
- AVR & GreenPower UPS
- EMI/RFI Filters
- Automatic Voltage Regulation
- ENERGY STAR® Qualified
- RJ11/RJ45 and Coax RG6 Protection
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Sine Wave Output
The UPS generates energy that is identical to, or cleaner than the utility company's power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.
Multifunction LCD Panel with Color Display
Displays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime. Screen tilts up to 17 degrees for easy viewing.
Automatic Voltage Regulation (AVR)
AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
USB Charge Ports
Rapidly charge and power USB devices whether the UPS is providing utility or battery backup power.
Data Line Protection
Prevents power surges that travel through Ethernet lines from causing damage to electronics.
Widely Spaced Outlets
The widely-spaced outlets allow you to conveniently add transformer-sized plugs without blocking other outlets.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (brownouts) and over voltages (spikes) without having to switch to battery.
ENERGY STAR
This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
GreenPower UPS Bypass Design
A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel Personal Edition
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. This software is available as a free download.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment up to $350,000 if it is damaged by a power surge.
Specifications
| GENERAL | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| ENERGY STAR® Qualified | Yes |
| Active PFC Compatible | Yes |
| INPUT | |
| Voltage | 90Vac - 139Vac |
| Adjustable Voltage Range | 78Vac - 142Vac |
| Frequency | 57Hz - 63Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 5' |
| OUTPUT | |
| VA | 1000 |
| Watts | 600 |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 60Hz ± 1% |
| Automatic Voltage Regulation | 12% |
| On Battery Waveform | Sine Wave |
| Outlets - Total | 10 |
| Outlet Type | NEMA 5-15R |
| Outlets - Battery & Surge Protected | 5 |
| Outlets - Surge-Only Protected | 5 |
| USB Charging Ports | No |
| Overload Protection | Internal circuitry limiting / circuit |
| breaker | |
| Transfer Time | 4ms |
| BATTERY | |
| Runtime at Half Load (min) | 9 |
| Runtime at Full Load (min) | 3 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9AH |
| Hot-Swappable | No |
| Replacement Battery | RB1290 |
| Battery Quantity | 1 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| PROTECTIONS | |
| Surge Suppression | 1,030 Joules |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| EMI/RFI Filtration | Yes |
| MANAGEMENT & COMMUNICATIONS | |
| Multifunction LCD Panel | Displays: Current/Load Level, Runtime, |
| Battery Level, AVR In Use, Battery In Use, | |
| Input Voltage, Output Voltage, Output | |
| Frequency, Overload, Wiring Fault, Silent | |
| Mode | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | No |
| Management Cable | USB Cable |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | On Battery, Low Battery, Overload, Fault |
| Software | PowerPanel® Personal Edition |
| PHYSICAL | |
| Form Factor | Mini-Tower |

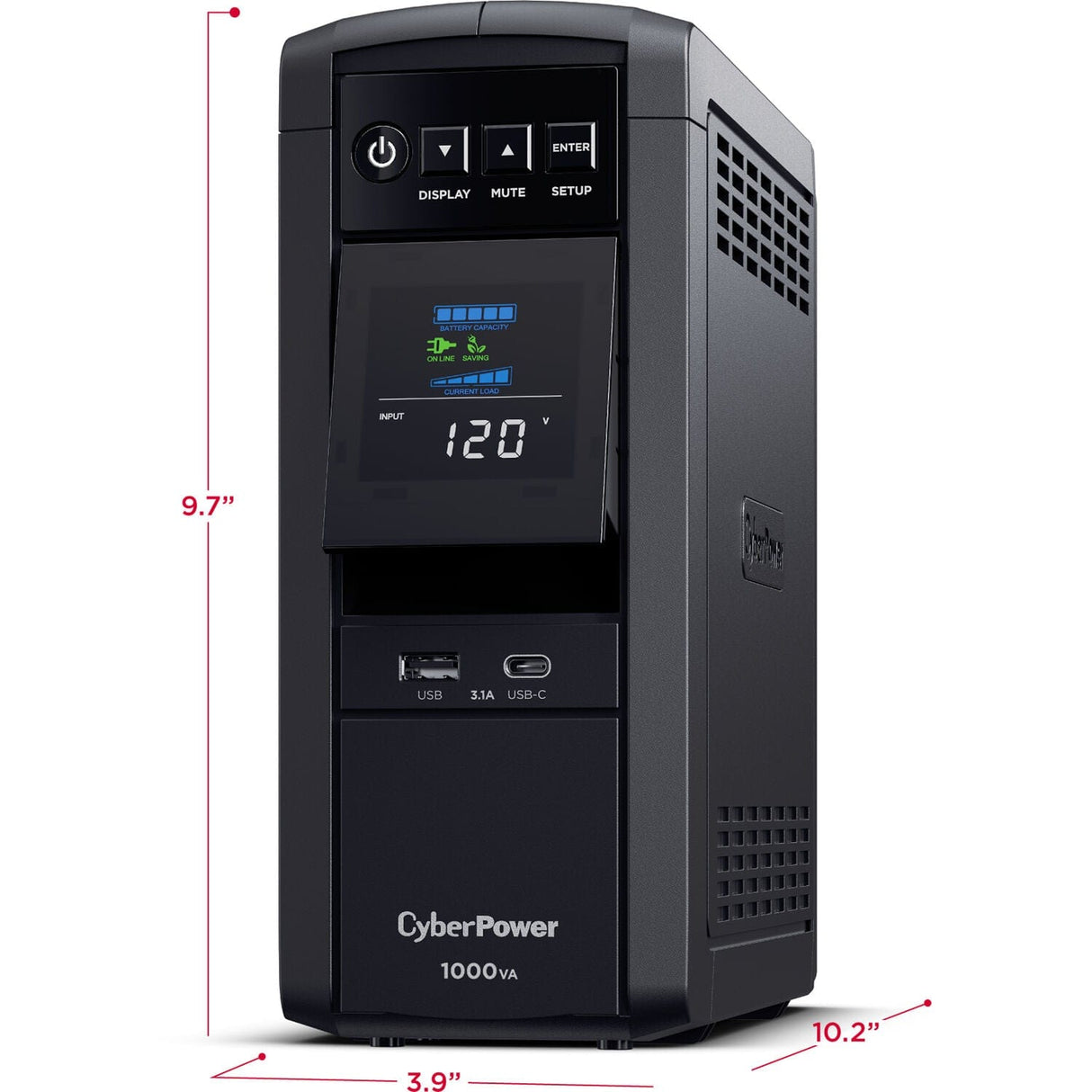

| Dimensions (WxHxD) (in.) | 3.9 x 9.1 x 10.4 |
| Weight (lbs.) | 15.9 |
| ENVIRONMENTAL | |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Operating Relative Humidity | 0% - 90% (non-condensing) |
| CERTIFICATIONS | |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS Complian |
|
Packaging Info |
|
| Package Weight | 16.49 lb |
| Box Dimensions (LxWxH) | 14.3 x 13.5 x 6.6" |
