CyberPower EC650LCD-R 650VA/390W 8 Outlets ECO LCD UPS - New Battery Certified Refurbished
Description
CyberPower EC650LCD-R 650VA/390W 8 Outlets ECO LCD UPS - Certified Refurbished
Description

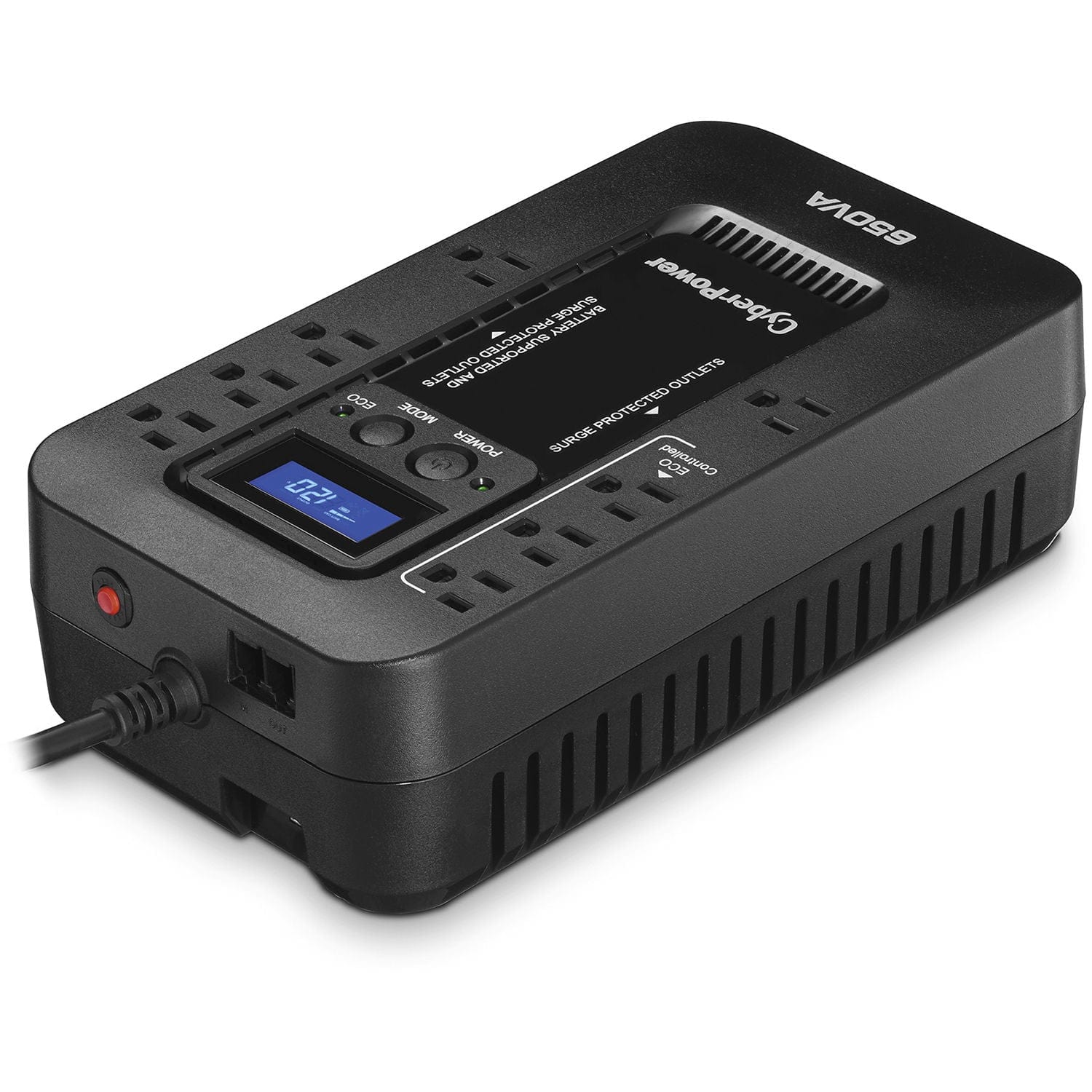

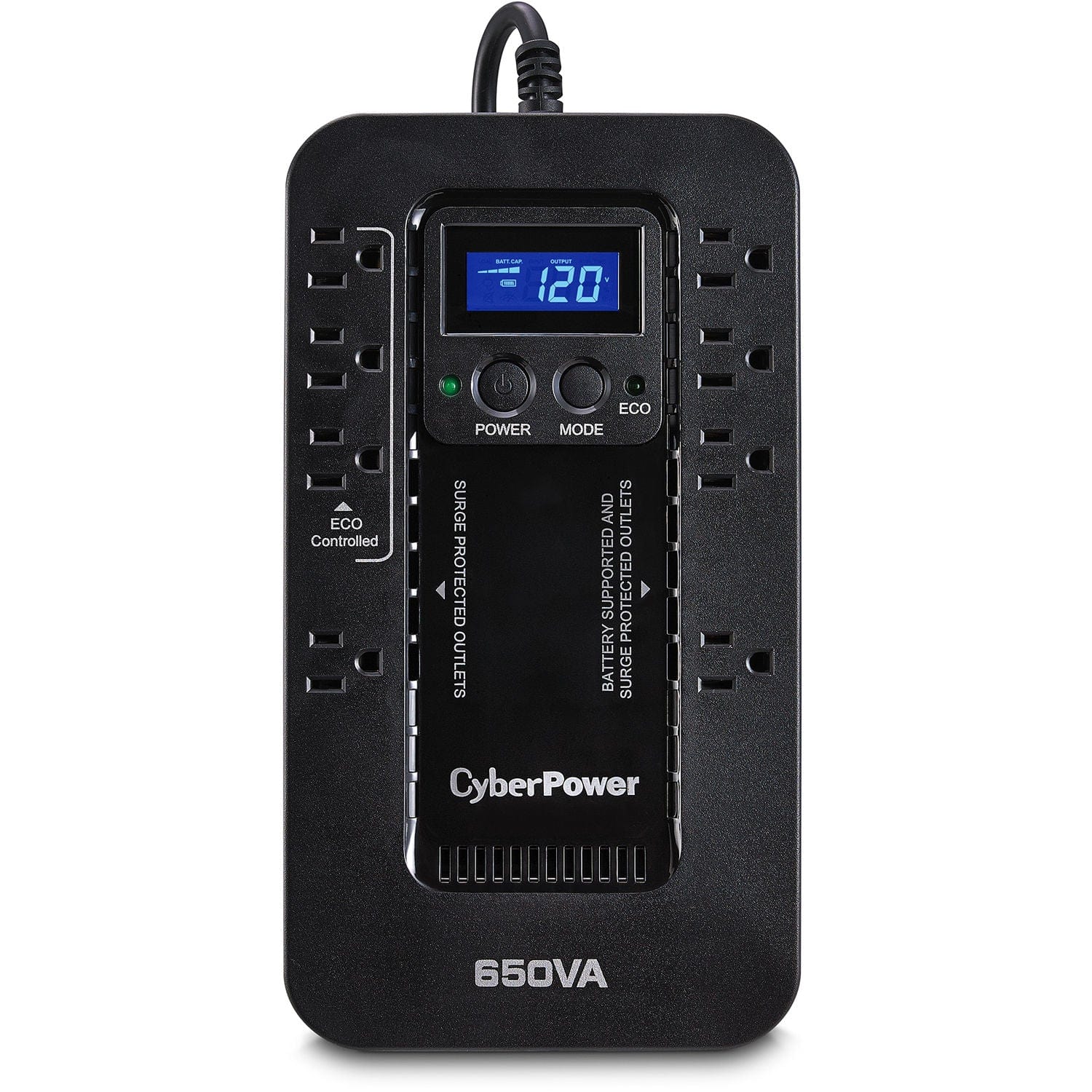

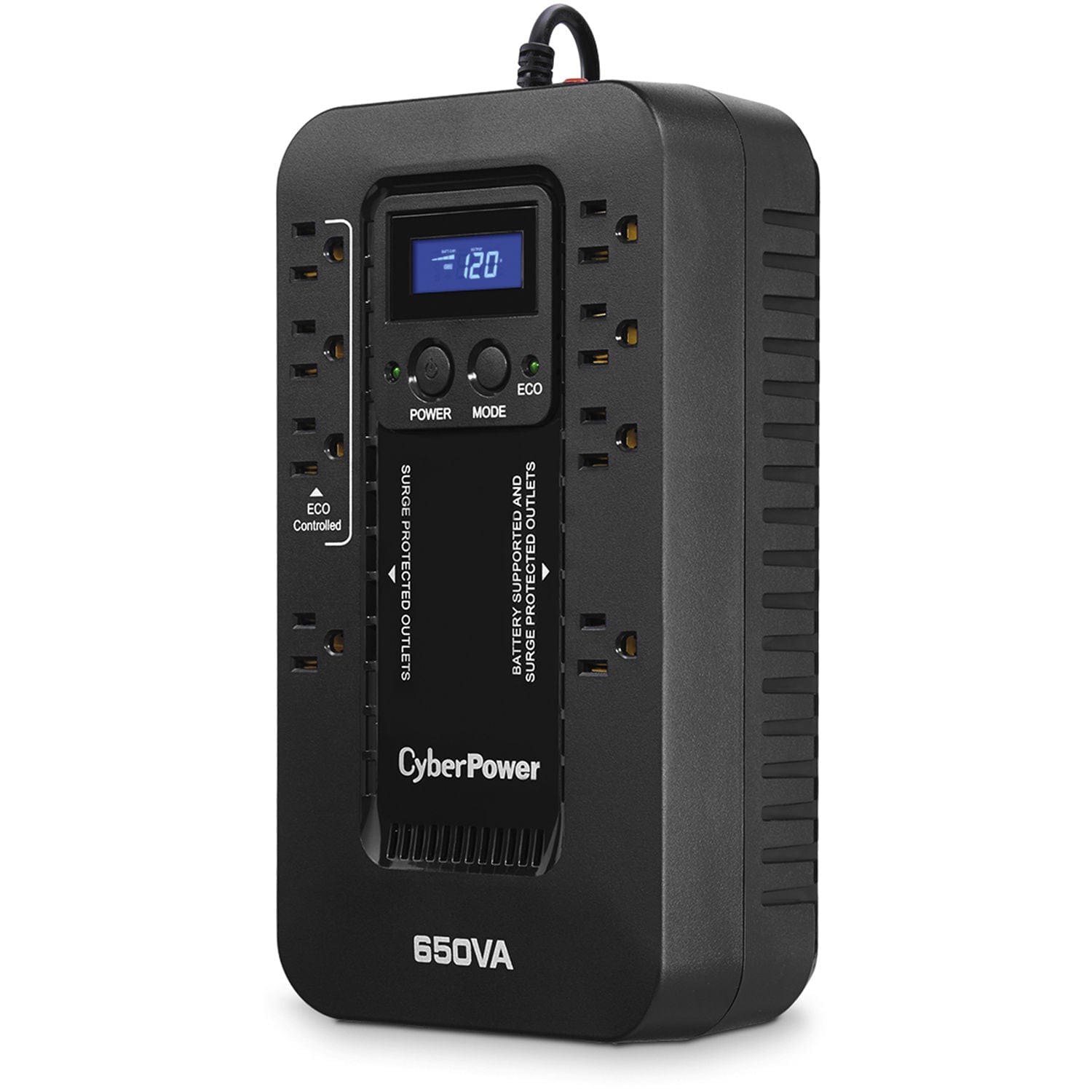

The EC650LCD Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with eight electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with four battery- and surge-protected outlets and four surge-only protected outlets, providing both surge protection and battery backup in the case of a power interruption. The integrated LCD display lets you view a variety of characteristics within the UPS, including input and output voltage levels, battery capacity, load capacity, and more. The included sealed lead-acid battery comes with a typical recharge time of 8 hours along with a 10.7 minute run time at 160W and 2.8 minutes at 325W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower's own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and safely shut down the PC when the backup battery is depleted.ECO Mode
The user selectable ECO mode removes power to computer peripherals connected to the ECO designated outlets when the UPS detects the computer, connected to the UPS via USB, is turned off or in sleep mode. This results in additional cost savings by eliminating the power consumption of idle devices.
Intelligent Multifunction Diagnostic Display
With an integrated front panel display, you can view multiple UPS vitals including input voltage level, output voltage level, battery capacity, runtime estimate, load capacity, normal mode, battery mode, overload, and silent mode.
Energy-Saving Technology
This ENERGY STAR qualified UPS system utilizes CyberPower's own patented GreenPower UPS High Efficiency design to reduce power consumption by increasing power efficiency to greater than 98% to save costs and reduce emissions.
Ultra-Quiet Operation
This uninterruptable power supply comes with reduced sound emissions.
EMI/RFI Filters
Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
Transformer-Spaced Outlets
Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
USB Connectivity
The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS.
Convenient Mounting
Compact size for mounting horizontal or vertical.
LED Indicators
LED status lights indicate Power-On and ECO on/off.
Audible Alarms
Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
Resettable Circuit Breaker
The user may use this convenient unit reset switch in case of an overload.
PowerPanel Personal Edition
In the event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screen display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
Windows Compatibility
The included PowerPanel power management software has been fully tested and is compatib
Specifications
|
General
|
|
| Total Outlets | 8 (2 Transformer-Sized) |
| Protected Outlets | 4 (Battery and Surge) |
| 4 (Surge Only) | |
| Plug Type | NEMA 5-15P Offset Right-Angle |
| Topology | Standby |
| Transfer Time | 4 ms |
|
Power
|
|
| Surge Energy Rating | 526 Joules |
| Maximum Wattage | 390 W |
| Input Voltage Adjustable Range | 96 to 140 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 50/60 Hz ± 1% (Auto Sensing) |
| Load Capacity | 650 VA |
| Waveform | Simulated Sine Wave |
|
Battery
|
|
| Chemistry | Lead-Acid |
| Full-Load Runtime | 2 Minutes |
| Half-Load Runtime | 8 Minutes |
| Recharge Time | 8 Hours |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Storage Humidity | 0 to 95% |
| Operating Altitude | 10,000' / 3000 m |
| Storage Altitude | 50,000' / 15,000 m |
| Certifications | RoHS |
| *as per Manufacturer | |
|
Physical
|
|
| Cable Length | 5' / 1.5 m |
| Rackmount Size | None |
| Dimensions (W x H x D) | 10.6 x 3.1 x 5.9" / 26.9 x 7.9 x 15 cm |
| Weight | 6.4 lb / 2.9 kg |
|
Packaging Info
|
|
| Package Weight | 7.2 lb |
| Box Dimensions (LxWxH) | 13.5 x 8.25 x 4.4" |
