CyberPower LX1325GU 1325 VA / 810 W 10 Outlets Battery Backup UPS - New Battery Certified Refurbished
CyberPower LX1325GU-R 1325 VA / 810 W 10 Outlets Battery Backup UPS - Certified Refurbished
A mini-tower UPS with line interactive topology, the CyberPower LX1325GU provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems.
The LX1325GU uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports power portable devices such as mobile phones and tablets, even during a utility power failure.
- Capacity: 1325 VA / 810 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord

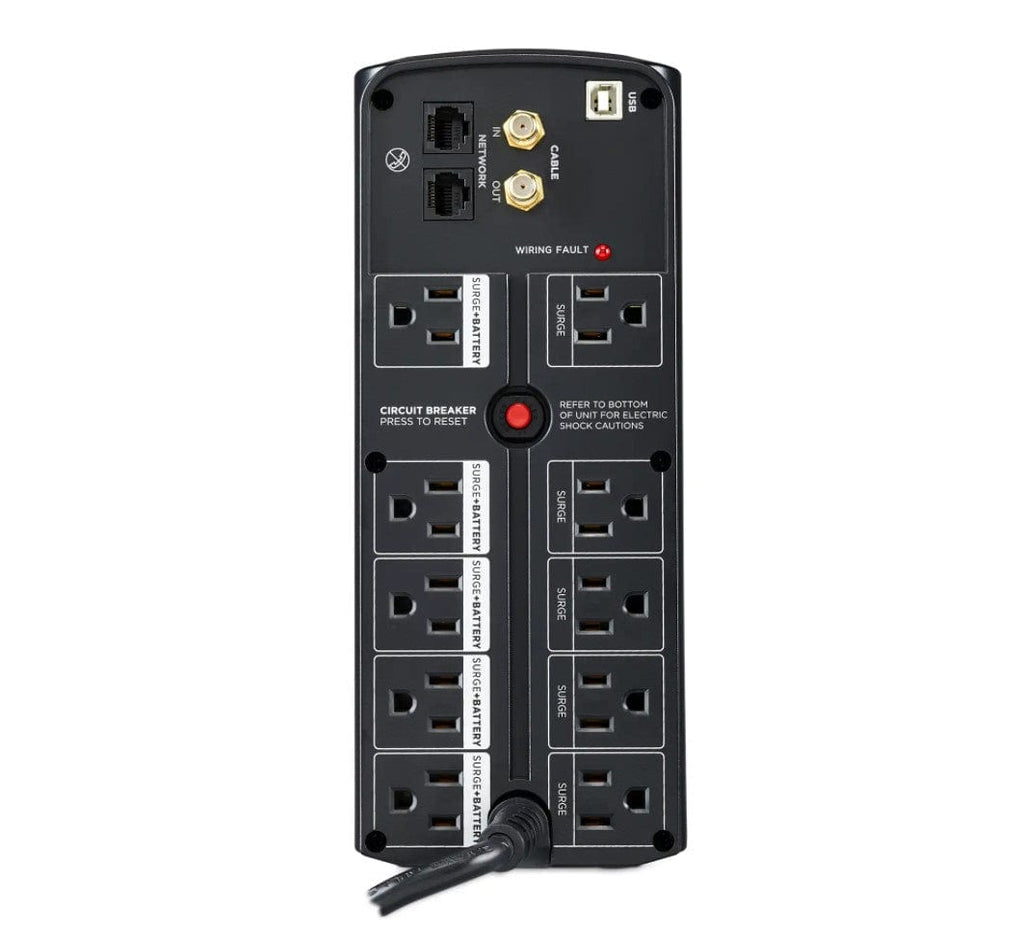

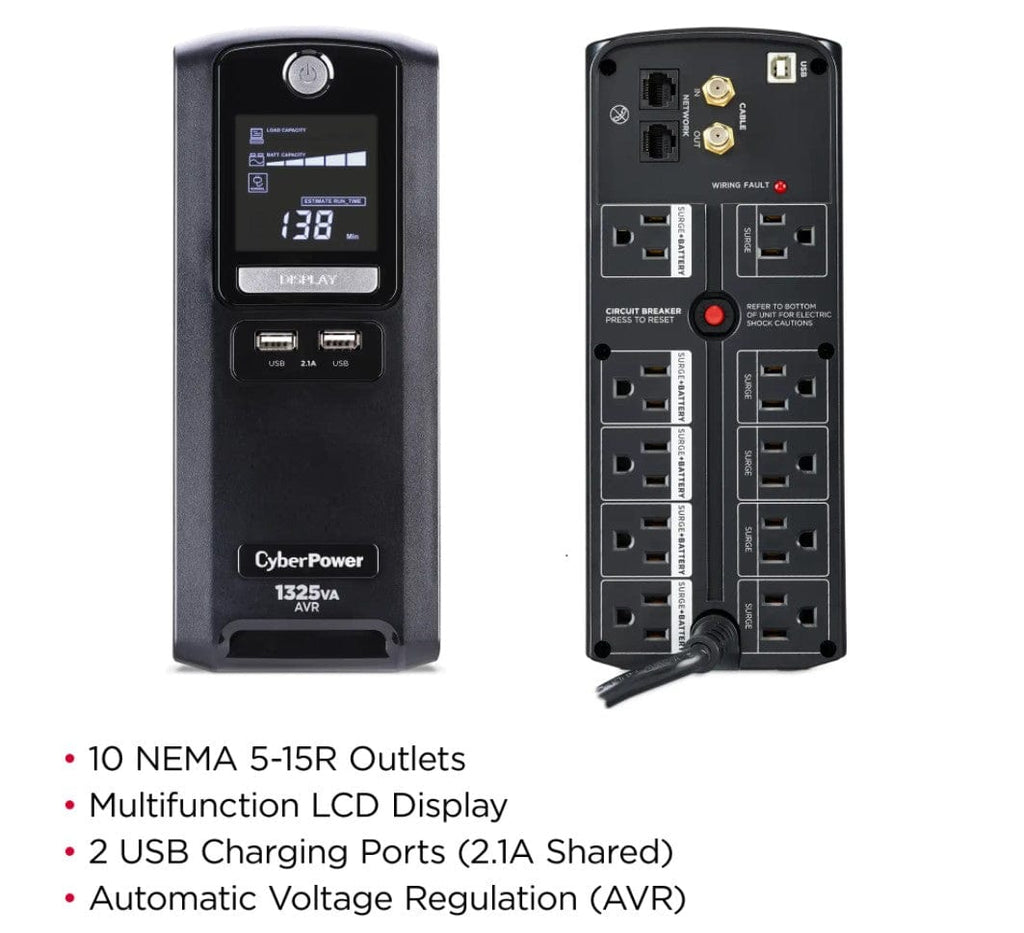

- Outlets: 10 (5 surge, 5 surge + battery backup)
- Data line protection: Network, Coaxial
- Management software: PowerPanel® Personal
- ENERGY STAR®certified: Yes
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Automatic Voltage Regulation (AVR)
AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
USB Charge Ports
Rapidly charge and power USB devices.
Data Line Protection
Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
Widely Spaced Outlet(s)
The widely-spaced outlet allows you to conveniently add transformer-sized plugs without blocking other outlets.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Simulated Sine Wave Output
Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
GreenPower UPS™ Bypass Design
A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software
|Energy Saving||GreenPower UPS™ Bypass Technology|
|Energy Star Certified||Yes|
|UPS Topology||Line Interactive|
|Battery Size||12 V / 7 Ah|
|Battery Type||Sealed Lead-Acid Battery|
|Replacement Battery Cartridge||RB1270X2C|
|Replacement Battery Cartridge Quantity||1|
|Runtime at Full Load||2 min|
|Runtime at Half Load||10 min|
|Typical Recharge Time||8 Hours|
|User Replaceable Battery||Yes|
|Cord Length||6 ft (2 m)|
|Input Frequency Range||57 Hz – 63 Hz|
|Input Plug Type||NEMA 5-15P|
|Nominal Input Voltage||120 VAC|
|Plug Style||Right Angle – 45° Offset|
|Automatic Voltage Regulation||Single Boost|
|On Battery Frequency||60 Hz ± 1%|
|On Battery Voltage||120 VAC ± 5%|
|On Battery Waveform||Simulated Sine Wave|
|Outlet Type||NEMA 5-15R|
|Outlets – Battery & Surge Protected||5|
|Outlets – Surge-Only Protected||5|
|Outlets – Total||10|
|Outlets – Widely Spaced||2|
|Overload Protection||Internal Circuitry Limiting|
|Circuit Breaker Protected|
|Typical Transfer Time||4 ms|
|USB Charge Port Amperage||2.1 Amps (Shared)|
|USB Charge Port Quantity||2|
|Surge Protection & Filtering|
|Coax Protection RG6||1 in|
|Network Protection RJ45||1-in / 1-Out (10/100/1000)|
|Surge Suppression (Joules)||890 J|
|Management & Communications|
|Audible Alarms||Battery Mode|
|HID Compliant USB Port||Yes|
|LED Indicators||Power On|
|Management Cable||USB Cable|
|Software (Free Download)||PowerPanel® Personal|
|Physical Dimensions – (WxHxD) (cm)||9.91 x 24.89 x 34.8 (cm)|

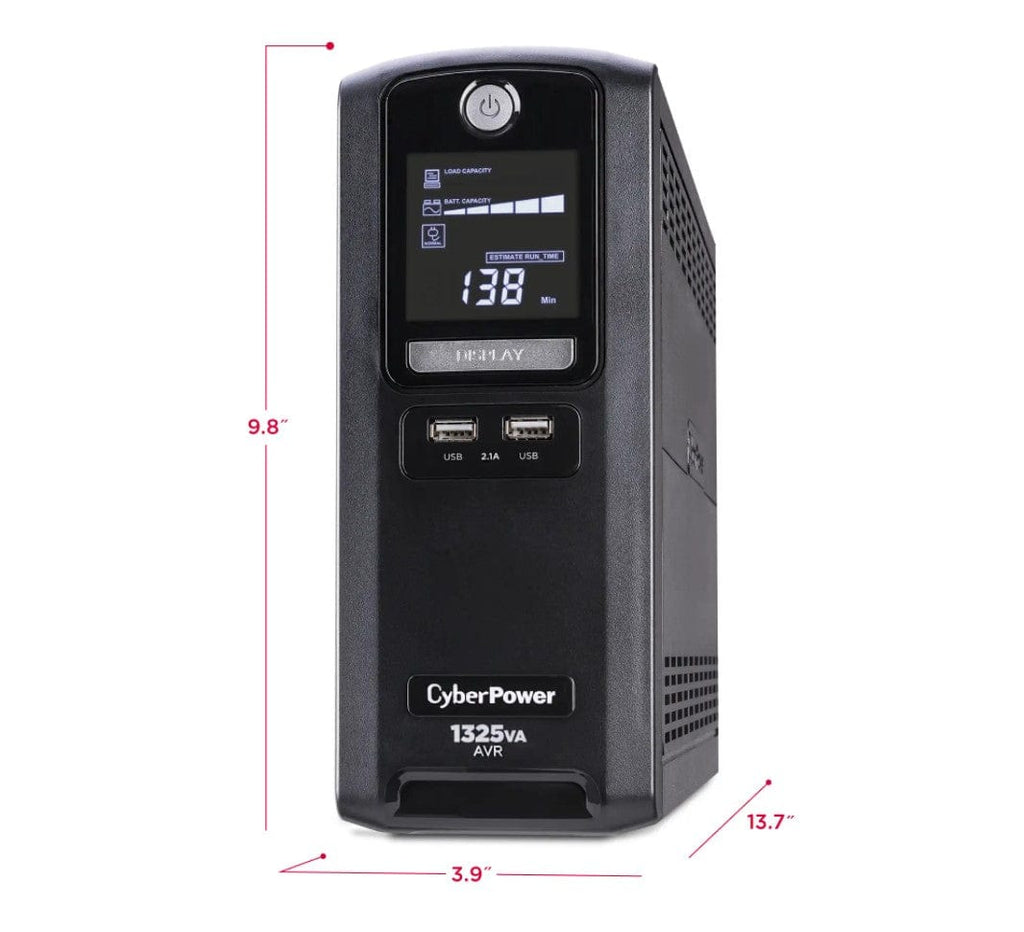

|Physical Dimensions – (WxHxD) (in)||3.9 x 9.8 x 13.7 (in)|
|Physical Dimensions – (WxHxD) (mm)||99 x 249 x 348 (mm)|
|Dimensions – Shipping|
|Shipping – Weight (kg)||10.52|
|Shipping – Weight (lb)||23.2|
|Shipping Dimensions – (WxHxD) (cm)||18.42 x 32.39 x 43.18 (cm)|
|Shipping Dimensions – (WxHxD) (in)||7.25 x 12.75 x 17.0 (in)|
|Shipping Dimensions – (WxHxD) (mm)||184.15 x 323.85 x 431.8 (mm)|
|Operating Elevation||0 – 10000 ft (0 – 3048 m)|
|Operating Relative Humidity||0 – 90 % (non-condensing)|
|Operating Temperature||32 – 104 °F (0 – 40 °C)|
|Storage Elevation||0 – 50000 ft (0 – 15239 m)|
|Storage Temperature||5 – 113 °F (-15 – 45 °C)|
|FCC DOC Class B|
