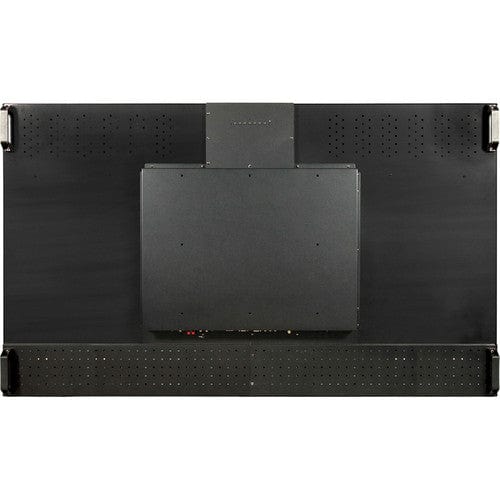

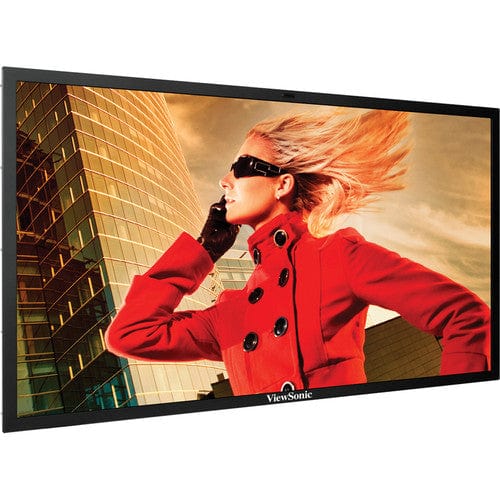

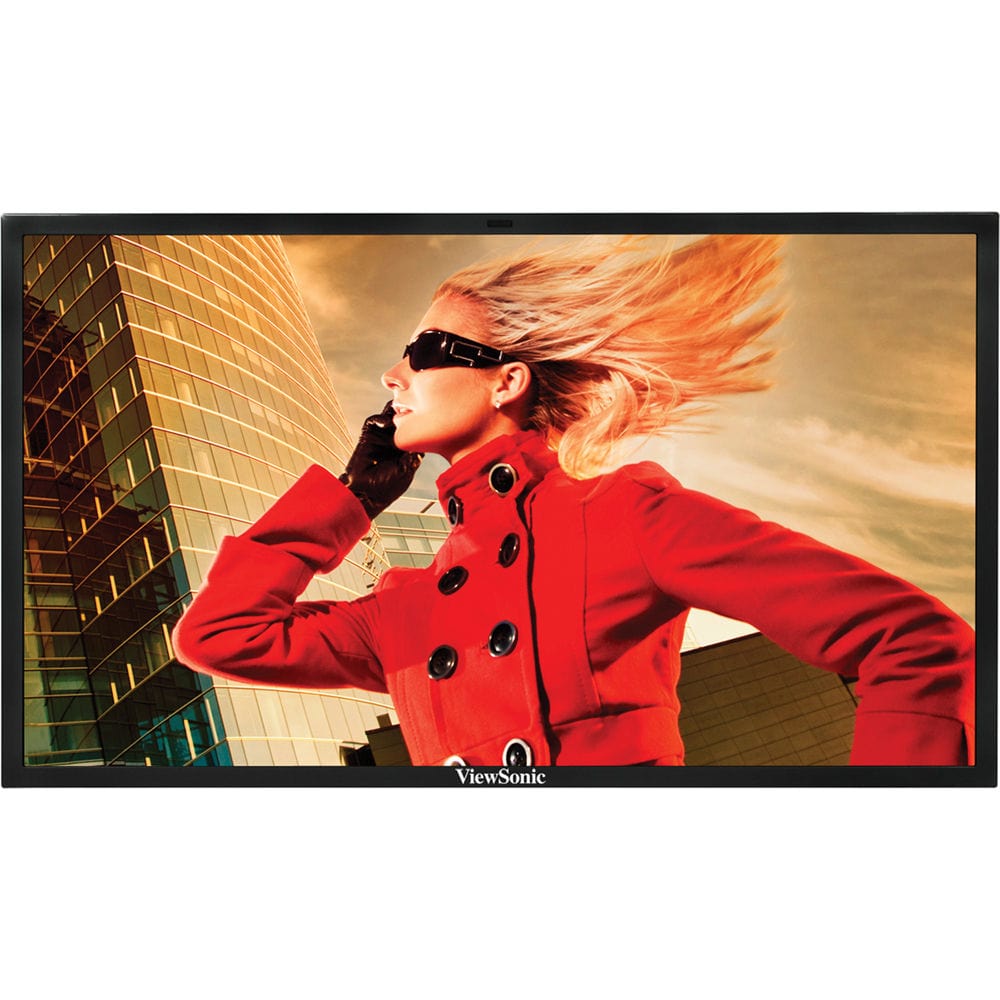

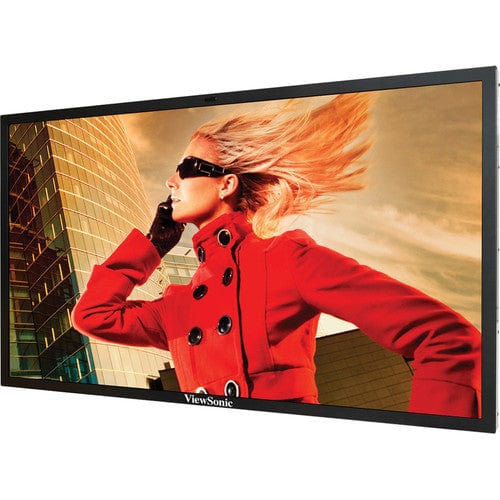

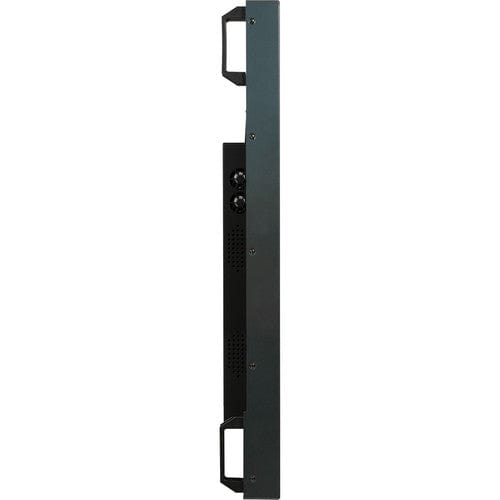

ViewSonic CDP6530-S 65" LCD Commercial Display - Certified Refurbished
Description
ViewSonic CDP6530-S 65" Commercial LCD Display - Certified Refurbished
Description
Viewsonic's CDP6530 65" Commercial LCD Display offers a resolution of 1920 x 1080, brightness of 500 nits, contrast ratio 20,000:1, and an aspect ratio of 16:9. Featuring a 178° (H/V) viewing angle, it provides high-quality images at any height. The monitor is ideal to be used in a digital signage system to display movies, Internet pages, PowerPoint, and Flash files.
Equipped with VGA, DVI, HDMI and S-video inputs/outputs, the CDP6530 Commercial LCD Display offers flexible connectivity and control. In addition to 2 built-in 12W speakers, the monitor has a screensaver that prevents image-sticking due to prolonged display of a static image.
Lastly, the CDP6530 can be used to make up to a 5 x 5 video wall display for larger visual applications.
Features
- 1080p Resolution
- Designed for 24/7 Operation
- 5 x 5 Display Video Wall Capability
- HDMI x 1
- 1080p, 8ms LED panel for vibrant images using up to 35% less power than standard CCFL displays
- 7" (42.3mm) bezel with 5 x 5 display video wall capability
- Versatile inputs include - HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-video and composite video
- Designed for 24/7 operation with 500 nits brightness and a 20,000:1 dynamic contrast ratio
- The unit is RS-232 daisy-chain capable

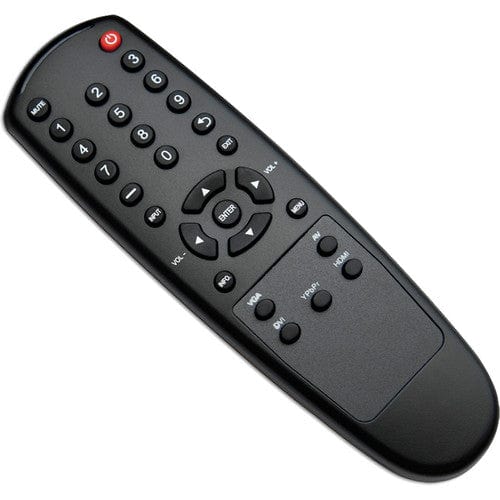

- Remote and panel control lock out
- Built-in 12W x 2 speakers
- Installation options include stand or VESA wall mount
Specifications
| Type | 65" color TFT active matrix, wide LCD |
| Display Area | 56.2" (127.5mm) horizontal x 31.6" (802.6mm) vertical; 64.6" (1640.8mm) diagonal |
| Resolution | 1920 x 1080, 23.6" (600mm) dot pitch |
| Contrast Ratio | 20,000:1 (typ) |
| Viewing Angle | 178º horizontal, 178º vertical |
| Response Time | 8ms |
| Light Source | Long life, 50,000 hrs. (typ) |
| Brightness | 500 nits (typ) |
| Aspect Ratio | 16:09 |
| Panel | Anti-glare, hard coating (3H) |
| Input | Video Input: HDMI x 1, DVI x 1, component x 1, VGA x 1, , S-video x 1, CVBS (BNC) x 1 |
| Video Output: VGA x 1, component x 1, DVI (loop through) x 1 | |
| Control: RS-232 x 1 | |
| Amplifier | 12W/8 ohm |
| Analog | 15-pin mini D-sub (VGA) x 1 |
| Digital | HDMI x 1, DVI x 1 |
| Power | 3-pin plug x 1 |
| Voltage | AC 100-240V (universal), 50/60Hz |
| Consumption | 520W (typ) |
| Input Signal | TV/video comp. 480i, 480p, 720p, 1080i, 1080p |
| Operating Conditions | Humidity: 20-90% (non-condensing) |
| Temperature (landscape): 32-104ºF (0-40ºC) | |
| Temperature (portrait):41-95ºF (5-35ºC) | |
| Resolutions | 640 x 480 @ 60-75Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x 768 @ 60Hz, 1280 x 1024 @ 60Hz, 1600 x 1200 @ 60Hz, 1920 x 1080 @ 60Hz (recommended resolution) NTSC, SECAM, 4.43 NTSC component: 480i, 480p, 720p, 1080i, 1080p |
| Regulations | FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS |
| Wall Mount | VESA 200 x 400mm, 400 x 400mm |
| Dimensions (WxHxD) | 59.3 x 35.4 x 5.3" (1500 x 900 x 136mm) |
| Weight | 154.3 lb. (70kg) |
