ViewSonic EP2203R-S 22" All-in-One Digital ePoster – Refurbished
Description
The Viewsonic EP2203r 22” (21.5” Viewable) All-in-One Digital ePoster is designed for impactful in-store digital signage. It can be easily configured for vivid retail messaging via its internal media player, or via connection to an external media player (sold separately). In addition, multimedia JPEG, music, or video content can be uploaded to the EP2203r using a USB thumb drive (sold separately), or over a network using an external media player (sold separately).
With a 100 x 100 mounting pattern on the back panel, the flexible EP2203r Digital ePoster can be mounted in portrait or landscape orientation and features a full edge-to-edge tempered glass faceplate. This display is useful in high-visibility locations such as retail settings, banks, and universities. Content scheduling and management software (MS Windows compatible) is included for the control of your corporate branding and targeted messaging.
Features
22" (21.5" Viewable), Full HD 1920 x 1080 Display Resolution
Delivers stunning clarity and color performance with full HD resolution
LED Backlight with 3000:1 Contrast Ratio
LED backlighting enhances display performance and delivers an outstanding color range, while a brilliant 3000:1 contrast ratio provides for detailed images
Internal Media Player Supports Multimedia Content
Built-in media player makes sharing of vivid retail messaging a breeze
Simple Content Loading
Multimedia JPEG, music, or video content can be quickly and easily uploaded using a USB thumb drive (sold separately), or over a network using an external media player (sold separately)
Connect to an External Media Player or PC
Easily add a 3rd party media player or PC with the integrated HDMI and VGA inputs
Integrated Speakers
Pair of 2W integrated speakers are suitable for multimedia applications, videos, and audio-enabled display messaging

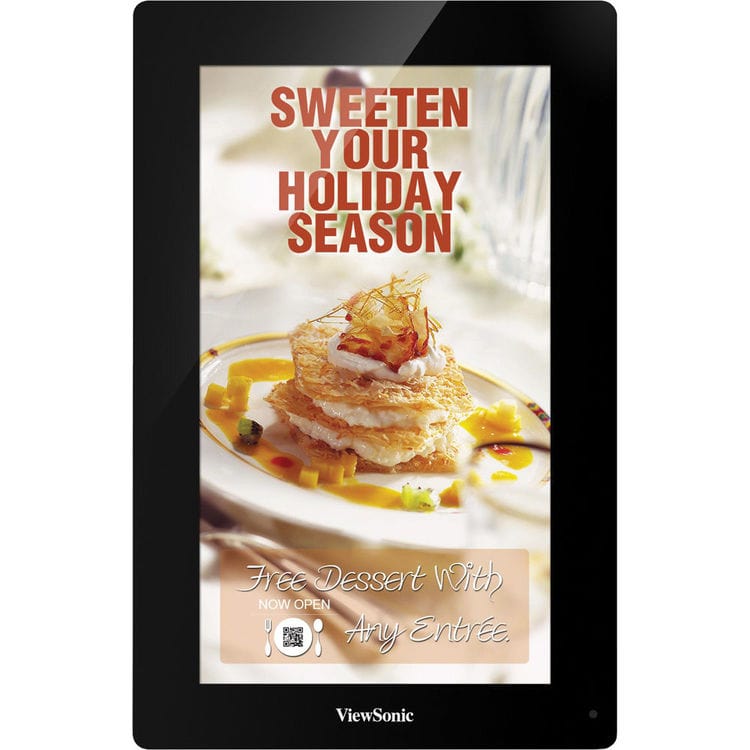

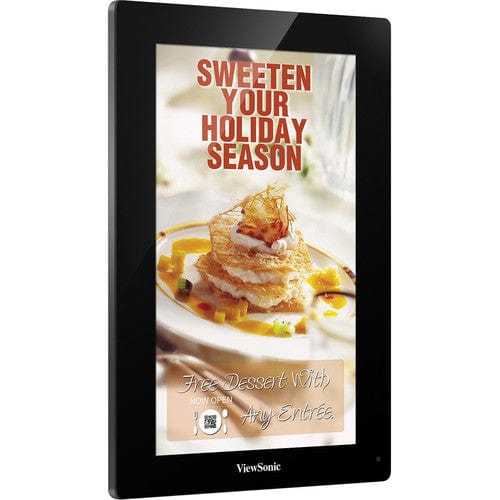

Portrait or Landscape Mountable

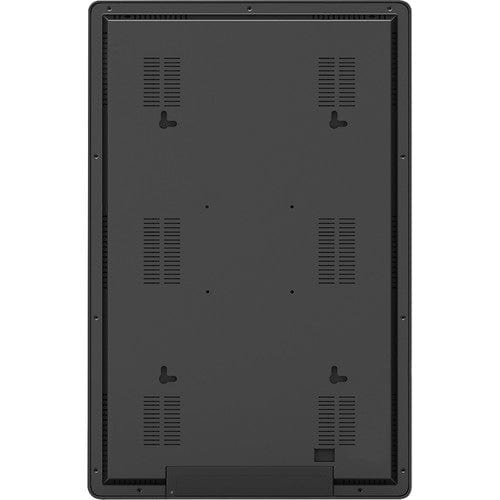

VESA wall mountable (100 x 100mm) in either portrait or landscape orientation for display flexibility in a variety of settings
Applications
- Retail advertising in high visibility locations
- Informational signs for hotel lobbies and public locations
- Advertising boards for banks and university campuses
Specifications
| LCD Panel | |
| Type | 22.00" (55.88 cm) (21.50" (54.61 cm) viewable) color TFT active matrix LCD with white LED backlight |
| Display Area | Horizontal: 18.80” (47.75 cm) |
| Vertical: 10.60” (26.92 cm) | |
| Diagonal: 21.50” (54.61 cm) | |
| Optimum Resolution | 1920 x 1080 |
| Contrast Ratio | 3000:1 (typical) |
| Viewing Angles | 170º horizontal, 160º vertical |
| Response Time | 8 minutes |
| Backlight | White-light LED |
| Backlight Life | 50,000 hours (typical) |
| Brightness | 250 cd/m2 (typical) |
| Aspect Ratio | 16:09 |
| Panel Surface | Anti-glare, hard coating (3 H) |
| Input Signal | |
| Input Signal | TV/Video Comp: 480i, 480p, 720p, 1080i, 1080p |

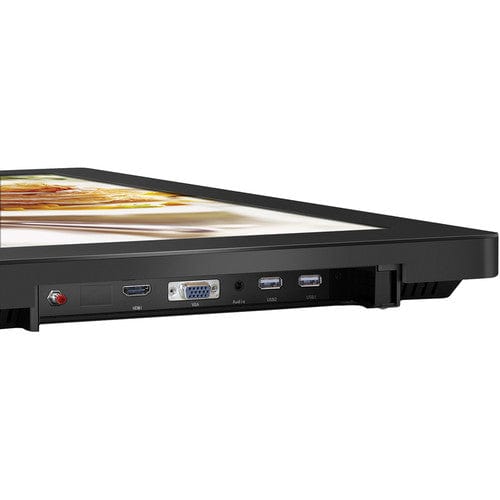

| Connectors | |
| Analog | 1 x VGA 15-pin mini D-sub |
| Digital | 1 x HDMI |
| Audio In | 1 x 3.5 mm mini jack |
| USB | 2 x Type B |
| Power | 3-pin plug |
| Audio Output | |
| Speakers | 2 x Internal 2 W |
| Power | |
| Voltage | AC 100 to 240 V (universal), 50 to 60 Hz |
| Consumption | 62 W (typical) |
| Controls | |
| System Settings | Language, Clock Display, Scrolling Text, USB Port, Return to Factory Settings |
| Playback Control | Storage Priority, Playback Mode, Play Time |
| Date & Time | Year, Month, Day, Hour, Minute, Update Date & Time |
| Timer | On / Off Timer: Timer Mode, Daily, Sunday to Saturday |
| ID | Local ID: ID, Save |
| Screen Mode | Vertical, Horizontal, Save, and Reboot |
| Management | File Management: Information, Format |
| Source | HDMI, VGA, Internal Storage |
| Image | Brightness, Contrast, Saturation, Color Temperature |
| Setting | PC Setting: Auto Adjust, H Position, V Position, Phase, Clock |
| Operating Conditions | |
| Temperature | 32 to122ºF (0 to 50ºC) (landscape) |
| Humidity | 20 to 90% (non-condensing) |
| Additional Specifications | |
| Wall Mount | VESA 100 x 100 mm |
| Regulations | FCC, UL, cUL, RoHS Green BOM List, & RoHS DoC |

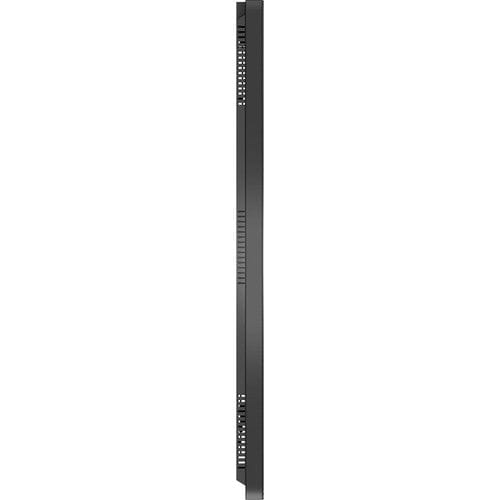

| Dimensions (W x H x D) | 23.10 x 14.90 x 1.30" (58.67 x 37.85 x 3.30 cm) |
| Weight | 17.60 lb (7.98 kg) |
| Packaging Info | |
| Package Weight | 22.4 lb |
| Box Dimensions (LxWxH) | 26.5 x 19.0 x 4.5" |
