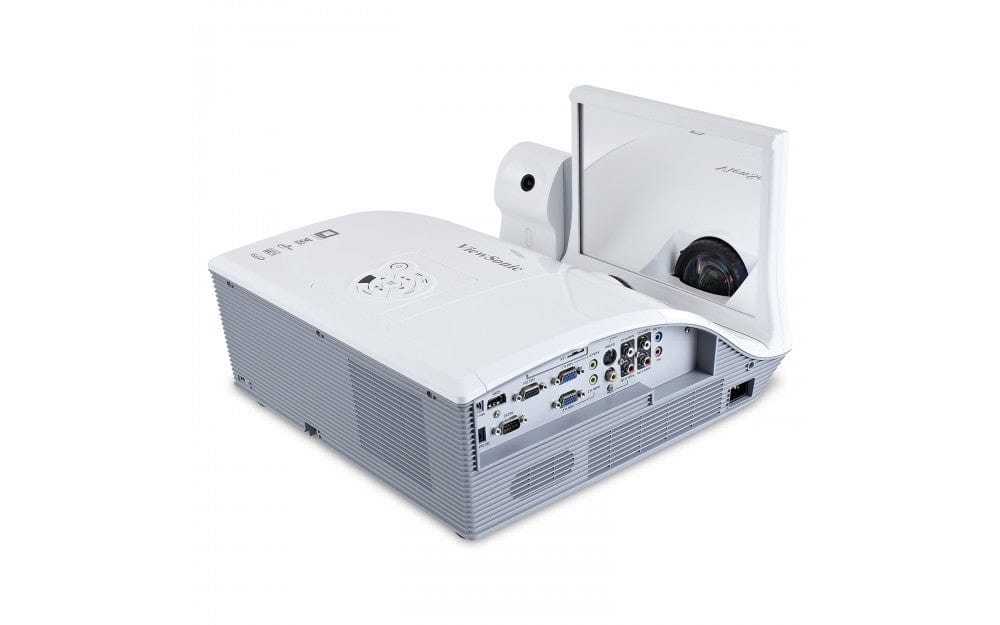

ViewSonic PJD8653WS-S 3000 Lumens WXGA HDMI Projector - Refurbished
Description
ViewSonic PJD8653WS-S 3000 Lumens WXGA HDMI Projector - Refurbished
Features
- Ultra short throw WXGA DLP projector
- Optional dual interactive pen and software
- 3,000 ANSI lumens
- HDMI, LAN control & monitor, 16w speaker
Description
The ViewSonic PJD8653ws is a WXGA DLP ultra short throw projector that delivers large, widescreen, interactive presentations from a short distance. With an optional interactive package, the PJD8653ws supports dual interactive pens for collaborative teaching and turns any surface into an interactive whiteboard. Dual pens and the ViewDraw2 software allows two users to simultaneously write, draw, or annotate, making presentations more engaging than ever. With an ultra short throw lens, the PJD8653s is great for use in small areas with space constraints—it can project an 81" image from only 2 feet away. Built with BrilliantColor technology, this projector produces vibrant colors, while 3,000 ANSI lumens and 15,000:1 contrast ratio deliver sharp images. Equipped with Crestron LAN controller, the PJD8653ws makes it easy for IT admin to remotely control and manage multiple projectors from their workstations. Certified with AMX Device Discovery, the PJD8653ws easily integrates into any size campus or enterprise. In addition, the PJD8653ws is packed with advanced features including HDMI, two integrated 8-watt speakers, keystone correction, and DynamicEco. The PJD8653ws is the perfect projector to deliver large, wide-format images within small spaces in need of an interactive whiteboard feature.*
Large Images in Small Spaces
- Short Throw Projector
A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector’s light source is closer to the projection surface.
Dual Interactive Pens
- Interactivity Annotate, write & draw

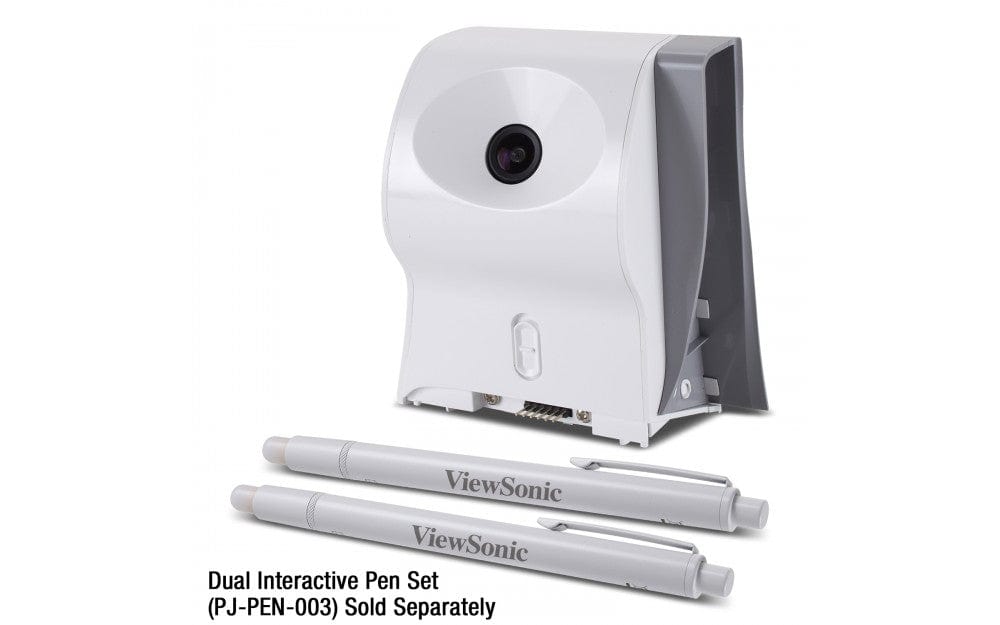

With the optional interactive package, PJ-PEN-003, this projector becomes an interactive tool that transforms any surface into an interactive whiteboard. With the dual interactive pens and the included ViewDraw2 software, two users can simultaneously annotate, write, or draw on the projected image to interact with the content and share ideas.
3D Blu-ray Ready HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Product Specifications
| General: | |
| Replacement SKU: PS750W | |
| UPC: 766907667516 | |
| Display: | |
| Type: | DLP Lamp |
| Resolution: | 1280 x 800 |
| Brightness (Lumens): | 3,000 ANSI |
| Display Size (in.): | 47 - 150 in. / 1.2 - 3.8 m |
| Throw Distance: | 1.7 – 2.6 ft. / 0.5 – 0.8 m |
| Throw Ratio: | 0.35 |
| Keystone: | Vertical digital keystone correction (± 20º) |
| Lens: | Fixed zoom / manual optical focus |
| Light Source (watt): | 240 |
| Light Source Life, Normal (hours): | 3500 |
| Light Source Life, Dynamic Eco-Mode (hours): | 7000 |
| Color Depth: | 30 bits, 1.07B Color (10+10+10) |
| Color Wheel: | 6-seg RGBCYW |
| Color Wheel RPM: | 7200 |
| Dynamic Contrast Ratio: | 15,000:1 |
| Aspect Ratio: | 16:10 |
| Video Signal: | |
| Frequency Horizontal: | 31–100KHz |
| Frequency Vertical: | 24–120Hz |
| Compatibility: | |
| PC Resolution (max): | 1600 x 1200 |
| Mac® Resolution (max): | 1600 x 1200 |
| Connector: | |

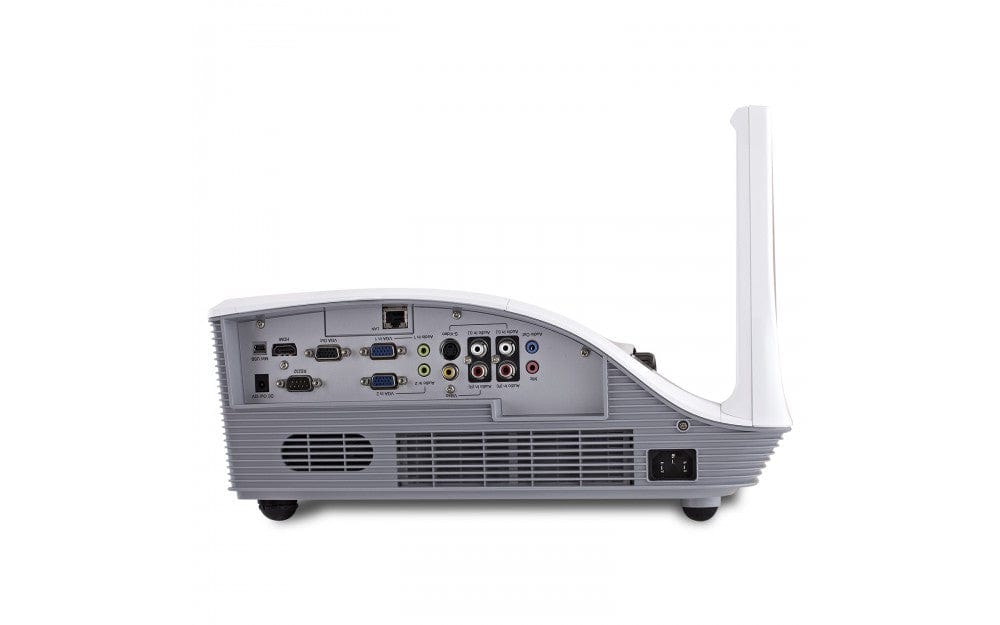

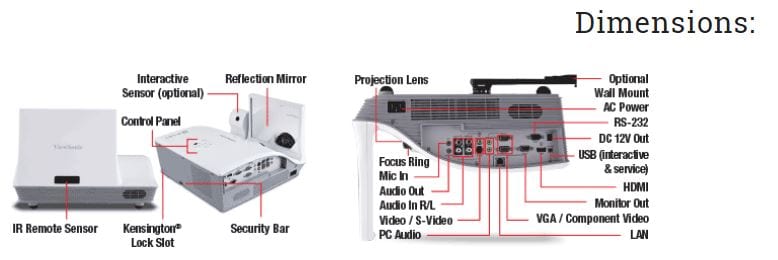

| Ethernet LAN (RJ45)(1), 3.5mm 12V Trigger(1), 3.5mm Audio Out(1), 3.5mm Audio In(2), Control (RS-232)(1), 3.5mm Mic In(1), HDMI(1), VGA In(2), VGA Out(1), Composite RCA Video In(1), Component Support(2 (Shared with VGA)), S-Video In(1), Mini USB(1), RCA Audio In (L/R)(1), RGB Input(15-pin mini D-sub (x2)) | |
| Audio: | |
| Internal Speakers: | 8W (x2) |
| Power: | |
| Voltage: | 100~240VAC (Auto Switching), 50-60Hz (universal) |
| Consumption (max): | 300W |
| Stand-by: | <0.5W |
| Controls: | |
| Physical Controls: | Power, keystone/arrow keys, left, menu/exit, right, source, enter |
| On Screen Display: | Picture, Video/Audio, Setting, Option, Language, Information(See user guide for full OSD functionality) |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 10-90% |
| Noise Level: | |
| Normal: | 34dB |
| Eco-Mode: | 32dB |
| Additional Hardware: | |
| Kensington Lock Slot: | 1 |
| Weight (imperial): | |
| Net Without Stand (lbs): | 16.1 |
| Gross (lbs): | 23.2 |
| Weight (metric): | |
| Net Without Stand (kg): | 7.3 |
| Gross (kg): | 10.5 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 18.3 x 14.0 x 17.7 |
| Physical Without Stand (in.): | 14.1 x 9.9 x 14.4 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 465 x 355 x 450 |
| Physical Without Stand (mm): | 357 x 231 x 367 |
| General: | |
| Regulations: UL/cUL, FDA (CDRH report), CB, FCC, TUV, GS+PAH,KC, TUV (IEC60825-1), CE EMC Report, CCC, PSB,NOM, GOST-R, C-tick | |
| PACKAGE CONTENTS: PJD8653ws projector, power cable, VGA cable, remote control with batteries, Quick Start Guide,ViewSonic Wizard DVD (with User Guide). | |
| Warranty: 90 days limited warranty on parts and labor. | |
| Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. | |
| Classification: Discontinued | |
| UPC: 766907667516 | |
| Accessories: | |
| PGD-350, PJ-CASE-009, PJ-PEN-003, PJ-PEN-003-S, PJ-WMK-401, RLC-082, WMK-027, WPG-370 | |
