ViewSonic SD-T225_BK_US0-S SD-T225 22" Integrated Desktop Computer LCD Thin Client Monitor - Certified Refurbished
Description
ViewSonic SD-T225_BK_US0-S SD-T225 22" Integrated Desktop Computer LCD Thin Client Monitor - Certified Refurbished
Description
Optimized for major remote networking protocols including Microsoft RDP with RemoteFX, Citrix HDX, and PCoIP for VMware View, the SD-T225 22" All-in-One Desktop Computer from ViewSonic affords users a versatile virtualization solution. Designed for business, education, healthcare, and government use, this thin client display provides a cleaner desktop with reduced cabling and clutter. The system is powered by a 1.0 GHz TI DM8148 Cortex A8 processor, 1GB of 1066 MHz DDR3 RAM, and 4GB of eMMC storage. The 22" (21.5" viewable) TFT LCD Anti-Glare Display display has a Full HD 1920 x 1080 resolution, LED backlighting, a 250 cd/m2 brightness, a 1,000:1 typical contrast ratio, a 20,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, a 5ms response time, a backlight life of up to 30,000 hours, dual 2W speakers, and a 16:9 aspect ratio. Also featured is tilting of -5 to 25°, a 340° swivel, a 90° pivot, and a height adjustment of 3.9". Network connectivity is achieved using a Gigabit Ethernet port and peripherals may be connected to this All-in-One using the four USB 2.0 ports. There is also a 15-pin mini VGA video input and a DVI-D video output. This system is powered using 90-240 VAC at 50-60 Hz. The SD-T225 operates using ARM Linux OS and is compatible with systems running Windows and Mac OS.Key Features
- All-in-One integrated thin client display with PC-like functionality
- TI 1 GHz ARM Cortex-A8 CPU and ARM Linux OS
- Dual display productivity
- Ergonomic design for comfort and productivity
- Simplified and secure management
Designed For
- Business: enterprise class computing
- Education: standardized testing, libraries, labs
- Healthcare: nurses' stations, HIPAA compliance
- Government: security and performance
Specifications
|
Processor
|
|
| CPU Processor | 1.0 GHz TI DM8148, Cortex A8 |
|
Graphics
|
|
| Chipset | None |
| Resolution | 1920 x 1080p (for single display) |
|
Memory
|
|
| System | 1 GB of 1066 MHz DDR3 RAM |
| Storage | 4 GB of eMMC |
|
Software
|
|
| OS | Linux |
| Management | ViewSonic Device Manager Pro |
| Protocols | Citrix Receiver HDX 12.5.1, VMware PCoIP, RDP 7.1 with RemoteFX |
|
Communication
|
|
| Ethernet | 10/100/1000 Mbps |
|
Display
|
|
| Type | Color Active Matrix TFT LCD |
| Display Area | 18.8" / 47.8 cm horizontal x 10.6" / 26.9 cm vertical; 21.5" / 54.6 cm diagonal |
| Resolution | 1920 x 1080 |
| Brightness | 250 cd/m2 (typ.) |
| Contrast Ratio | 1,000:1 (typ) |
| Dynamic Contrast Ratio | 20,000,000:1 |
| Viewing Angles | 170° horizontal, 160° vertical |
| Response Time | 5 ms |
| Backlight | LED |
| Backlight Life | 30,000 hours (min) |
| Panel Surface | Anti-glare, hard coating (3H) |
|
Video Input
|
|
| Analog | RGB Analog (0.7 / 1.0 Vp-p, 75 ohms) |
| Frequency | Fh: 24~82 kHz |
| Fv: 50~75 Hz | |
| Sync | Separate Sync |
|
Audio
|
|
| Speakers | 2 x 2 W |
|
Compatibility
|
|
| PC | VGA up to 1920 x 1080 non-interlaced |
| Mac | Up to 1920 x 1080 |
|

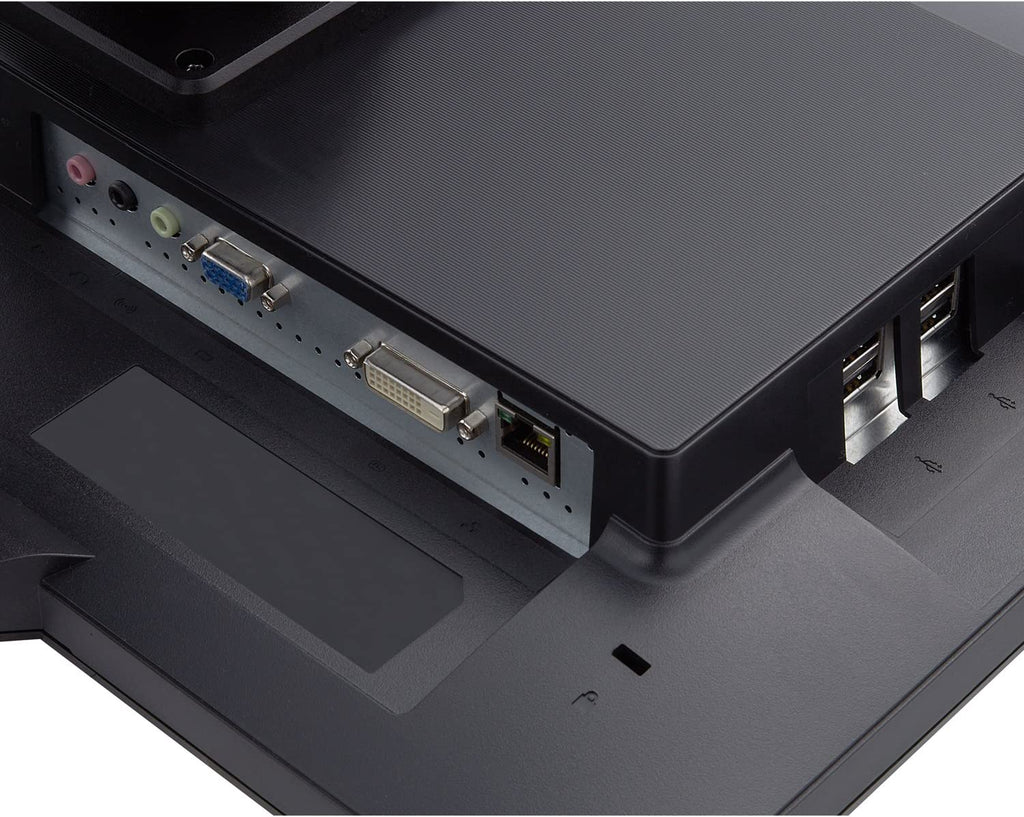

Connectors
|
|
| USB | 4 x USB 2.0 |
| Video In | 15-pin mini D-sub (VGA) |
| Video Out | DVI-D |
| LAN | RJ45 |
| Microphone In | 3.5 mm mini jack (red) |
| Headphone Out | 3.5 mm mini jack (green) |
| Line In | 3.5 mm mini jack (black) |
| Power | AC In |
|
Controls
|
|
| Basic | Client, 2, Down, Up, 1, Power |
| OSD | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| (See user guide for complete OSD functionality) | |
|
Power
|
|
| Voltage | 90-240 VAC (universal), 50-60 Hz |
| Consumption | 26 W (typ) |
| Optimize | 20 W (typ) |
| Conserve | 18 W (typ) |
|

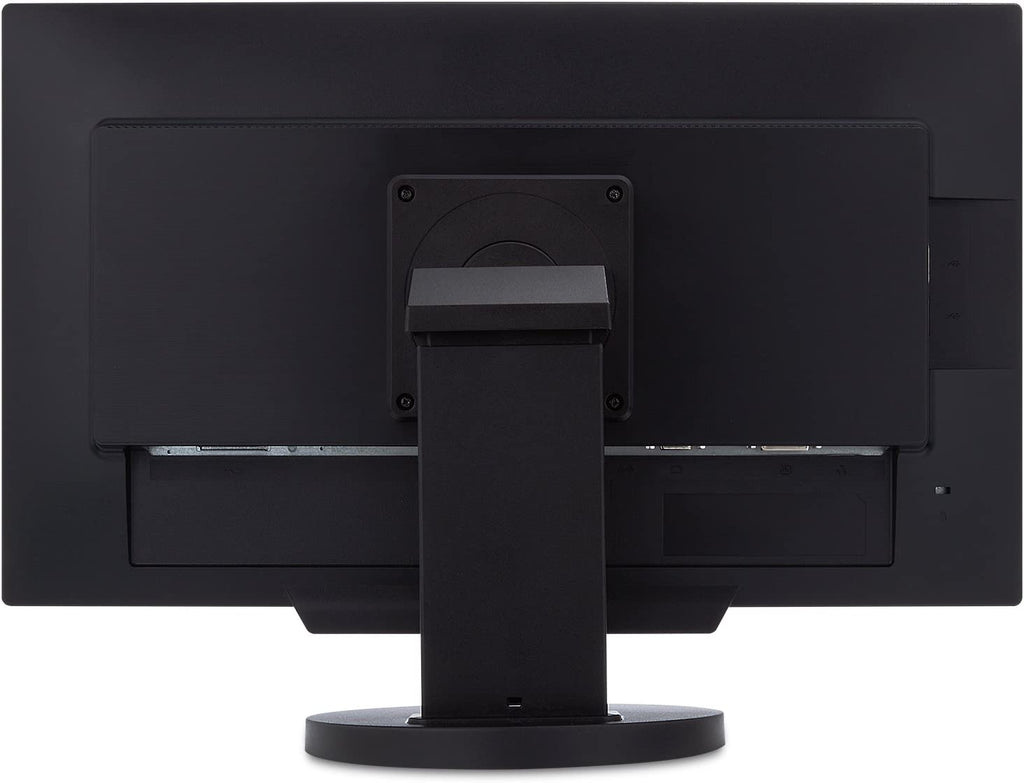

Ergonomics
|
|
| Tilt | Forward -5° / Back 25° |
| Swivel | 340° |
| Pivot | 90° |
| Height Adjustment | 3.9" / 100 mm |
|
Operating Conditions
|
|
| Temperature | 32 to 95°F / 0 to 35°C |
| Humidity | 15-90% (non-condensing) |
|
Wall Mount Bracket
|
|
| VESA | 100 x 100 mm |
|
General
|
|
| Regulations | CB, FCC, cTUVus, CE, WEEE, RoHS Compliant, REACH Compliant |
| Recycle / Disposal | Please dispose of in accordance with local, state, or federal laws |
|
Dimensions & Weight
|
|
| Dimensions | With stand: 20.17 x 14.46 x 8.01" / 512.4 x 367.4 x 204.3 mm |
| Without stand: 20.17 x 11.96 x 2.1" / 512.4 x 303.8 x 53.1 mm | |
| Weight | With stand: 10.8 lb / 4.9 kg |
| Without stand: 7.2 lb / 3.3 kg | |
|
Packaging Info
|
|
| Package Weight | 14.4 lb |
| Box Dimensions (LxWxH) | 22.4 x 15.3 x 6.7" |
