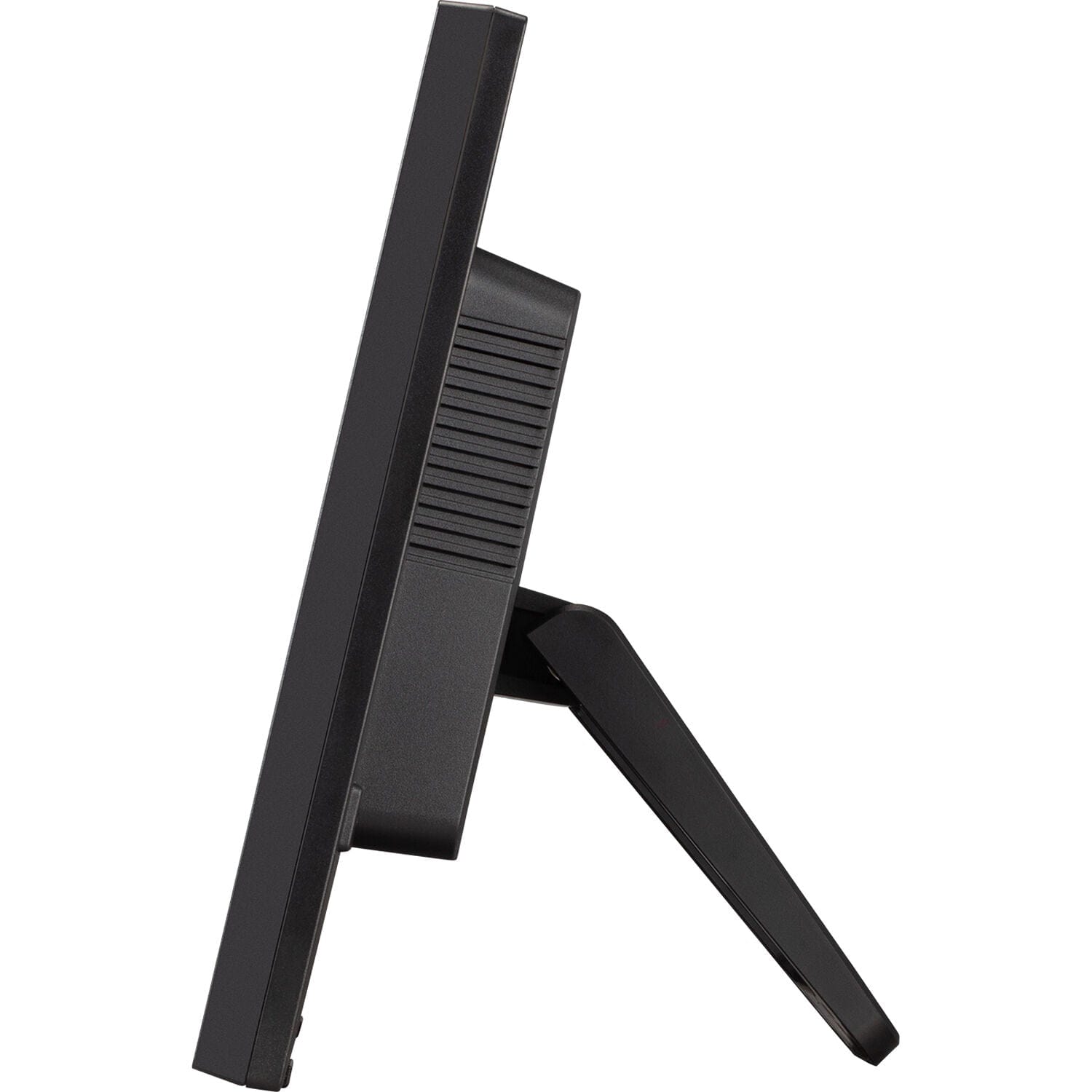

ViewSonic TD2223-S 22" 1080p 10-Point Multi IR Touch Screen with Eye Care HDMI, VGA, DVI and USB Hub - Certified Refurbished
Description

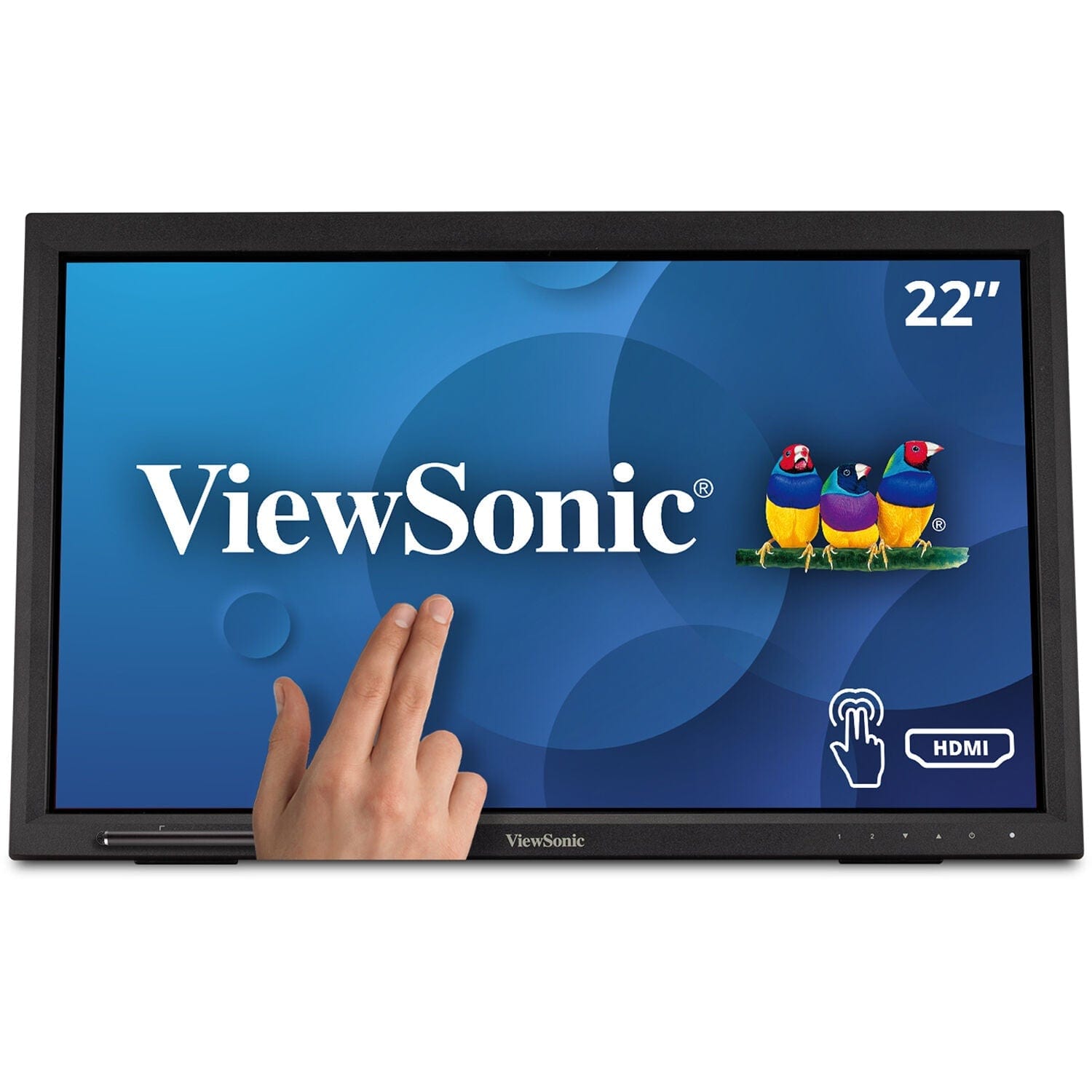

Enhance your public kiosk, point-of-service, and other commercial or retail experience with the TD2223 22" 16:9 10-Point IR Multi-Touch TN Display from ViewSonic. This durable 1920 x 1080 Full HD resolution display features infrared 10-point multi-touch technology, which allows customers to interact naturally with content by pinching, zooming, and swiping with their fingers or using digital pens. Multiple users can write and draw on the display's surface simultaneously. With its 7H hardness rating, the TD2223's durable anti-glare glass faceplate is built to withstand extended use in high-traffic and educational environments. The vTouch Software works with Windows 7 or later in addition to macOS systems.Features
- 22" Twisted Nematic (TN) Panel
- HDMI + DVI-D + VGA Inputs
- 1920 x 1080 Resolution
- 1000:1 Static Contrast Ratio
- 22° to 38° tilt
- 170° horizontal / 160° vertical viewing angles
- 2W stereo speaker system
Clear Screen
The 22" Twisted Nematic (TN) panel supports up to 16.7 million colors with a 1000:1 static contrast ratio, 250 cd/m² brightness, and 5 ms response time for clear, crisp images.
Versatile Connectivity

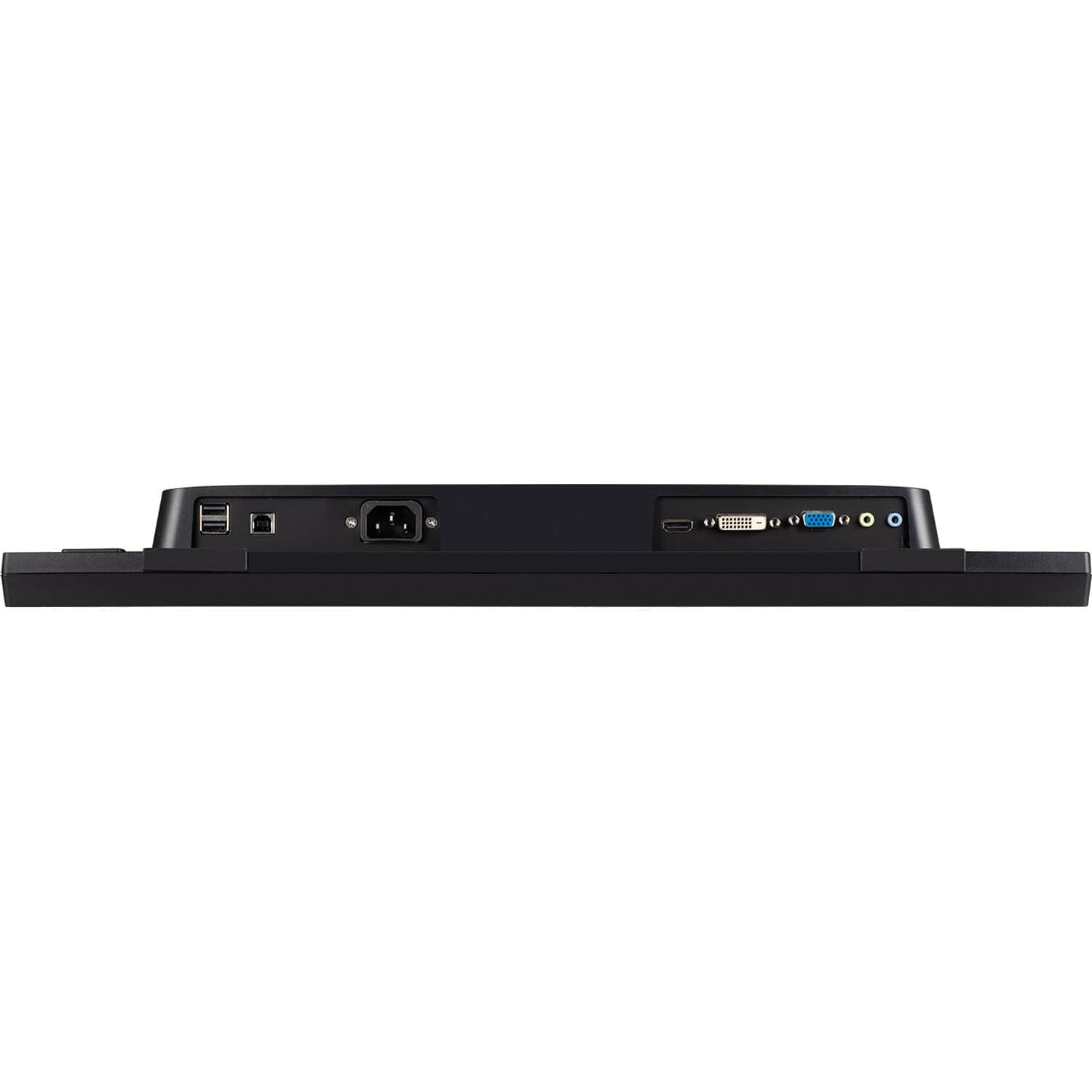

Connect your compatible Windows or Mac device to the ViewSonic TD2223 using the HDMI 1.4, DVI-D or VGA inputs. There are also separate 3.5mm audio in and out ports.
USB Hub
Peripherals such as keyboards and mice may be connected to your system through the monitor via its 2-port USB Type-A hub.
Specifications
|
Display
|
|
| Size | 22" |
| Panel Type | TN LCD |
| Touchscreen | Yes |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Pixels Per Inch (ppi) | 102 ppi |
| Finish | Glossy with Anti-Reflective Coating |
| Hardness Rating | 7H |
| Maximum Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Variable Refresh Technology | None |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | None |
| Response Time | 5 ms |
| Viewing Angle (H x V) | 170 x 160° |
| Backlight Lifespan | 30,000 Hours |
|
Inputs / Outputs
|
|
| Inputs/Outputs | 1 x VGA Input |
| 1 x DVI-D Input | |
| 1 x USB Type-B Input | |
| 2 x USB Type-A Input/Output | |
| 1 x 3.5 mm Output | |
| 1 x 3.5 mm Input | |
| Built-In Speakers | Yes, 2 x 2 W |
| Memory Card Slots | None |
| Multi-Input Support (PIP/PBP) | None |
|
Power
|
|
| Power Consumption | 15 W (Typical) |
| 19 W (Maximum) | |
| 13 W (Eco) | |
| 11 W (Eco) | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
| USB Power Delivery | Yes |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 90% |
|
Physical
|
|
| Height Adjustment | None |
| Rotation Adjustment | None |
| Swivel Adjustment | None |

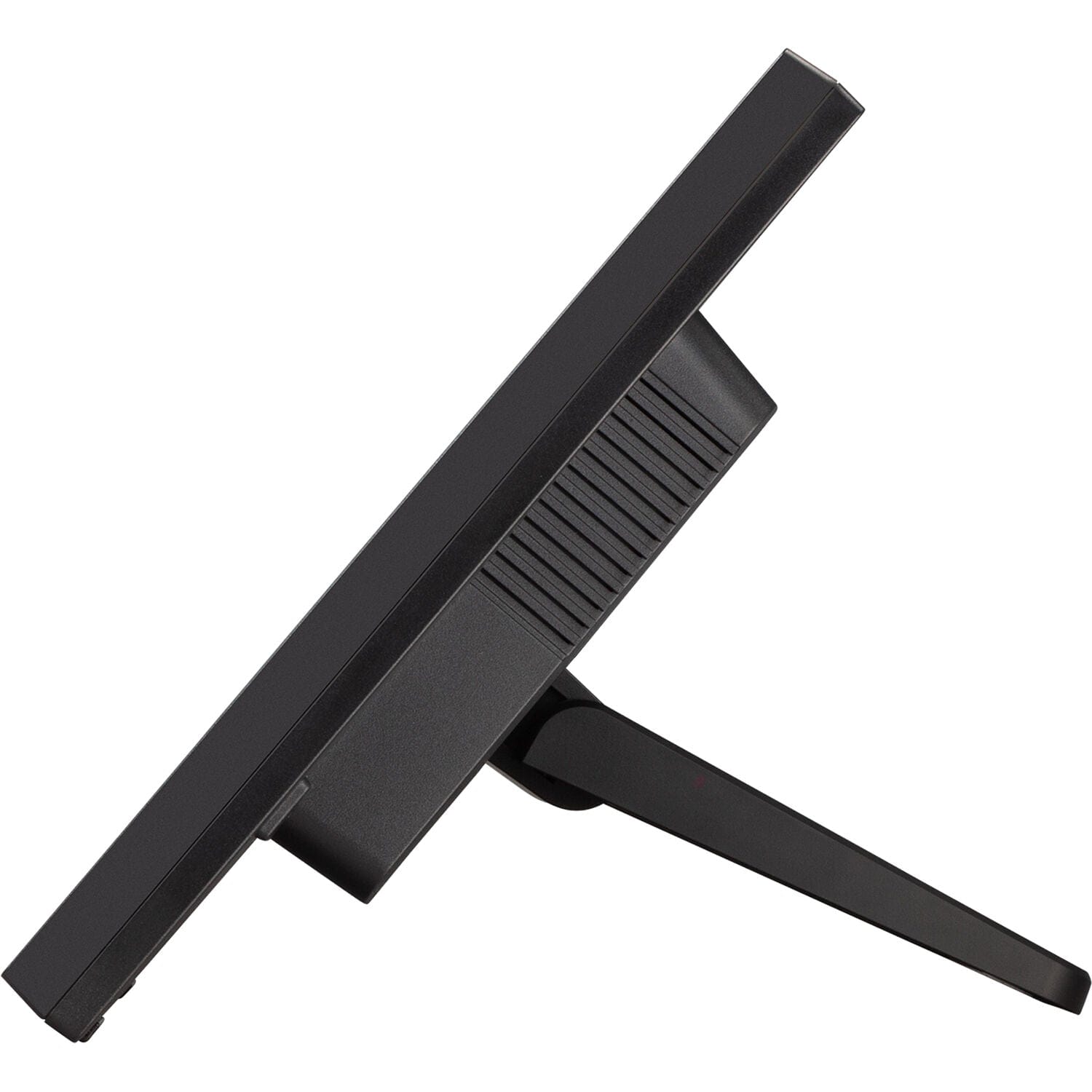

| Tilt Adjustment | -22 to 38° |
| Max Arm Extension Length | None |
| Mounting-Hole Pattern | 100 x 100 mm |
| Lock Slot | Yes, Kensington |
| Dimensions (W x H x D) | 20.5 x 13.1 x 4.0" / 521.0 x 334.0 x 101.0 mm (with Stand) |
| 20.5 x 12.5 x 2.4" / 521.0 x 318.0 x 61.0 mm (without Stand) | |
| Weight | 9.9 lb / 4.5 kg (with Stand) |
| 8.6 lb / 3.9 kg (without Stand) | |
|
Packaging Info
|
|
| Package Weight | 12.755 lb |
| Box Dimensions (LxWxH) | 22.6 x 15.7 x 6.4" |
